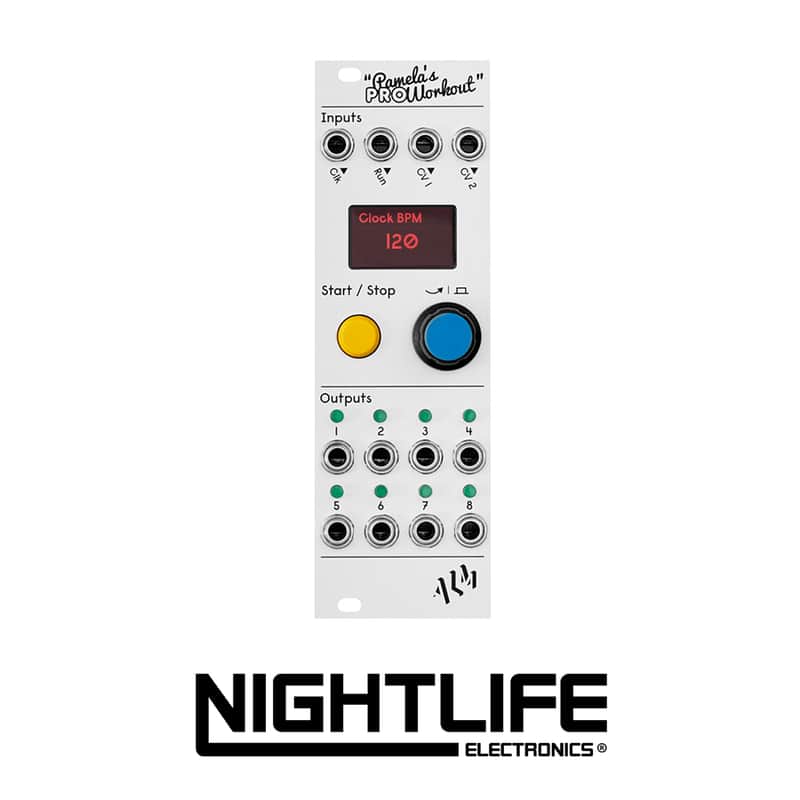

’Pamela’s PRO Workout’ is a compact programmable clocked modulation source for your Eurorack modular system. It provides 8 highly editable outputs producing various control voltage signals correlated and synced to a BPM based master clock.

Each output can provide everything from simple clocked triggers, complex rhythmic waveforms, quantised melodic patterns to random chaos with direct and assignable CV control over numerous parameters. These features together with a quick and easy to use interface provide almost limitless synced modulation possibilities in a tiny space.

Building on the original ’Pamela’s Workout’ & ’Pamela’s NEW Workout’ the evolved ’PRO’ Pam maintains the precursor’s form factor and intuitive workflow but improves and adds many new features with upgraded hardware, more CV inputs, a new full colour hi res display and rewritten software adding many new enhancements like micro grid timings and cross output modulations.

Through optional expander modules more CV input and outputs can be added with support for external non euro equipment through Midi and Din Sync outputs.

Please enjoy your next generation PRO workout!

• Width: 8HP
• Depth: 32mm
• Power: 60mA @+12V / 10mA @-12V

Features

• BPM based clock with tempo rates 10-330BPM.
• Real time intuitive EASY and quick theme-able user interface with full colour high resolutiondisplay.
• 8 Clocked voltage outputs each with independent adjustable;
  -Clock divisors and multipliers from /16384 to x192 including various non-integerfactors
  -Numerous waveform types from staples to envelopes to ratchets to random.
  -Waveform level, offset, phase and shaping control.
  -Extensive Euclidean, probability and beat based looping for pattern creation. -Cross output modulation with numerous operations.
  -Off grid ’Flex’ micro timing for swing, human and bouncing ball type timing effects.
• All output parameters assignable up to x4 built in CV inputs with individual offset, attenuationand metering.
• Per output and group saving and loading to 64 banks.
• All settings remain between power cycles.
• Voltage and direct control of clock stop/start, reset and external syncing.
• Support for expander modules for additional CV in and outputs.
• USB-C for quick and easy ‘drag and drop’ firmware updates and memory bank backupvia computer.
• Skiff friendly with reverse power protection.
• Made in England.
