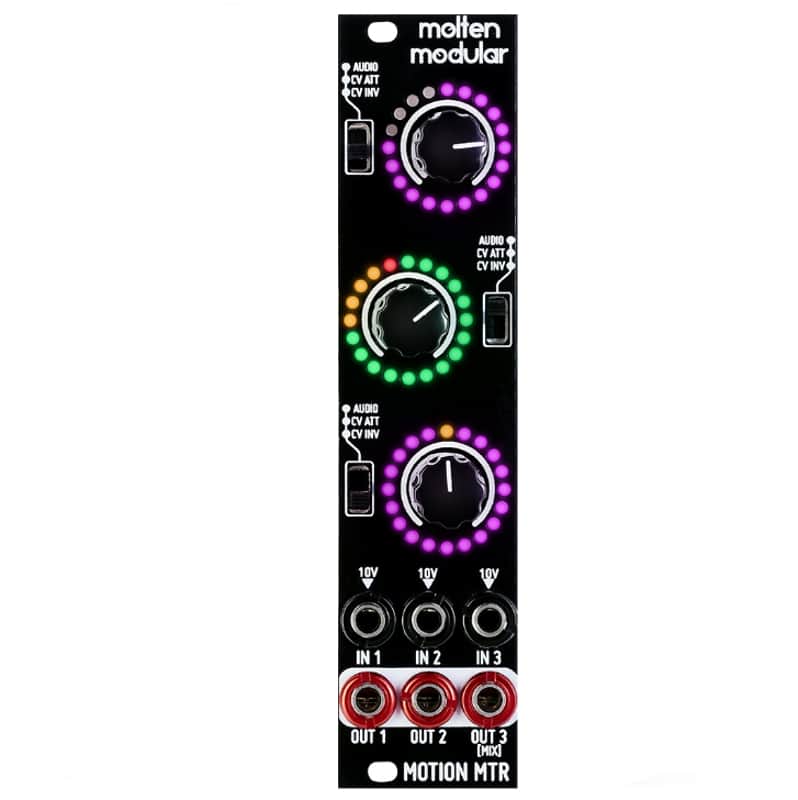

CV AND AUDIO UTILITY / REALTIME VISUALIZER

Motion MTR allow you to mix, attenuate and invert signals while having clear visual feedback of their levels.
Each channel can function as:

• Audio level control with VU meter
• CV attenuator with voltage meter
• CV inverter with voltage meter

Each input is normalled to 10v, so you can
use each of them to generate fixed voltages.
Also, the outputs of channels 1 and 2 are summed into Out 3 to be used as a mixer.
Patch it wildly to make it work as an attenuverter with offset, as a mixer, a VU meter or a combination of them all!
This module is our first collaboration with Robin Vincent from Molten modular.

EATURES

• Three channels attenuator.
• CV and inverted CV visualization.
• Audio VU meter mode.
• Normalled inputs to 10v.
• Outputs summed at OUT3.

SPECS

• Current Draw: +12v: 110 mA -12v: 43 mA
• Width: 6HP
• Depth: 30mm including power connector
• Aluminium, heat-treated front panel.
• Designed and assembled in Barcelona.
• Idea by Robin Vincent
