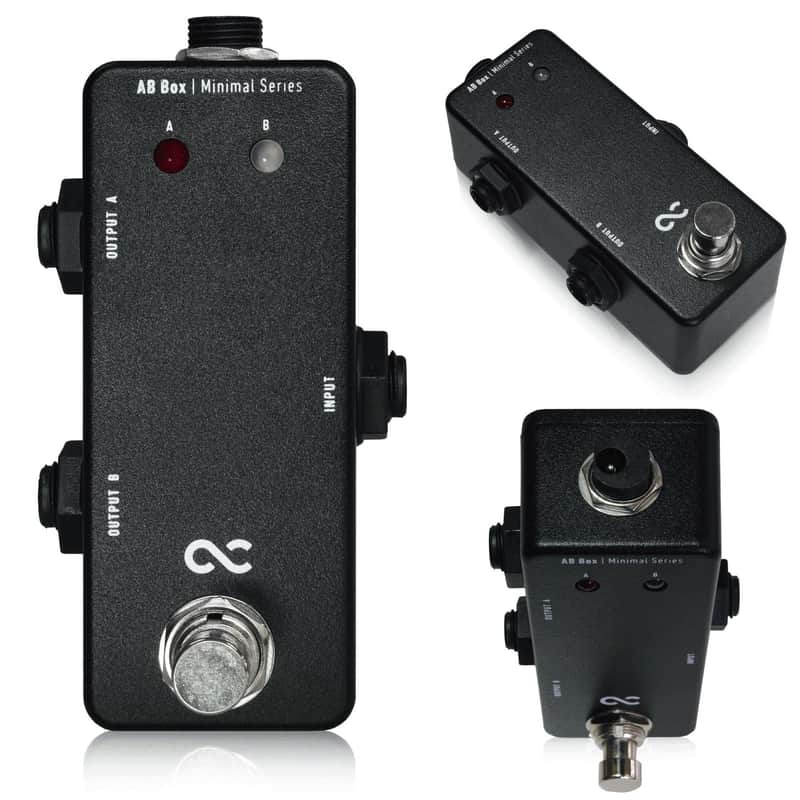

One Control Minimal Series AB Box

Works both directions 1->2 or 2->1

Amp Selector / Input Selector / Tuner Out / Mute Switch

The One Control Minimal Series AB Box lets you easily switch your guitar signal between two amps or inputs, or vice/versa. Use it to mute your sound, route to a tuner, or select which amp or guitar to play through. LEDs show your current output, and it works without power - (though power is required to operate the LEDs). Compact and lightweight, it's perfect for live performance and studio use, offering simple, reliable signal control with a 9V power option.

1) Amp Selector

The AB Box has one input and two outputs. Plug your guitar into the input and then run out from the A and B outputs to your desired destination.

2) Input Selector

The Minimal AB Box can also be used as an input selector. Just reverse the direction and into the two outputs, and out of the input. For example, if you regularly switch guitars while playing live, plug two guitars into the two outputs and run from the input to your amp. The inputs and outputs can be used in both directions.

3) Tuner Output/Mute Switch

Use the Minimal AB Box as a Mute/Tuner switch. Connect your tuner to one of the two outputs and you'll take your tuner out of your signal chain when you are playing. Even without a tuner connected to the AB Box it can act as a basic mute switch.

Specifications of the One Control Minimal Series AB Box

• Weight : 140g
• Size : 38W X 94D X 32H mm without switches/jacks
• Size : 54W X 101D X 48H mm with switches/jacks
• Power Supply : 9-volt center negative
