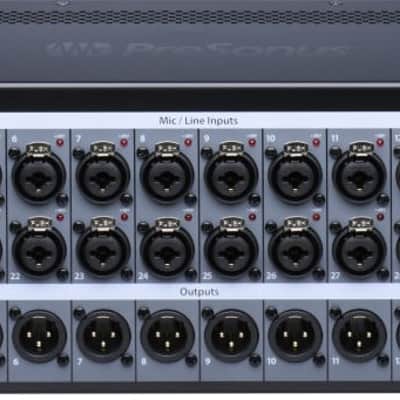

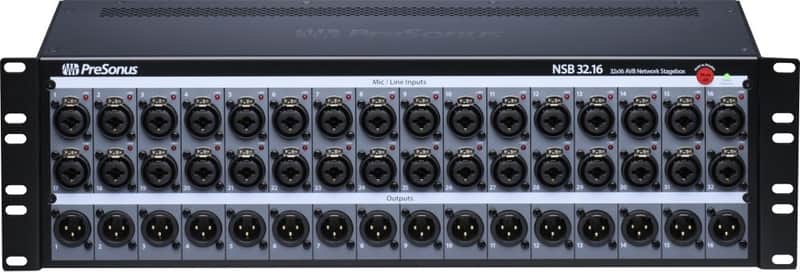

Expand the capabilities of your StudioLive Series III mixer (sold separately) with the NSB-32-16 32 input remote stage box. 32 balanced mic/line combo jack inputs feature wide dynamic range Class A XMAX preamps that capture everything from a whisper to a scream with detail and transparency. All inputs are remote controllable from a StudioLive Series III console (sold separately) or via the free UC Surface software on your favorite computer or personal device. Sixteen locking XLR outputs feed your console and a two-port AVB switch that allows daisy-chaining multiple units (sold separately) for scalability. The NSB-32-16's rugged 3-unit 19-inch chassis features multi-position rack ears for flexible installation providing access to I/O from the front or rear. It can be flush or recess mounted and is compatible with most racks and universal stage pockets.

PreSonus NSB-32-16 Features:

• Rugged 3U 19-inch rack enclosure with multi-position rack ears for flexible installation
• 32 locking, combo mic/line inputs and 16 XLR line outputs
• 32 remote-controllable XMAX preamps
• Gain compensation provides independent control from multiple mixers
• 16 locking XLR line outputs
• 2 Stereo AES3 Digital Outputs
• 2 AVB ports with locking XLR Ethernet jacks
• 64x16 AVB (32 direct input channels + 32 gain compensated input channels)
• Mute All button
• +48V indicators
• Easy setup and remote gain control from StudioLive® Series III mixers and free PreSonus® UC Surface software

PreSonus NSB-32-16 Specifications:

• Microphone Preamplifier
  • Input Type: XLR Female, balanced
  • Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
  • Input Impedance 1 kΩ
  • THD to Main Output:
  • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
  • Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
  • Gain Control Range (±1 dB): 0 dB to +60 dB
  • Maximum Input Level (unity gain): +12 dBu
  • Phantom Power (±2 VDC): 48 VDC, switchable per channel
• Line Inputs
  • Type: ¼” TRS Female, balanced
  • Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
  • Input Impedance 10 kΩ
  • THD to Main Output:
  • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
  • Maximum Input Level: +18 dBu
• XLR Outputs
  • Type: XLR Male, balanced
  • Maximum Output Level: +24 dBu, ±0.5 dBu
  • Output Impedance: 100Ω
  • Digital Audio
  • ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
  • DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
  • AVB Audio Network Ports: Locking XLR Ethernet
  • Sampling Rate: 48 kHz, 44.1 kHz
• Power
  • Connector: Locking IEC
  • Input-Voltage Range: 90 to 230 VAC (±10%)
• Physical
  • Height: 5.25” (133 mm)
  • Width: 19” (482 mm)
  • Depth: 5.25” (133 mm)
  • Weight: 10.2 lbs. (4.6 kg)
