Overview

Affordable in-ear monitoring system.
The wireless Galaxy Audio AS-950 in-ear monitor system offers reliable quality and exceptional value. The receiver features a 50mW x 2 output with RF and stereo indicator. The transmitter features L/R level display, channel LCD display with channel up and down select, stereo XLR / 1/4″ inputs and a headphone output with volume control. The Galaxy Audio AS-950 In-Ear Monitor system also offers 16 selectable UHF frequencies. The Galaxy Audio EB4 ear buds feature titanium drivers, extended bass response, aluminum, alloy construction and come standard with all WPM models. This system comes in options of a Single system, Twin Pack system, and Band Pack system. The Galaxy Audio AS-950 In-Ear Monitor system is perfect as an affordable in-ear monitor solution for the entry level user while providing a high quality sound for an economical price.

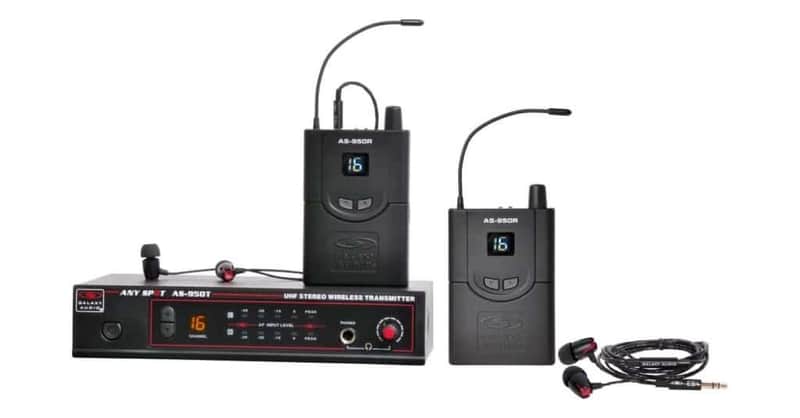

The Twin Pack and Band Pack Systems makes it easy for any duo or band to Get Personal. The Twin Pack system includes two receivers and one transmitter. The Band Pack system includes four receivers and one transmitter. They are designed to get the duo or whole band wireless in one package. The AS-950-2 and AS-950-4 will allow a duo or band to send one stereo mix to 2 or 4 individuals. Additional transmitters may be purchased at a later date to add mixes.

An unlimited number of receivers may be added at any time.

Features

• 16 Selectable UHF Frequencies
• Stereo or Mono Transmission
• Multiple Receivers can be used with 1 Transmitter
• Single/Dual Rack Mount Kit Included
• 200′ Range
• EB4 Ear Buds Included

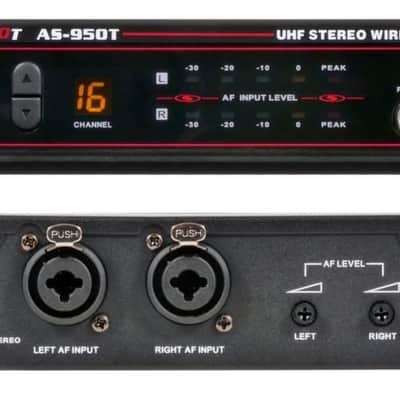

AS-950T Transmitter

• 16 Selectable UHF Frequencies
• AF L/R Indicator
• Transmits in Stereo or Mono
• Channel LCD Display
• Up/Down Channel Select
• XLR/1/4″ Combo Input
• RF Output 10mW
• Detachable 1/2 Wave BNC Antenna Included

AS-950R Receiver

• Built-in Limiter
• 50mW x 2 Earphone Out w/ Volume Control
• Channel LCD Display
• Up/Down Channel Select
• Operates on 2 AA Batteries (Alkaline or Rechargeable)
• 3.35 oz (95 g)

Band

UHF

Frequencies Range

CODE N 518 MHz - 542 MHz,

CODE P2 470 MHz - 489 MHz

Frequencies

16

Transmitter Output Level

10 mW

Operating Range

Under Typical Conditions 200' (61m)

Note: Actual range depends on RF signal absorption, reflection, interference, and battery characteristics

Audio Frequency Response

+/-3dB 50Hz - 15kHz

Total Harmonic Distortion

<1% @ 1kHz

Signal to Noise

>80dBA

Maximum Deviation Range

+/-40kHz

Dynamic Range

>90dB A-weighted

Operating Temperature

Range 14º F to 122º F (-10º C to 50º C)

Note: battery characteristics may limit this range

AS-950T TRANSMITTER

Main Frame Size

EIA STANDARD 1/2 U

Modulation Mode

FM Stereo Modulation

RF Output

10 mW

Max Audio Input Level

+6dBV

Gain Adjustment Range

40dB

Controls

Headphone Volume, Channel Up/Down, and Power Button

Indicators

LCD Display, Input Level

Audio Input

Line Level X 2, XLR / 1/4" Combo Jack

XLR Input

Impedance balanced

Pin 1: Ground (cable shield)

Pin 2: Audio +

Pin 3: No Audio -

Transmitter Antenna

Detachable 1/2 Wave BNC Antenna

Dimensions

1.73" x 8.34" x 3.77"

(44 x 212 x 96 mm) (HxWxD)

Weight

19.75 oz (560 g)

Power Requirements

12-18 V DC at 300 mA, supplied by external power supply

AS-950R RECEIVER

Audio Output Level

50 mW x 2 Earphone Out with Volume Control

Sensitivity

-94dBm for 30dB

Stereo Separation

40dB (at 1kHz)

Output Connector

1/8" (3.5 mm) Stereo Earphone Connector

Controls

Volume, Channel Up/Down

Indicators

LCD Display, Stereo LED, RF LED

Dimensions

3.54" x 2.51" x 0.9" (90 x 64 x 23 mm)(HxWxD)

Weight

3.35 oz (95 g) without batteries

Power Requirements

2 "AA" size alkaline or rechargeable batteries

Battery Life

About 12 hours (alkaline)
