New NUX NCH-3 Voodoo Vibe Mini Guitar Effects Pedal

This item is new, in box!

Orders placed before 12:00 PM Eastern Standard Time will ship same day! Orders placed after 12:00 may ship same day and if not, they will ship next day.

International orders: Please note that you will be responsible for any applicable customs fees or import taxes!

I am an Authorized Dealer, a store receipt will be included with your purchase.

Check my feedback and bid with confidence!

From NUX:

Cause I'm a voodoo child～

THE TIMELESS UNI-VIBE DELIVERED ITS HUGE 3D SOUND BY SIMULATING THE PHYSICAL ROTATING SPEAKER EFFECT.

The Voodoo Vibe (NCH-3) is a mini Uni-vibe pedal with 2 different modes,  Vibe and Chorus. You can switch modes by press and holding  the footswitch.

GORGEOUS SOUND
Voodoo Vibe was inspired by the Dunlop Uni-Vibe for its gorgeous sound easily associated with Hendrix’s bending facial expressions in his 70s stage performances.

NUX's modern-tech DSP yields a perfect combination of both worlds: analog and digital. Unlike the original Uni-vibe, now you can power the Voodoo Vibe with 9V instead of 18V. Using DSP technology, NUX is able to offer a mini pedal with Smart Tap Tempo function. And it’s easier to enhance the Chorus mode without volume drop issues in the digital world, while still retaining the same good vibes and analog sound.

Adjust the Intensity knob first:
In Chorus mode, it will change the depth of the sweeping effect. In Vibrato mode, it will change the degree of pitch modulation.

Adjust the Speed knob last:
At lower settings (counterclockwise), it will produce slow, sweep effects. At higher settings (clockwise), it will produce a rapid, shimmery pulse.

Mini but mighty! It also supports Stereo input & output. (Use 1/4” TRS cable, and choose Stereo mode.)

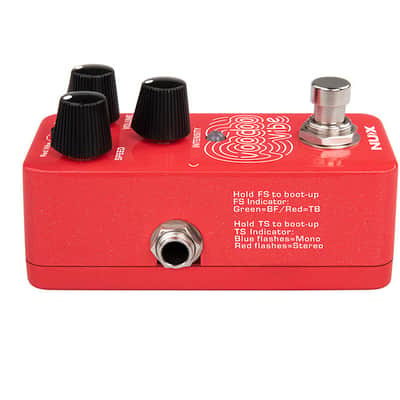

A USB-C port is provided for occasional firmware updates. Connect the USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can do firmware updates using DFU updater software.

Features:
2 models in a mini enclosure.
Chorus mode, Intensity will change the depth of the sweeping effect.
Vibrato mode, Intensity will change the degree of pitch modulation.
Smart Tap Tempo.
True-bypass or Buffer-bypass(Tails).
Supports Stereo I/O with TRS Cable.
Low power consumption. (Less than 100mA).
Analog dry signal for low noise and zero latency.

Specifications:
Input Impedance：1MΩ
Output Impedance：10kΩ
Dynamic Range: 103 dB
DSP Processing: 48KHz / 32-bit
A/D D/A Sampling Rate: 48KHz / 24-bit

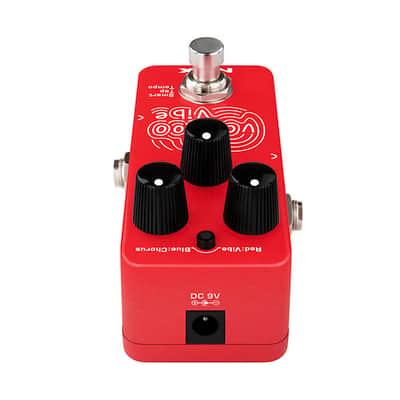

Power：9V DC(Negative tip, Optional ACD-006A adapter not included)
Current Draw：less than 100mA
Dimensions：94(L)X51(W)X53(H)mm
Weight：175g
