Graph Tech Ratio LEFT-HANDED 6L Mini 2-Pin Tuners, CHROME, #PRL-9721-LC0
This gear has sold
See similar gear from other Reverb sellers
Our users rate Reverb
GRAPH TECH RATIO 6-IN-LINE TUNING KEYS
Left-Handed Orientation
Staggered Posts
Contemporary Style Buttons

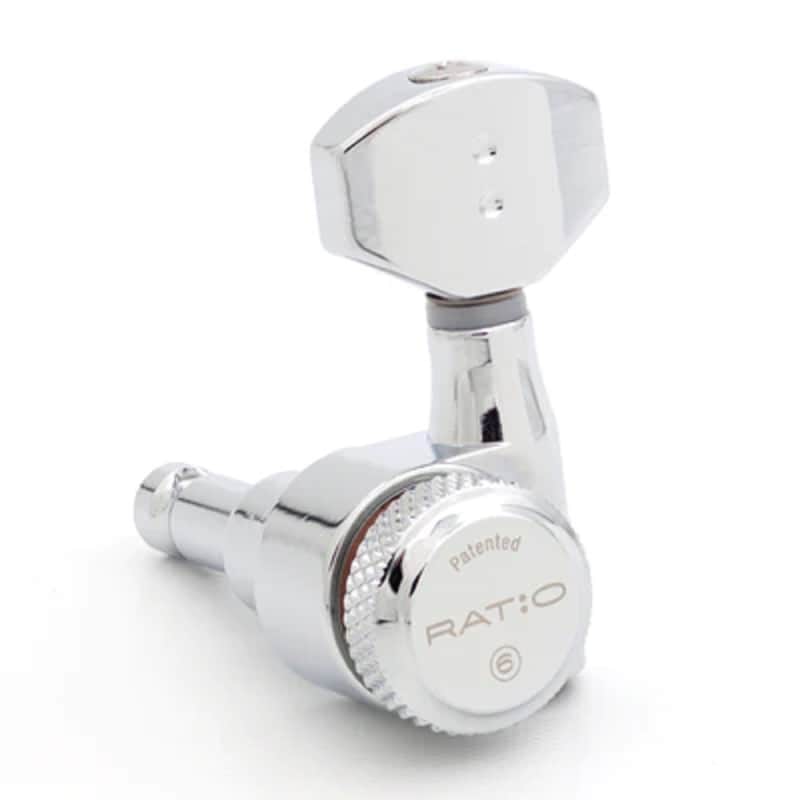

The PRL-9721 is a left-handed set of Locking RATIO® Calibrated Machine Heads for electric guitar that use 6-in-line tuners with staggered posts (eliminates the need for a string tree).
It has a two pin casing that can be used as is, or with Graph Tech’s Patented InvisoMatch Mounting Plates.
4 different sets of InvisoMatch mounting plates in brushed aluminum are included to make installation on most guitars fast and accurate by using your existing screw mounting holes.
Specifications:
Gear ratio: unique for each string position - one turn-one tone
Peg holes diameter required: 13/32" (10mm)
String post diameter: 0.236" (6mm)
String post length to string hole: 0.827” (21mm) - 0.787" (20mm) - 0.748" (19mm)
Weight per single machine head: 0.083lbs (38g)
Weight per set of six: 0.496lbs (225g)
String diameter up to 72 gauge
Includes: 6 machine heads, mounting screws and bushings, and 4 sets of aluminum mounting plates
CHROME
Manufactured by Graph Tech
#PRL-9721-LC0
