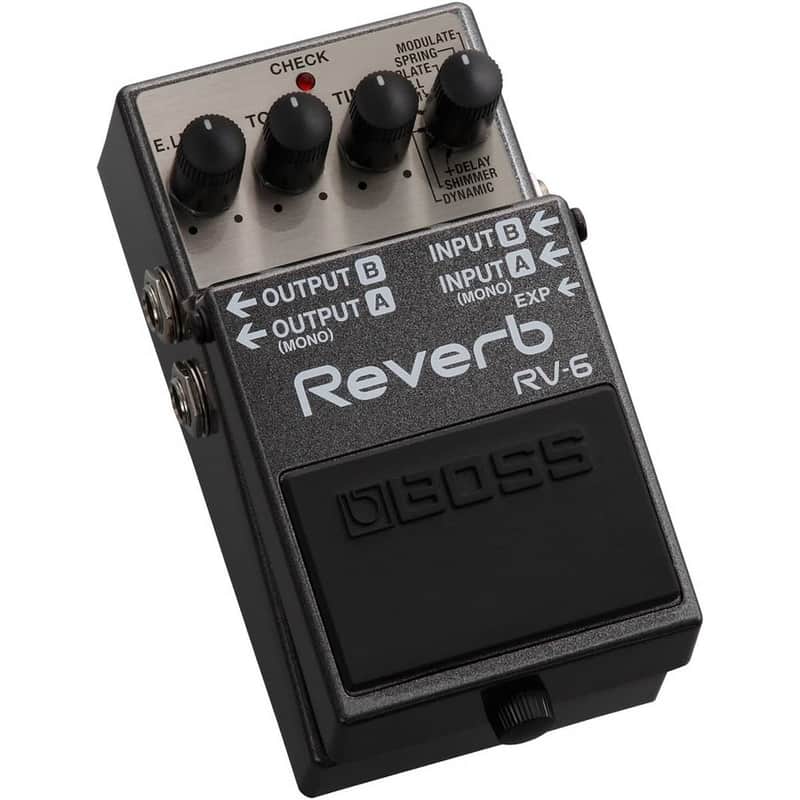

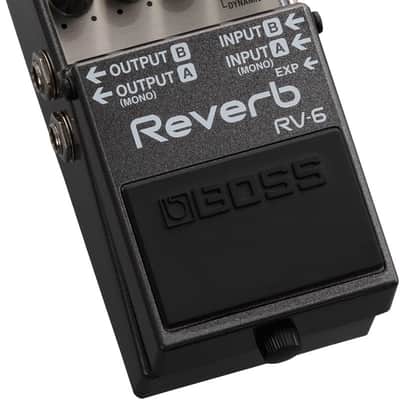

BOSS RV-6 Digital Reverb Guitar Effects Pedal

The BOSS RV-6 Reverb combines high-end studio-grade sound quality with wide-ranging versatility in a classic compact pedal format. Powered by cutting-edge BOSS DSP algorithms, the RV-6 delivers eight distinct reverb modes — from traditional room and hall simulations to the otherworldly Shimmer and performance-responsive Dynamic modes that define modern ambient playing.

The RV-6's analog dry signal path preserves the natural character of your instrument tone while the digital reverb effect is blended in seamlessly. Auto-switching jacks support both mono and true stereo operation, allowing the pedal to integrate naturally into any rig. An EXP jack accepts standard expression pedals for real-time reverb level manipulation.

Four intuitive knobs give immediate hands-on control: E.LEVEL sets the wet/dry balance, TONE shapes the tonal character of the reverb tail, TIME controls decay length, and MODE selects between the eight reverb types. The pedal runs on either a standard 9V alkaline battery or optional PSA series AC adaptor.

Key Features

• Eight Reverb Modes: Room, Hall, Plate, Spring, Modulate, Shimmer, Dynamic, and +Delay — covering every reverb application from classic amp spring to modern shimmer and reverb-plus-delay layering.
• Shimmer Mode: Unique pitch-shifted reverb effect adding sparkling harmonic overtones for ethereal reverberation ideal for ambient and post-rock styles.
• Dynamic Mode: Intelligent reverb that automatically adjusts effect depth in real time based on playing dynamics.
• +Delay Mode: Combines reverb and delay in a single unified effect for richly layered soundscapes.
• Analog Dry Signal Path: The instrument's dry signal passes through analog circuitry without digital conversion, preserving original tone integrity.
• Stereo I/O with Auto-Switching Jacks: INPUT-A/B and OUTPUT-A/B jacks enable full stereo operation; auto-switching means mono setups work automatically.
• Expression Pedal Input: Dedicated EXP jack accepts Roland EV-5, BOSS FV-500H, or FV-500L expression pedals for real-time reverb level sweeps.

Technical Specifications

• Reverb Modes: 8 (Room, Hall, Plate, Spring, Modulate, Shimmer, Dynamic, +Delay)
• Nominal Input Level: -20 dBu
• Input Impedance: 1 MΩ
• Nominal Output Level: -20 dBu
• Output Impedance: 1 kΩ
• Recommended Load Impedance: 10 kΩ or greater
• Controls: Pedal switch, E.LEVEL knob, TONE knob, TIME knob, MODE knob
• Indicator: CHECK indicator (battery check function)
• Connectors: INPUT-A (MONO) jack (1/4" TS), INPUT-B jack (1/4" TS), OUTPUT-A (MONO) jack (1/4" TS), OUTPUT-B jack (1/4" TS), EXP jack (1/4" TRS), AC adaptor jack (DC 9V)
• Power Supply: Alkaline battery (9V, 6LR61) or AC adaptor (PSA series, sold separately)
• Current Draw: 95 mA
• Battery Life (Alkaline): Approximately 3 hours continuous use
• Width: 73 mm (2-7/8 inches)
• Depth: 129 mm (5-1/8 inches)
• Height: 59 mm (2-3/8 inches)
• Weight (with battery): 450 g (1 lb)
• Included Accessories: Alkaline battery (9V, 6LR61), safety and important notes leaflet
• Compatible Expression Pedals: Roland EV-5, BOSS FV-500H, FV-500L
