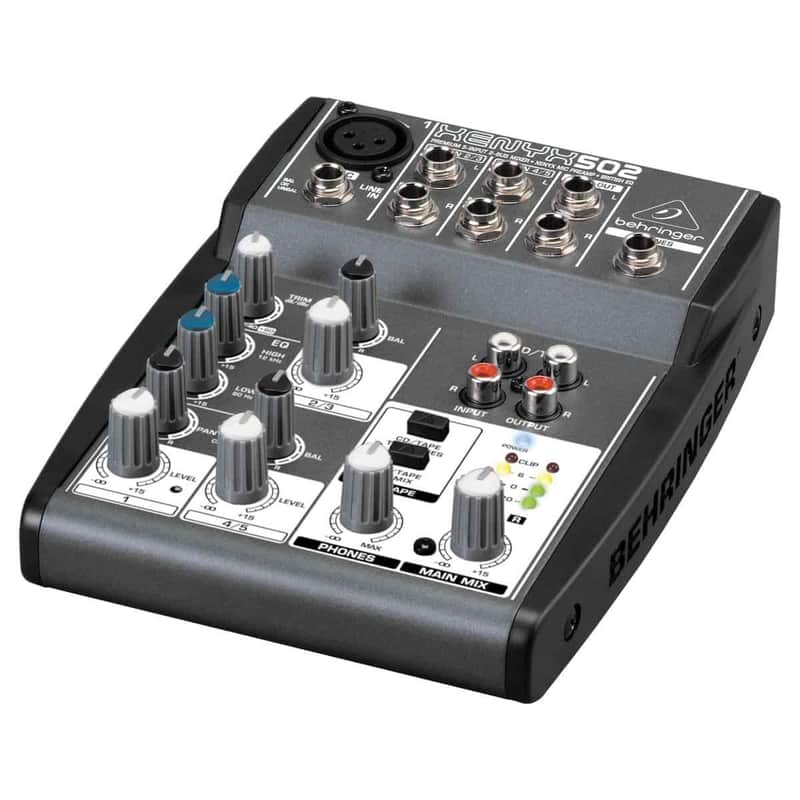

Got a solo gig at the local coffee shop? Need to make a quick public announcement? Simple sound calls for the simply superb XENYX 502, the BEHRINGER mixer with everything you need to give an intimate setting incredible sound. The ultra-compact XENYX 502 mixer’s 5 Inputs (1 mic, 2 stereo) allow you to effortlessly achieve premium-quality sound, thanks to the studio-grade, phantom- powered XENYX Mic Preamp and ultra-musical BrIt'sh channel EQ.

All XENYX mixers have one thing in common – great-sounding, high headroom XENYX mic preamps. These state-of-the-art mic pres represent a major step in the evolution of audio technology – and they can easily hold their own, even when compared to the most expensive stand-alone mic preamps. XENYX preamps offer a staggering 130 dB of dynamic range, with a bandwidth that extends from below 10 Hz to well above 200 kHz. Armed with these outstanding mic preamps, XENYX mixers provide such transparent, crystal-clear performance you just might think someone upgraded your mics while you weren’t looking.

The 5-input, 2-bus XENYX 502 with XENYX mic preamp can accommodate either a dynamic or condenser microphone. The 2-band BrIt'sh EQ is famous for its warm, musical sound. Play music between sets via the RCA CD/Tape Inputs (main mix or control room/phones assignable) and record your performance to an outboard recording device via the RCA outputs.

Technical Specifications

[Mono Inputs]
Microphone Inputs (XENYX Mic Preamp)
Type:
XLR connector, electronically balanced, discrete input circuit
Mic E.I.N. (20 Hz – 20 kHz)
@ 0 ohm source resistance:
-134 dB / 135.7 dB A-weighted
@ 50 ohm source resistance:
-131 dB / 133.3 dB A-weighted
@ 150 ohm source resistance:
-129 dB / 130.5 dB A-weighted
Frequency Response
<10 Hz - 150 kHz:
-1 dB
<10 Hz - 200 kHz:
-3 dB
Gain range:
+10 dB to +60 dB
Max. input level:
+12 dBu @ +10 dB GAIN
Impedance:
approx. 2.6 k ohm balanced
Signal-to-noise ratio:
110 dB / 112 dB A-weighted
(0 dBu In @ +22 dB GAIN)
Distortion (THD + N):
0.005% / 0.004% A-weighted
[Line Input]
Type
1/4 inch TRS jack, electronically balanced
Impedance
approx. 20 k ohm balanced,
approx. 10 k ohm unbalanced
Gain Range
-10 dB to +40 dB
Max. Input Level
+22 dBu @ 0 dB GAIN
[Fade-Out Attenuation (Crosstalk Attenuation)]
Main Fader Closed
90 dB
Channel Muted
89.5 dB
Channel Fader Muted
89 dB
Frequency Response (Mic In → Main Out)
<10 Hz - 90 kHz
+0 dB / -1 dB
<10 Hz - 160 kHz
+0 dB / -3 dB
[Stereo Inputs]
Type
1/4 inch TRS jack, electronically balanced
Impedance
approx. 20 k ohm
Max. Input Level
+22 dBu
[Equalizer]
EQ Mono Channels
LOW
80 Hz / ±15 dB
MID
2.5 kHz / ±15 dB
HIGH
12 kHz / ±15 dB
EQ Stereo Channels
LOW
80 Hz / ±15 dB
MID
2.5 kHz / ±15 dB
HIGH
12 kHz / ±15 dB
[Send/Return]
Aux Sends
Type:
1/4 inch TS jack, unbalanced
Impedance:
approx. 120 ohm
Max. output level:
+22 dBu
Stereo Aux Returns
Type:
1/4 inch TRS jack, electronically balanced
Impedance:
approx. 20 k ohm balanced /
approx. 10 k ohm unbalanced
Max. input level:
+22 dBu
[Outputs]
Main Outputs
Type:
1/4 inch TRS jack, unbalanced
Impedance:
approx. 120 ohm unbalanced
Max. output level:
+22 dBu
Control Room Outputs
Type:
1/4 inch TS jack, unbalanced
Impedance:
approx. 120 ohm
Max. output level:
+22 dBu
Headphones Output
Type:
1/4 inch TRS jack, unbalanced
Max. output level:
+19 dBu / 150 ohm (+25 dBm)
Main Mix System Data (Noise)
Main mix @ -infinite, channel fader @ -infinite
-106 dB / -109 dB A-weighted
Main mix @ 0 dB, channel fader @ -infinite
-95 dB / -98 dB A-weighted
Main mix @ 0 dB,
-84 dB / -87 dB A-weighted, channel fader @ 0 dB
[Power Supply]
Power consumption
13 W
Adapter
BEHRINGER PSU MX3UL
Mains Voltage
120 V~, 60 Hz
[Physical/Weight]
Dimensions (HxWxD)
1.9 x 5.3 x 7 inch
Weight (Net)
2.6 lbs / 1.2 kg
