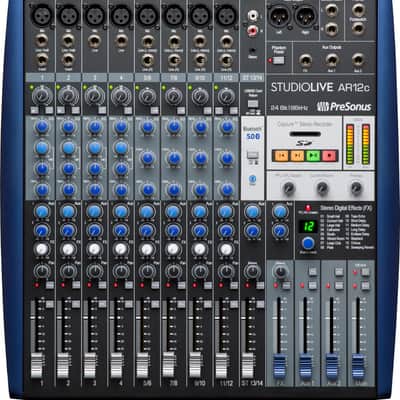

PreSonus® StudioLive® AR12c Analog Mixer...

Don’t let the classic analog mixer design fool you—the StudioLive® AR12c was built to record.
Featuring a pristine analog front end with eight high-gain XMAX mic preamps and an 14x4, 24-bit,
96 kHz, USB-C™-compatible USB 2.0 audio interface, the StudioLive AR12c’s hybrid design makes
it simple to mix and record. Add in a musical 3-band analog EQ, mic/line boost for low-level sources
including vintage synths, all-new digital effects with rich reverbs and lush delays, Bluetooth® connectivity,
and a stereo SD recorder... and you have a mixing and recording powerhouse that fulfills the needs of both
modern musicians and content creators.

Features:
Performance
DIGITAL AUDIO BIT DEPTH 24
DIGITAL AUDIO DYNAMIC RANGE 105 dB (A-Weighted, 48 kHz)

Inputs
INSTRUMENT INPUT CONNECTION TYPE 1/4” TS Female, Unbalanced, Hi-Z
INSTRUMENT INPUTS DYNAMIC RANGE > 108 dB (Mid Gain, Unweighted)
INSTRUMENT INPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +0.5/-1.5 dB
INSTRUMENT INPUTS GAIN RANGE 43 dB, ±1 dB (+12 to +55 dB)
INSTRUMENT INPUTS MAXIMUM LEVEL +9 dBu ±1.0 dB (Minimum Gain, 1 % THD + N)
LINE INPUT CONNECTION TYPE 1/4" TRS, Balanced
LINE INPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +0.5/-1.5 dB
LINE INPUTS GAIN RANGE Mono: 40 dB, ± 1 dB, Stereo: 0 dB or +10 dB
LINE INPUTS IMPEDANCE 10 kΩ (Balanced)
LINE INPUTS MAXIMUM LEVEL +26 dBu ±1.0 dB (Minimum Gain, 1 % THD + N)
LINE INPUTS SIGNAL TO NOISE RATIO 85 dB (+4 dBu)
LINE INPUTS TOTAL HARMONIC DISTORTION <0.01% (1 kHz, -1 dBFS, A-Weighted)
MICROPHONE PREAMP COMMON MODE REJECTION RATIO 65 dB (1 kHz, +55 dB Gain)
MICROPHONE PREAMP EQUIVALENT INPUT NOISE <128 dBu
MICROPHONE PREAMP FREQUENCY RESPONSE 20 Hz to 20 kHz, +0.5/-1.5 dB
MICROPHONE PREAMP GAIN CONTROL RANGE 43 dB (+12 to +55 dB)
MICROPHONE PREAMP INPUT IMPEDANCE 1 kΩ
MICROPHONE PREAMP MAXIMUM INPUT LEVEL +9 dBu ± 1.0 dB (Unity Gain)
MICROPHONE PREAMP SIGNAL TO NOISE RATIO 94 dB (+4 dBu)
MICROPHONE PREAMP TOTAL HARMONIC DISTORTION <0.01% (Minimum Gain, A-Weighted)

Outputs
HEADPHONE OUTPUTS DYNAMIC RANGE >103 dB (A-Weighted)
HEADPHONE OUTPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +0.5/-1.5 dB
HEADPHONE OUTPUTS MAXIMUM OUTPUT 150 mW /Channel at 60 Ω
HEADPHONE OUTPUTS TOTAL HARMONIC DISTORTION <0.01% (Bandwidth 20 Hz - 20 kHz, -1 dBFS, Unweighted)
LINE OUTPUTS CONNECTION TYPE 1/4" TRS, Balanced
LINE OUTPUTS MAXIMUM OUTPUT LEVEL +18 dBu
LINE OUTPUTS OUTPUT IMPEDANCE 100 Ohms
MAIN AND LINE OUTPUTS DYNAMIC RANGE >108 dB (A-wtd)
MAIN AND LINE OUTPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +0.5/-1.5 dB
MAIN AND LINE OUTPUTS TOTAL HARMONIC DISTORTION <0.01% (Bandwidth 20 Hz - 20 kHz, -1 dBFS, Unweighted)

Hardware
DIGITAL AUDIO USB RECORDING PORT USB 2.0
