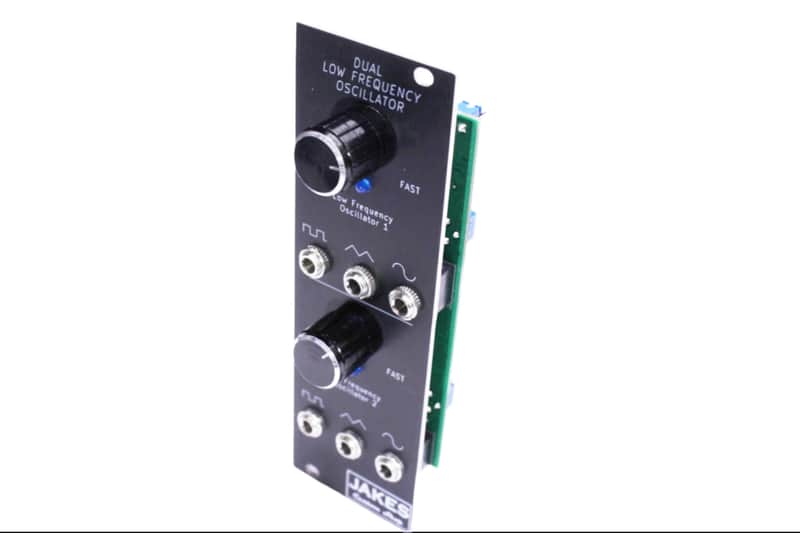

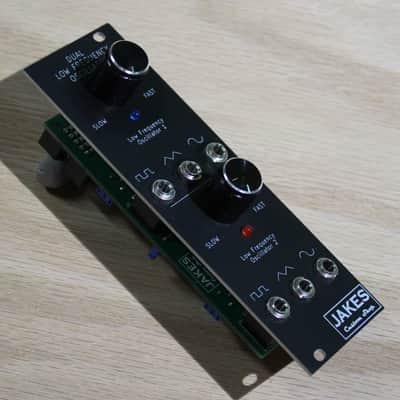

The Jake’s Custom Shop Dual Low Frequency Oscillator packs two LFOs in one module each with 3 outputs. Each LFO has a square wave, triangle wave, and sine wave output. An internal jumper allows two frequency speed modes. Trimpots are included for fine tuning of the sine wave.
-10-Pin shrouded IDC.
-Meets Doepfer Eurorack standard
-Adjustable output frequency
Low Current Draw:
+12V: 28.1mA
+5V: 0mA
-12V: 26.5mA
Square Wave output [V]: -12 (min) and +12 (max)
Triangle Wave output [V]: -7 (min) and +7 (max)
Sinewave output [V]: -6 (min) and +6 (max)
Frequency - Slow [Hz]: 1/120 (min) and 2 (max)
Frequency - Fast [Hz]: 1/10 (min) and 24 (max)
PCB dimensions: 39 x 106.5 mm
Panel dimensions: 40.3 x 128.5 mm (8HPX3U)
Depth of panel: 25 mm
Datasheet is available on my website
