Stereo/Mono Output Configuration Pedal w/ Master Kill (Mute) switch for use with A/B Amp Switcher

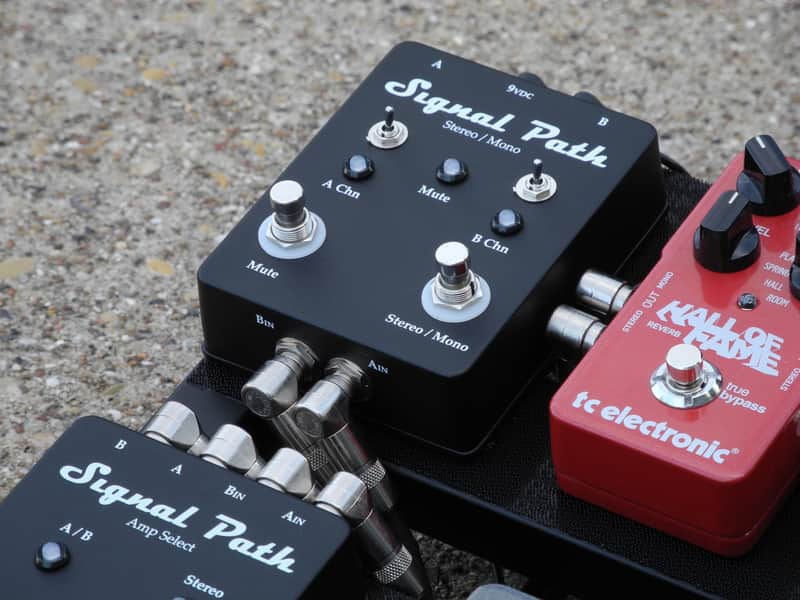

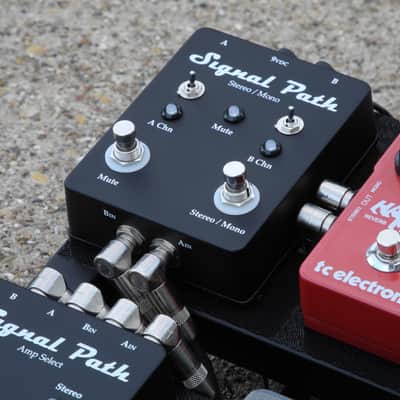

Stereo/Mono Output Configuration Pedal

 Primary Features

- Designed to operate in Stereo, Dual Amp, or Mono mode

- Master Kill (Mute) foot switch

- Individual Mute toggle switches for each Output Channel

-  Expands Amplifier configuration options when used with the Amp Select pedal

- Designed and hand built in the USA

- Full documentation at signalpathpedals . com



Product Description

The Stereo/Mono output configuration pedal is typically used as the last pedal in the signal chain, just prior to feeding one or two guitar amplifiers. The primary feature of this pedal is that it can be easily configured, using the Stereo/Mono foot switch, to operate in Stereo (two amps driven from separate input sources Ain, Bin), Dual Amp (two amps – driven from one input source via the summation of Ain and Bin), or Mono (one amp driven from a summation of Ain and Bin).

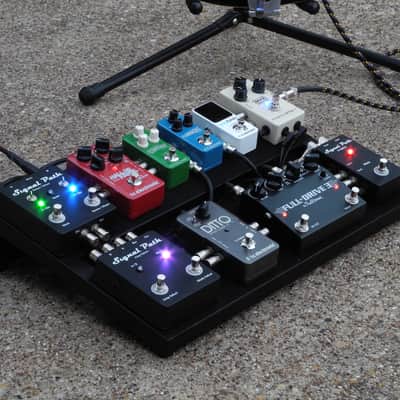

The Stereo/Mono output configuration pedal allows your pedal board to be primarily architected for Stereo or Dual Amp operation, but in situations where only one amplifier is available (such as a small gig session for example), the pedal board can be easily setup for Mono operation but where the output to that amplifier is still derived from both input sources (Ain and Bin combined). In other words, all of the effect pedals on the pedal board are still accessible in Mono mode even though the Pedal board has been primarily architected and wired for Stereo operation. In short, the Stereo/Mono pedal will expand your pedal board functionality.

In addition to the above, when the Stereo/Mono output configuration pedal is used in combination with the Amp Select pedal, the pedal board is capable of operating in seven different amplifier configurations. For a complete description of all the amplifier configurations possible when both pedals are used, please consult the Amp Select documentation at signalpathpedals . com

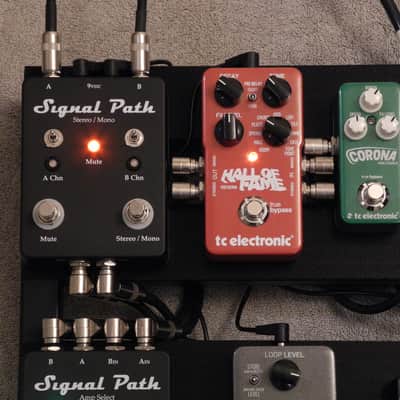

A second major feature of this pedal is that it provides a master kill (Mute) function. When activated via the foot switch, both output channels will be Muted. In addition, each output can be individually switched on/off via the two toggle switches. This feature is especially useful when balancing amplifier volume levels during stereo rig setup or when individually adjusting the tone/effects in each output channel. Effectively, the toggle switches are like having an amplifier standby switch located on the pedal board.

A third feature of the Stereo/Mono pedal is two 9vdc Boss style connectors (center ground) are provided for powering the LED status lights, but only one is required. Either connector can be used to power the LED’s which leaves the other connector free to pass on 9vdc to another pedal if desired.

For a complete description of the Stereo/Mono pedal, including typical pedal board usage, please consult the Signal Path Pedals web site at signalpathpedals . com
