Engineered for speed, comfort and full-throttle attitude, the reimagined 5150 Series Deluxe is an iconic blast from the past that blends both throwback and modernized features.

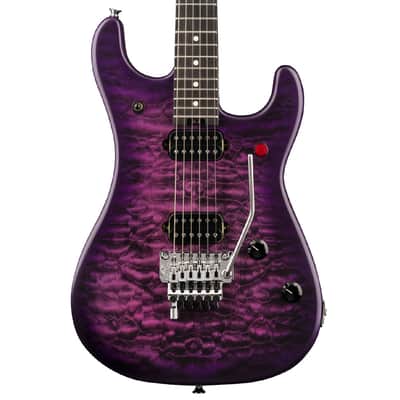

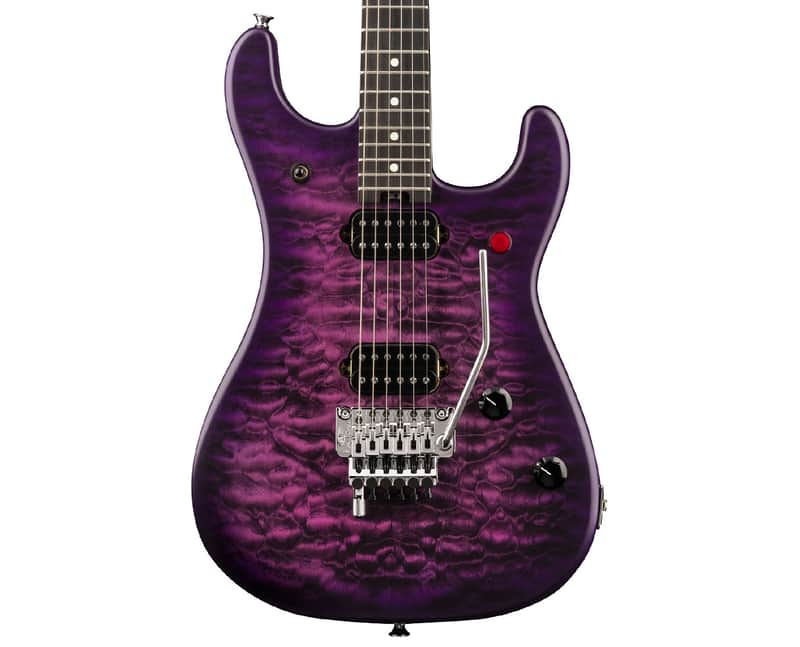

Like its predecessor, the 5150 Deluxe QM features a modified Strat-style basswood body with a quilt maple top and deeper upper body curve. The graphite-reinforced bolt-on quartersawn maple neck features a comfortable modified “C” profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and color matched “hockey stick” headstock with EVH logo decal. Built for smooth and speedy playability, the 12”-16” compound radius ebony fingerboard has 22 jumbo frets and cream dot inlays.

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 Deluxe is outfitted with an HH pickup configuration controlled by a three-way toggle on the upper bout. The custom designed EVH Wolfgang Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucking neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects — think “You Really Got Me.”

Decked out with a “dive-bomb” certified EVH-branded top-mount Floyd Rose bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna for switching back and forth from drop-D to standard tuning in an instant.

A stylized modern spin on a fan favorite, the 5150 Deluxe is sure to stun with its rippling quilt maple top dressed in a vivid Purple Daze finish with all-chrome hardware, including the EVH-branded Gotoh tuning machines.

Features

• 25.5” scale length
• Modified Strat-style basswood body with quilt maple top and deeper upper body curve
• Graphite-reinforced bolt-on quartersawn maple neck
• Neck is carved and rolled to Eddie Van Halen’s specifications with hand-rubbed urethane back finish
• 12”-16” compound radius ebony fingerboard with 22 jumbo frets and cream dot inlays
• Convenient heel-mount truss rod adjustment spoke wheel
• Direct mount EVH Wolfgang bridge and neck humbucking pickups
• Top-mount EVH-branded Floyd Rose bridge and R3 locking nut
• EVH D-Tuna
• Three-way toggle switch, kill switch, volume control (500K EVH Bourns Low Friction Pot) with treble bleed circuit and tone control (250K EVH Bourns High Friction)
• Available in Purple Daze with all-chrome hardware, including the EVH-branded Gotoh tuning machines
• Color matched EVH hockey stick headstock with EVH logo decal
• Auxillary Switching : Kill Switch
• Body Finish : Satin Urethane
• Body Material : Basswood
• Body Shape : 5150
• Bridge Pickup : Direct Mount EVH Wolfgang Humbucking
• Bridge : Top-Mount EVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna
• Case/Gig Bag : Optional EVH Striped Hardshell (p/n 022-6100-506); Optional EVH Black Gig Bag (p/n 022-1512-006)
• Color : Purple Daze
• Configuration : HH
• Control Knobs : Black Knurled with White Indicator
• Controls : Volume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH Bourns High Friction Pot)
• Fingerboard Material : Ebony
• Fingerboard Radius : 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fret Size : Jumbo
• Hardware Finish : Chrome
• Headstock : EVH Hockey Stick
• Neck Finish : Hand-Rubbed Satin Urethane
• Neck Material : Quartersawn Maple
• Neck Pickup : Direct Mount EVH Wolfgang Humbucking
• Neck Plate : 4-Bolt Standard
• Neck Shape : EVH Modified "C" Backshape
• Number of Frets : 22
• Nut Material : Floyd Rose R3 Locking
• Nut Width : 1.685" (42.8 mm)
• Orientation : Right-Hand
• Position Inlays : Cream Dot
• Strings : EVH Nickel Plated Steel (.009-.042 Gauges)
• Switching : 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
• Tremolo Arm : Floyd Rose 1000 Series Locking
• Tremolo Block : Brass
• Truss Rod Nut : Heel-Mount Truss Rod Adjustment Wheel
• Truss Rod Wrench : 2.5 mm Hex
• Tuning Machines : EVH-Branded Gotoh
