Switchcraft MTP48K3BPNS 3 1/2" Unwired IDC Backpanel

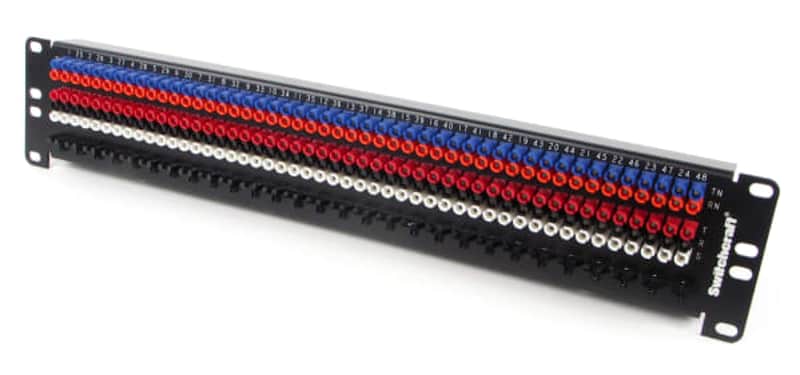

The MTP48K3BPNS is a rack mount backpanel that provides the end user with the flexibility of configuring their own custom patchbay or use as central patching points. It consists of 48 sets of tip, ring, sleeve PPT terminals mounted in a 3.5-inch (2RU) steel rackmount. The PPTs have IDCs on both sides and a rugged cable tray is included.

Switchcraft MTP48K3BPNS Includes:

• Unwired IDC Backpanel

Switchcraft MTP48K3BPNS Features:

• Allows for custom patchbay configurations or central patching points
• PPTs have IDCs on both sides for easy installation
• Rugged, attractive black epoxy-finished steel chassis
• Cable trays allow for mounting and securing terminated cable

Switchcraft MTP48K3BPNS Specifications:

• Panel Thickness: .093”
• Panel Height: 3.5” (2RU)
• Panel Width: 19”
• IDCs per Row: 48
• Mounting hole Diameter: .187”
• Mounting Hole Spacing: .340” horizontal x .275: vertical
• Wire Size: #22, 24, 26 AWG stranded or solid (IDC termination)
• Materials:
  • Contacts: High strength copper alloy
  • Housing: Thermoplastic (UL 94V-0)
  • Backpanel: Black epoxy-coated C.R.S
  • Cable Tray: Black epoxy-coated C.R.S
