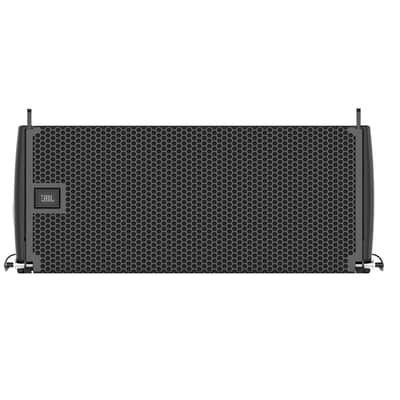

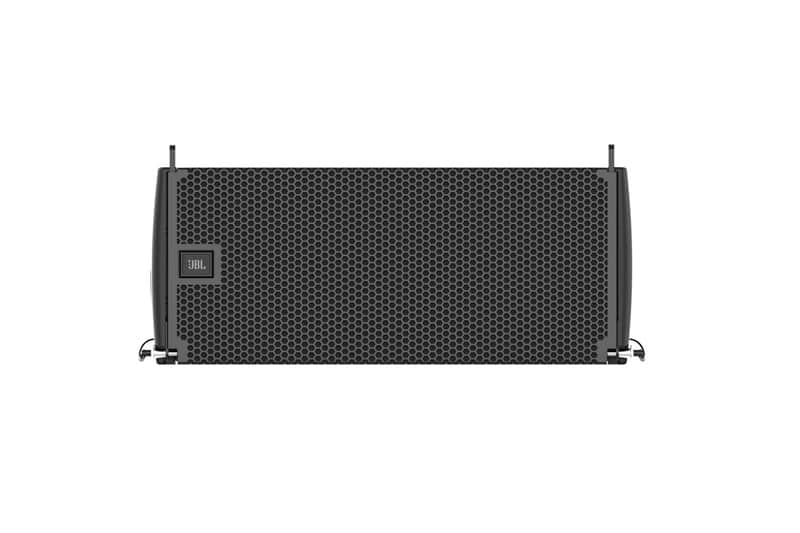

Legendary JBL performance combined with the scalability you need, and the portability you want, come together in the new SRX900 series. The SRX906LA 2-way dual 6.5-inch powered line array speaker features a 120-degree coverage pattern, 600 watts of onboard power, and produces an impressive 134 dB SPL (Sound Pressure Level). The marriage of coverage and power makes the 906LA an ideal system component for a variety of small to mid-sized applications.

Integrated DSP (Digital Signal Processing) powered by a full-featured software package gives you system control via Windows, macOS, and iPad OS, whatever works best for you! Go ahead, push your 906LA to the edge. Internal LevelMax limiting is provided to keep it from going over, protecting your investment.

The compact, lightweight enclosure is engineered from composite materials to deliver night in, night out reliability that won't weigh you down. The SRX900 series' innovative 3-point rigging system and complete set of available accessories (sold separately) give you the options you need.

Whether you tour, rent, or install, make it JBL with the SRX906LA.

JBL SRX906LA Applications:

• Rental houses
• Fixed installation
• Touring musicians
• DJs

JBL SRX906LA Features:

• High-performance, high-density system solution in a truck-pack friendly format
• High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
• Built-in, passively cooled Class D amplification with a universal power supply
• Dual Ethernet ports with Neutrik etherCON connectors
• Supports HARMAN HControl Ethernet
• User-controllable DSP
• LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
• Rear-panel LCD provides complete access to control features
• Reinforced composite loudspeaker enclosures
• Innovative three-point rigging system

JBL SRX906LA Specifications:

• Frequency Range (-10dB): 63 Hz-17 kHz (array preset)
• Coverage Pattern: 120 degrees nominal (500 Hz-16 kHz)
• Max SPL: 134 dB
• System Type: Line Array, two-way active
• Amplifier Design: Class-D
• Continous Power Rating: 600 Watts LF: 400 Watts HF: 200 Watts
• LF Driver: (2) JBL 2186G, 6.5 in diameter, dual 2.0 in voice coil, neodymium Differential Drive®
• HF Driver: (1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil
• Inter-Enclosure Angles: 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
• Enclosure: Polypropylene, four integral recessed handholds
• Dimensions (H x W x D): 243 mm x 507 mm x 420 mm
• (9.5 in x 19.9 in x 16.5 in)
• Net Weight (each): 16.8 kg (37 lbs)
