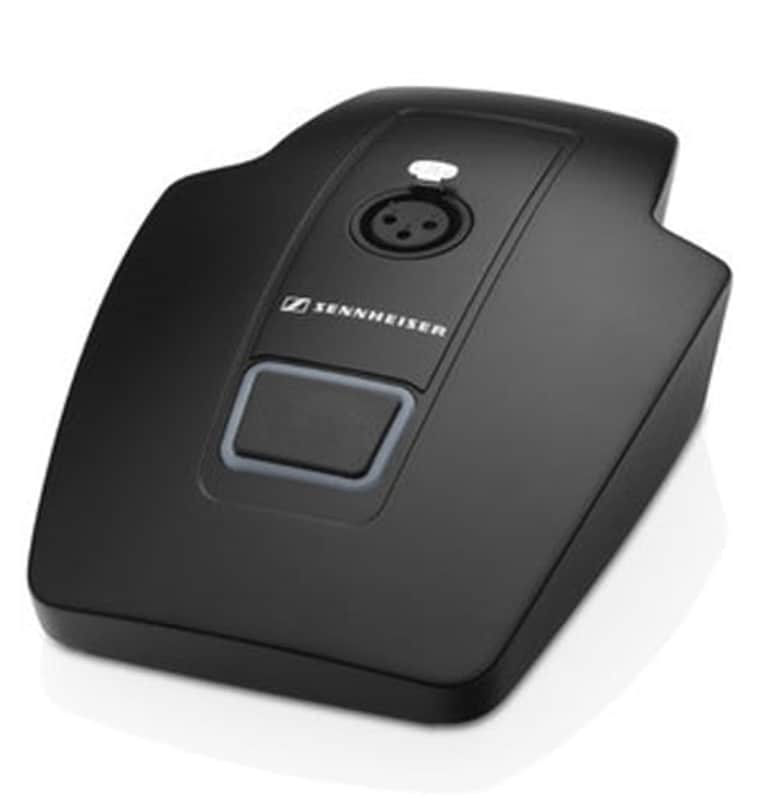

Sennheiser MAT133S Table Stand for Sennheiser MZH Series Gooseneck Microphone - BLACK

The rugged MAT133-S table stand is ideal for use with the MZH series goosenecks. The convenient programmable microphone button (On, On/Off PTT, PTM) features a bi-color light ring for status indication. TTL logic enables integration with media or camera control systems.

Includes

• 1 table stand
• Quick guide

Features

• Designed for use with MZH series goosenecks
• Integrated mic button with bi-color light ring and programmable modes
• TTL logic out for media/camera control systems
• Available in black (B) and Nextel gray (NX)
• Made in Germany
• Programmable Microphone Modes:
  • On
  • On/Off
  • Push to talk
  • Push to mute

Specifications

• Dimensions (WxDxH): 4.72" x 6.69" x1.69"
• Connector:
  • Mic in: XLR-3F
  • Mic out: XLR-3M
  • Logic: Clip contact for logic, Pin assignment: Trigger signal at logic connector: Logic in (external LED control), Ground, Logic out (switch signal)
• Weight: 2.67lb
• Phantom powering: P24 - P48V
• Operating temperature: 14° to 122°F
• Current consumption: 3.7mA
• Output voltage:
  • Logic out: High level output voltage >2.4V, Low level output voltage< 0.4V
  • Logic in: High level input voltage >2.0V, Low level input voltage< 0.8V
• Color: LED light ring: Red / Green
