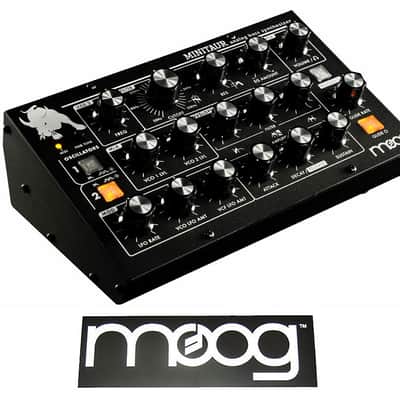

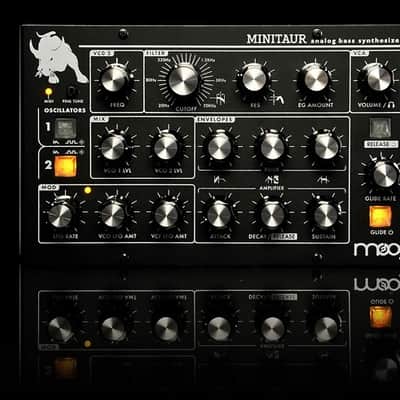

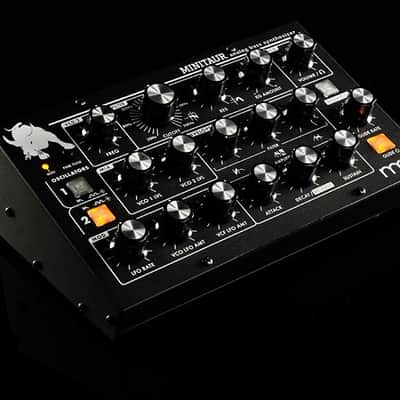

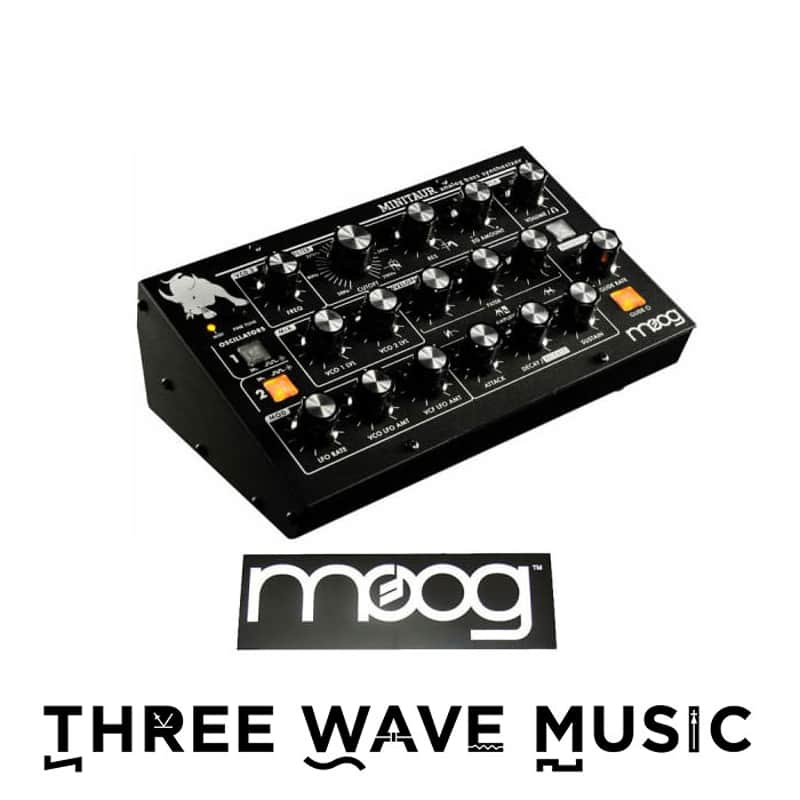

The Minitaur® is an inconspicuously compact, subharmonic bass machine designed to effortlessly integrate into any performance and computer-based music solution.

Just as its progenitors, the Minitaur effortlessly does one thing above all others… wall splitting analog BASS.

Specification:

• SOUND ENGINE Analog
• PRESETS 128 Presets
• POLYPHONY Monophonic (Can be poly-chained)
• EXTERNAL CONTROLLER RESPONSE Keyboard, Pitch Bend, Mod Wheel, After Pressure and Velocity
• SOUND SOURCES 2 Waveshape Oscillators with Square and Saw waveshapes

• VCO 2 FREQ +/-12 Semitones
• HARD SYNC On/Off
• OSCILLATOR CALIBRATION RANGE 22Hz-6.8KHz. Note range at 8’ = 18 - 116
• GLIDE Select LCR, LCT, EXP - Legato On/Off
• FILTER 20Hz-20KHz Moog Ladder Filter
• MODULATION SOURCES LFO (Triange, Square, Saw, Ramp, Sample & Hold), Filter Envelope

• MODULATION DESTINATIONS Oscillator Pitch, Oscillator 2 Pitch only, Filter Cutoff
• LFO PANEL FEATURES Rate control, VCO LFO Amount and VCF LFO Amount
• ENVELOPES 2x ADSR Envelopes with Legato On, Legato Off and EG Reset
• EXTERNAL AUDIO INPUT ¼” TS
• AUDIO OUTPUT ¼” TS, ⅛” TRS Headphone with volume control
• MIDI I/O DIN In, and MIDI I/O over USB

• ASSIGNABLE CV/GATE INPUTS Filter CV (Fixed Dest.), Pitch CV (Default), Volume CV (Default), KB Gate (Default)
• CV TO MIDI CONVERSION Yes
• INCLUDED POWER SUPPLY 100-250VAC, 50-60Hz, +12VDC
• WEIGHT 2.5lbs (1.2kg)
• DIMENSIONS 3.1”H x 8.75”W x 5.1”D
•   Specifications Subject To Change Without Notice
