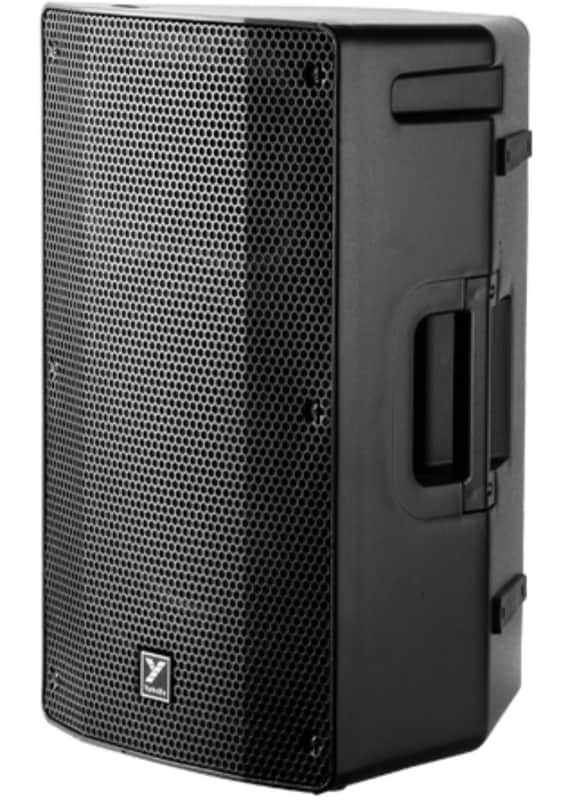

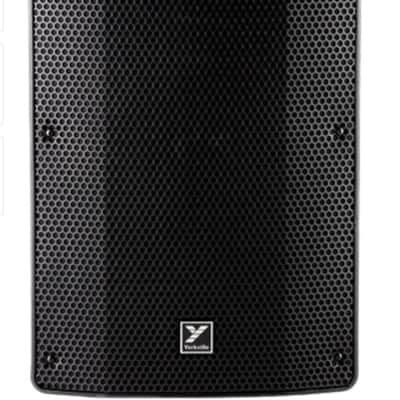

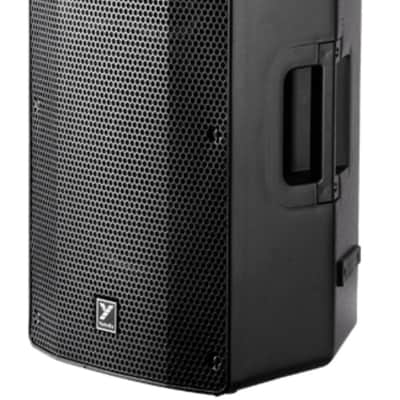

Yorkville YXL12 | 12-inch / 1-inch - 600 Watts Passive Cabinet
Brand New with Full Manufacturer's Warranty!
Introducing Yorkville Sound's new line of high quality & affordable passive cabinets. The YXL Series is poised to uphold Yorkville's reputation for great sound, reliability and durability.
Overview
The YXL cabinets use a single driver and 90 x 40 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.
Features
Specs
System Type Passive Loudspeaker
Active or Passive Passive
Power Rating (Watts) 600 Watts Program
Max SPL (dB) 125dB Continuous
Frequency Response (Hz +/- 3dB) 47 - 16k (Hz +/-3dB)
Dispersion (°H x °V) 90 x 40
Crossover Frequency (Hz) 1.6kHz
HF Horn Integrated into Baffle
LF Driver(s) 12-inch (2-inch voice coil)
Feet Rubber
Bar Handles 1 x Side / 1 x Back
Flying Hardware 2 (Top), 1 (Pull Back)
Optional Flying Hardware Yes
Enclosure Materials Polypropelene, Metal grille
Baffle Material Polypropylene
Grille Powder Coated Steel with Grille Cloth
Other Details Rubber feet on bottom and side with the monitor Wedge
Dimensions (DWH xbackW, inches) 11 x 13.25 x 20.5
Dimensions (DWH xbackW, cm) 28 x 33.5 x 52
Weight (lbs/kg) 35.5 / 16.1
Specifications subject to change without notice
Brand New with Full Manufacturer's Warranty!
Introducing Yorkville Sound's new line of high quality & affordable passive cabinets. The YXL Series is poised to uphold Yorkville's reputation for great sound, reliability and durability.
Overview
The YXL cabinets use a single driver and 90 x 40 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.
Features
- 600 Watts (Program)
- 8 Ohms
- 12-inch woofer with 2-inch voice coil
- 1-inch compression driver
- 90° x 40° HF dispersion
- Polypropelene cabinet construction
Specs
System Type Passive Loudspeaker
Active or Passive Passive
Power Rating (Watts) 600 Watts Program
Max SPL (dB) 125dB Continuous
Frequency Response (Hz +/- 3dB) 47 - 16k (Hz +/-3dB)
Dispersion (°H x °V) 90 x 40
Crossover Frequency (Hz) 1.6kHz
HF Horn Integrated into Baffle
LF Driver(s) 12-inch (2-inch voice coil)
Feet Rubber
Bar Handles 1 x Side / 1 x Back
Flying Hardware 2 (Top), 1 (Pull Back)
Optional Flying Hardware Yes
Enclosure Materials Polypropelene, Metal grille
Baffle Material Polypropylene
Grille Powder Coated Steel with Grille Cloth
Other Details Rubber feet on bottom and side with the monitor Wedge
Dimensions (DWH xbackW, inches) 11 x 13.25 x 20.5
Dimensions (DWH xbackW, cm) 28 x 33.5 x 52
Weight (lbs/kg) 35.5 / 16.1
Specifications subject to change without notice
