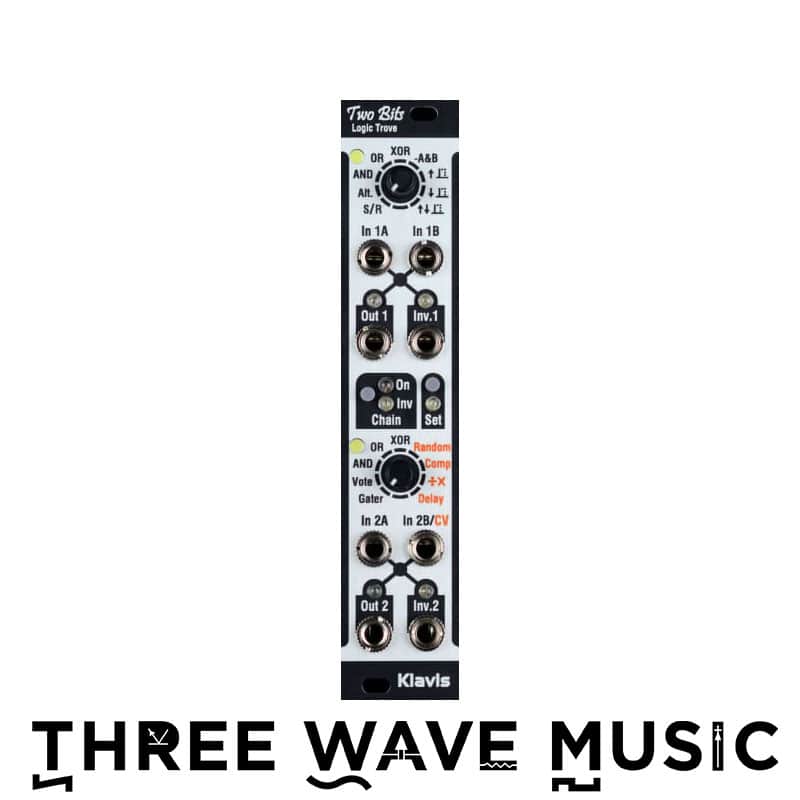

Two bits
Dual logic processor with chaining and CV functions
- Two dual-input logic processors
- 15 different functions
- Simultaneously available normal and inverted outputs
- LEDs on all outputs
- Chaining optinally inverted by dedicated button with LEDs
- Chaining does not waste any input or output; an additional virtual input is created in the second section
- Functions with duration, voltage, percentage, and ratio are user editable.
- User settings are stored automatically
- Random pass, voltage comparator, clock mult/div and delay line functions allow CV control
- White LEDs next to the pots confirm the matching of knob position and function
- The outputs can be Ored by simple shorting in a multiple
- Firmware upgradeable by playing an audio file
- Low consumption, skiff-friendly & compact module
- Complements Klavis’ Logica XT with a varied feature set
Mechanical
DimensionsmminchesEurorack
Height
128.40
5.06
3HE
Width
25.20
0.99
5HP
Depth behind panel
21.00
0.83
Supply
Supply railCurrent draw
+12V
31mA
-12V
1mA
+5V
0mA
