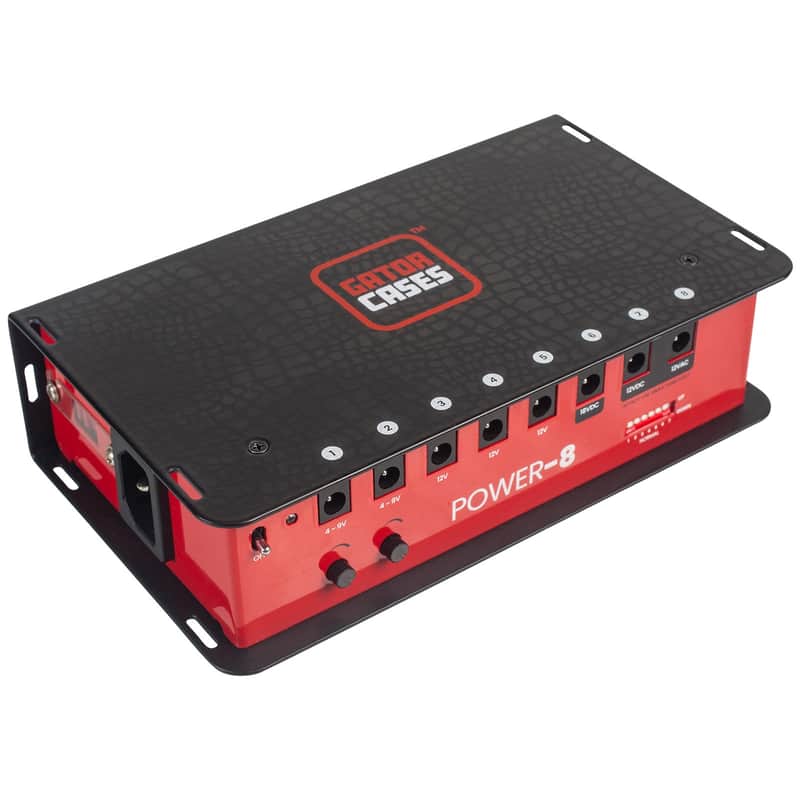

Pedal board power supply with 8 isolated outputs.

Gator Cases Pedal Board Power Supply Features:
  • Guitar Effects Pedal Power Supply with 8 Isolated Outputs.
  • 2 x 4~9V DC @ 120mA, 3 x 9/12V @ 120mA, 1 x 9/18V DC @ 250mA, 1 x 9/12V DC @ 250mA, 1 x 12V AC @ 500mA (1600 mA Max Output.)
  • Voltage Adjustable via DIP Switch & SAG Knobs (min 4V - max 9V.)

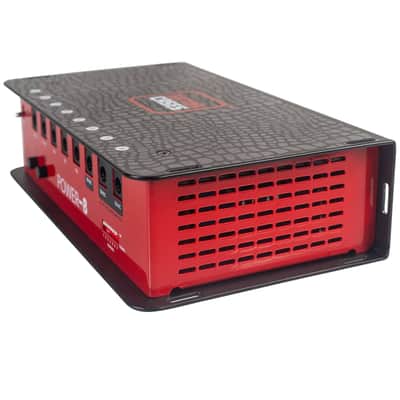

  • Heavy-Duty All Metal Enclosure with Slotted Vents for Heat Dissipation.
  • AC Power Input with Switchable Voltage Between 115V/230V (50Hz-60Hz) for International Use.
  • Integrated Slots Allow for Direct Mounting to Pedal Board.
  • On/Off Power Switch with LED Indicator Light.
  • Product Dimensions: 7.28"/185mm (L) x 4.25"/108mm (W) x 1.93"/49mm (H.)
  • Net Weight: 3 lbs./1.36 kg.
Each GTR-PWR-8 Retail Box Includes:
(1) Gator Cases Instrument-PedalPower Series Pedal Board Power Supply with 8 Isolated Outputs [GTR-PWR-8]
(1) Power Cable
(8) DC Power Cables
(1) AC Power Cable
(1) Polarity Inverter Cable
(1) Voltage Doubler Cable
(1) Mini Jack Cable

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model
  • GTR-PWR-8 Power Supply With 8 Isolated Outputs
Finish
  • NA
