Yorkville PS12SF | 12-inch, 900 Watt Powered Subwoofer with 8 Flypoints for Installation
Brand New with Full Manufacturer's Warranty!

Note! Special Order item. Please message us for lead time.

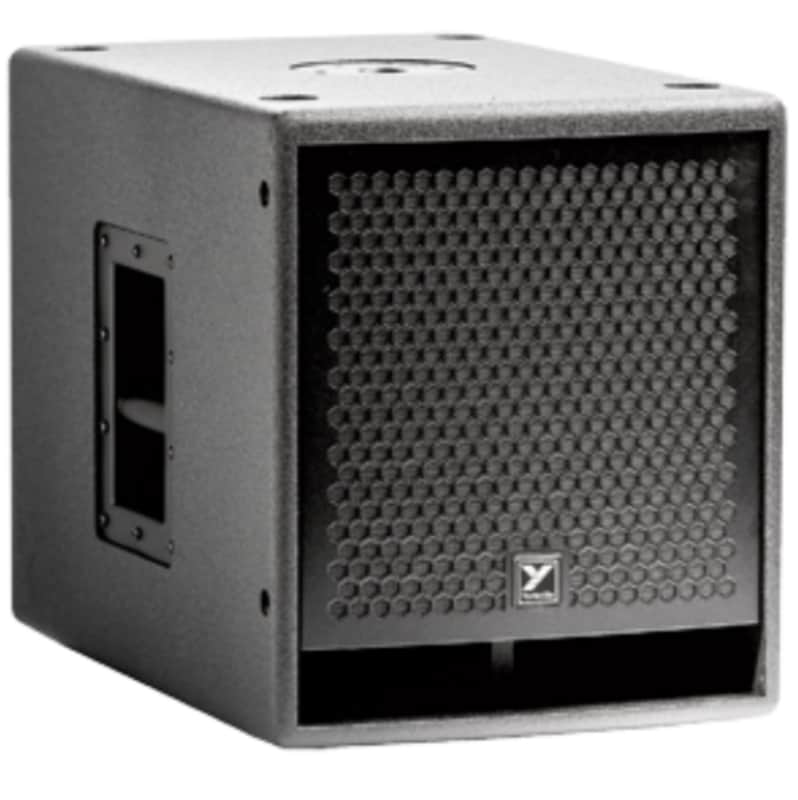

The 900-watt ultra compact single 12-inch active PS12SF bass reflex subwoofer is the ideal companion sub for the PS10P full range loudspeaker system. Solid 15mm birch plywood cabinet construction and an efficient Class-D power amplifier design provide unmatched long-term reliability in the field.

Features

• Ultra Compact High Performance Active Subwoofer
• Single 12-inch Long Throw Woofer w/ 3-inch VoiceCoil
• Max SPL 129dB Peak (123dB Continuous)
• Compact Bass Reflex Design
• Handles Line or Speaker Level (Powered) Input Sources
• XLR and ¼-inch Inputs and Link Outputs
• Ideal Companion Subwoofer for Parasource PS10P
• Solid 15mm Birch Cabinet Construction
• Integrated Pole Mount Adaptor and All Metal Handles
• Made in Canada

Overview
Cable of direct connection to any audio source (including speaker level input) the PS12S can be easily integrated in to virtually any small or medium format PA application.

Specifications
Active or Passive Active
Power Rating (Watts) 900 Watts Program (1800 Watts Peak)
Max SPL (dB) 129dB Peak (123dB Continuous)
Frequency Response (Hz +/- 3dB) 45Hz - 100Hz
Crossover Frequency (Hz) fixed @ 100Hz
Driver Configuration 1x12-inch (Bass Reflex Cabinet)
LF Driver(s) 1x12-inch Long Throw Ceramic w/ 3-inch VoiceCoil
Power Consumption 3.3 Amps

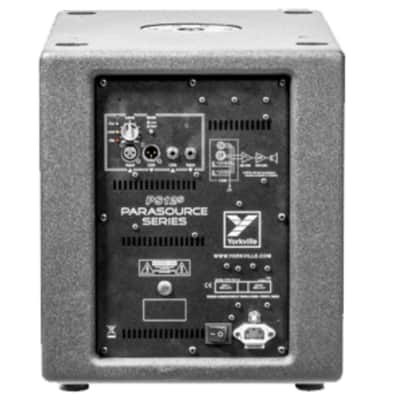

Inputs XLR Balanced Line Level Input
¼-inch Line or Speaker Level Input
Outputs XLR Balanced Link Output
¼-inch Link Output
Controls Output Level, Line/Speaker Level Switch
Power/Limit/Clip LED's
Enclosure Materials 15mm Birch
Baffle Material 15mm Birch
Covering / Finish Paint
Dimensions (DWH xbackW, inches) 22.8 x 14.7 x 16.85
Dimensions (DWH xbackW, cm) 57.9 x 37.4 x 42.8
Weight (lbs/kg) 65 / 29.6

Specifications subject to change without notice
