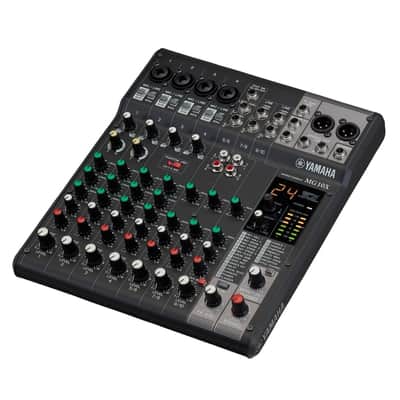

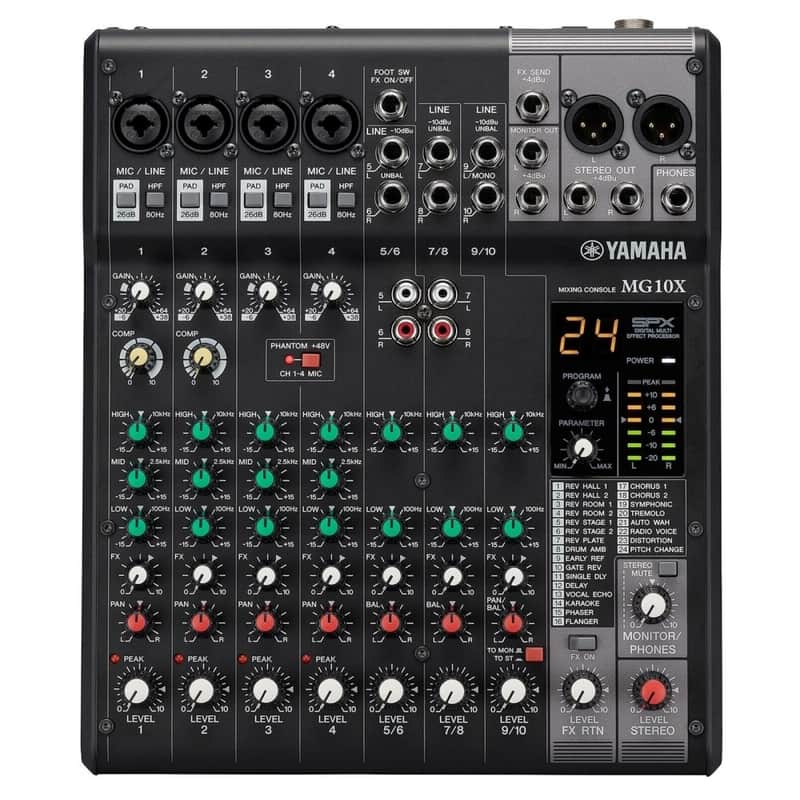

MG10X CV  YAMAHA

 Compact 10 Channel FX Mixer

Housed in a rugged steel chassis, the MG10X CV can accommodate up to 10 inputs and offers a balanced stereo output. Featuring D-Pre discrete Class A microphone preamplifiers for pristine sound, it includes an Aux bus for the built-in SPX effect with 24 presets and 2 channels of single knob compression. The MG10X can accept XLR, ¼" Phone and RCA type pin jack inputs, and offers XLR and Phone outputs. The MG10X offers rotary controls instead of faders, reducing the footprint for discrete placement onstage or anywhere space is a premium. A footswitch input allows hands free effect muting.

Features:

• Frequency response input to STEREO OUT: +0.5dB/-1.5dB (20Hz to 48kHz), refer to the nominal output level @ 1kHz, GAIN knob set to min

• Total Harmonic Distortion (THD+N) input to STEREO OUT: 0.02 % @ +14dBu (20Hz to 20kHz), GAIN knob set to min

• Crosstalk (1kHz): -78dB

• Hum and Noise (20Hz to 20kHz)

• Equivalent Input Noise: Crosstalk (1kHz)

• Residual Input Noise: -102dBu (STEREO OUT, STEREO master knob set to min)

• Input Channels Mono [MIC/LINE]: 4

• Mono/Stereo [MIC/LINE]: 10

• Stereo [LINE]: 3

• Output Channels STEREO OUT: 2

• MONITOR OUT: 1

• PHONES: 1

• AUX SEND: 1

• GROUP OUT: 0

• Bus STEREO: 1

• GROUP: 0

• AUX SEND: 1 (incl. FX)

• Input Channel Function Pad (mono): 26dB

• HPF (mono, mono/stereo): 80Hz, 12dB/oct (mono)

• COMP (Mono)

• 1-knob compressor (mono) (Gain/Threshold/Ratio) threshold: +22dBu to -8dBu

• Ratio: 1:1 to 4:1

• Output level: 0dB to 7dB

• Attack time: Approx. 25 msec

• Release time: Approx. 300 msec

• EQ High: Gain: +15dB/-15dB, frequency: 10kHz shelving

• Mid: Gain: +15dB/-15dB, frequency: mono 250Hz-5kHz peaking, stereo 2.5kHz peaking

• Low: Gain: +15dB/-15dB, frequency: 100Hz shelving

• Peak LED (mono)

• LED turns on when post-EQ signal reaches 3dB below clipping

• Phantom power voltage: +48V

• Power requirements: PA-10 power adapter (included)

• Power consumption: 22.9W

• Pre-monitor level meter: 2 x 7 segment LED meter [PEAK, +10, +6, 0, -6, -10, -20dB]

• SPX algorithm: 24 programs

• Dimensions (WxHxD): 9.6" x 2.8" x 11.6"

• Weight: 4.63 lbs

SALE: $259.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
