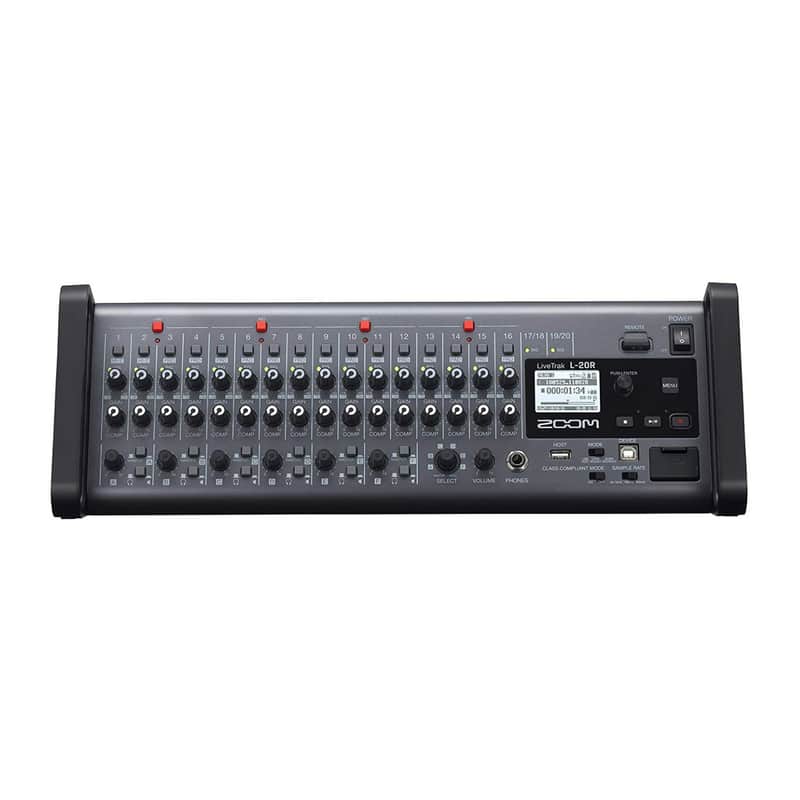

The Zoom L-20R is the portable mixer/recorder that does it all! It is a rack-mountable digital mixer that allows musicians to control their live mix right from the stage with the use of an iPad. With wireless control, 20 discrete channels, 22 tracks of recording, and six custom monitor mixes, the L-20R offers a complete solution for any venue.

Portable and Powerful

Featuring 16 mono mic/line inputs and two stereo inputs, the L-20R can handle the most demanding stages. The L-20R offers two EFX busses and each channel includes a 3-band EQ, pan controls, and compressor.

22 Tracks of Recording

During your live performance, record 20 channels plus a stereo mix directly to an SD card, then transfer your tracks to your DAW for your final edit.

Independent Monitor Outputs

With six independent monitor outputs, the L-20R enables musicians to create their custom mix. A dedicated output enables the FOH engineer to easily switch between monitoring the main and sub-mixes.

iPad Control

With iPads, the FOH engineer and 6 musicians can control their mix from anywhere in the venue. It is compatible with all iPad Air models, iPad Mini 2 and later, iPad Pro, and iPad (2017), running iOS 10.3.3 or newer.

Scene Recall

With the LiveTrak L-20R’???s Scene Recall feature, you can instantly recall up to nine different scenes with monitor mixes, EQ settings, effects, and more.

Versatile Design

The L-20R’???s versatile design provides easy access for plugging in your cables.

Robust Audio Interface

The L-20R is a 22-in/4-out USB audio interface. Route inputs to any DAW, streaming software, or iOS device, even while recording to an SD card

(Apple Lightning to USB Camera Adapter required).

Listed8 months ago
ConditionMint (Used)
Mint items are in essentially new original condition but have been opened or played.learn more
Brand
Model
  • LiveTrak L-20R Rackmount Digital Mixer / Recorder
Categories
Sample Rate
  • 96 khz
Electronics
  • Digital
Bit Depth
  • 24-bit
Format
  • 19-inch Rackmount
Number of Headphone Outputs
  • 1
Number of Analog Outputs
  • 8
Number of Analog Inputs
  • 20
Number of Channels
  • 20
