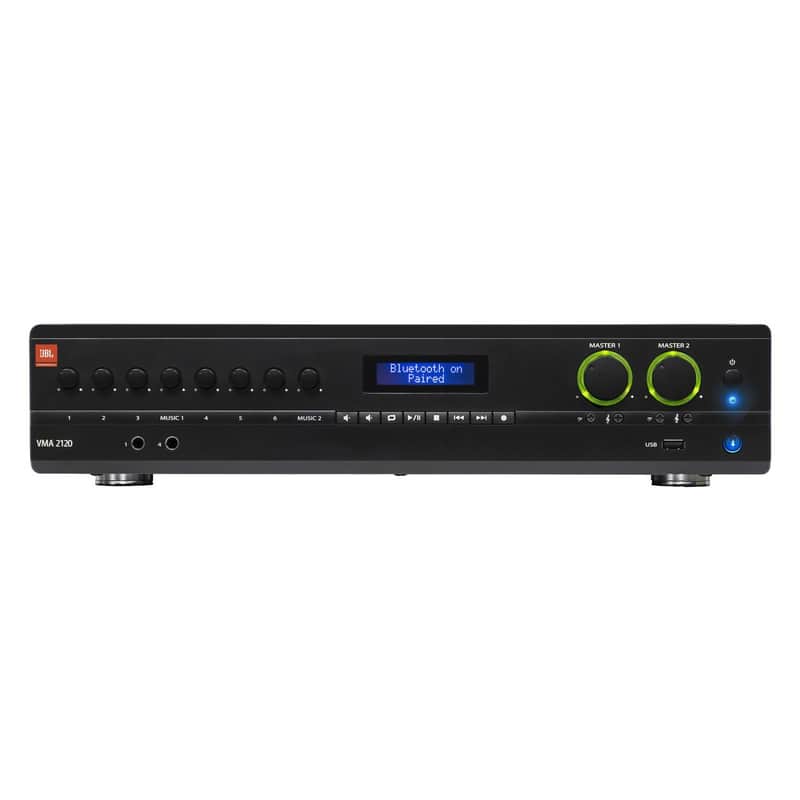

\n\n 8-In/2-Out 120-Watt Channel Mixer/Amplifier with Bluetooth \n

The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4, 8) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

\n

Key Features

\n\n

\n
• 8 inputs with 2 outputs of 120-watts of power
\n
• Independent bass and treble controls for each output channel
\n
• 100V and 70V output, or 4/8
\n
• Paging Chime, and Priority muting
\n
• Works with JBL CSR-V wall controllers
\n
• Balanced mic/line inputs; RCA (.775V) inputs
\n
• Rack mounting hardware included
\n

\n

Technical Specifications

\n

Max Output Power per Channel             \ninto 4 or 8 ; 1kHz, <= 0.5% THD - VMA2120: 120W\nInsertion Loss   \n(70V & 100V outputs) 1dB maximum\nNumber of Inputs          \n8\nNumber of Outputs       \n2\nTone Controls   \n(Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB at 50Hz; Treble +/-14dB at 10kHz\nInput Sensitivity             \n(to obtain full rated power into 8  load) Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS\nFrequency Response     \n(measured at 2.83VRMS into rated load impedance at any output) 4/8  Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB\nTotal Harmonic Distortion (THD)            \n(measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz - 20kHz\nSignal to Noise Ratio     \n(Ref. Rated Power, mixer levels at min., master volume at max. A-weighted) >76dB\nInput Impedance           \n(nominal) Mic: 400  Line: 20 k (balanced) RCA: 50 k\nPhantom Power             \n27VDC\nCrosstalk            \n(reference rated power, volume at mid position, 1kHz) -70 dB\nNominal AC Line Voltages          \n100V, 120V, 220V, 220-240V, 50/60 Hz\nMinimum Load Impedance        \n(Low Impedance Output, 70V Output, 100V Output) VMA2120: 4 , 40 , 80\nOperating Temperature/Humidity         \n0 C to 35 C at 95% R.H. (non-condensing)\nStorage Temperature    \n-20 C to 85 C
