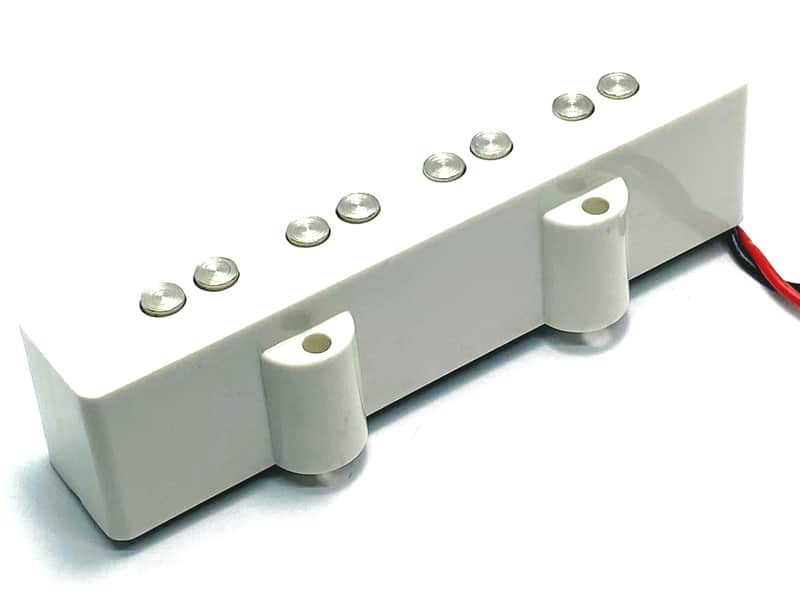

Dragonfire Standard Jazz Bass Bridge Pickup, 4-String J Bass Guitar Passive Ceramic Bridge ~ White

Standard Jazz Bass Bridge Pickup, 4 String Passive Ceramic Magnet Styling ~ White
1 qty Bridge Position Dedicated Pickup ~ Mounting Pad & Screws Included

The Dragonfire Jazz Bass Pickups in this Standard Passive Jazz category are a great pickup replacement option for all-around J-Bass performance. Adding balance, solid output and nice presentation to your playing, these pickups are effective for most styles of play.

The eight-pole design on these single-coil J Pickups will work for your fretted or fretless 4-string bass. Wax potting on the pickups helps isolate sound and reduce feedback or other undesirable noise. These Standard Jazz Pickups feature ceramic magnets and exposed slug style chrome polepieces with your choice of pickup cover colors.

Bass pickup dimensions have varied over time so be sure to check your cavity and available space with the approximate measurements for these pickups provided below.

~~Product Highlights~~
*Standard 4-String Jazz Bass Pickup Replacement
*Passive J-Bass Pickup w/ Ceramic Magnet Styling
*Clean Response, Modern Sound
*2 Conductor Wiring (2 Wire Pickup Design)
*Wax Potted for Squeal Reduction, Avoidance or Elimination
*Pickup Mounting Screws & Pad Included
*250K Pots & 0.022 Tone Caps Recommended

~~Bridge Pickup Approximate Measurements~~
*Output: Wound to ~6.2K
*Polepiece Spacing: 59mm
*Overall Pickup Length: 95mm
*Overall Pickup Width: 30mm (19mm excluding screw flanges)
*Overall Pickup Depth/Height: 23mm
*Bridge Mounting Screw Spacing: 40mm x 24mm

~~Installation Information~~
These two-wire pickups come with a colored hot and a black ground wire for easy installation (colors may vary from sample images provided). Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use basic information and general knowledge to successfully complete installation with your choice of diagram or instructions if needed.

If you’d like to update your wiring, switching, controls or functionality to upgrade your system, check out our custom Wiring Harnesses.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

~~Purchase Notes~~
Please ask any questions prior to purchase.

Buyers assume all risk of use; sales are only offered to those competent to safely and lawfully purchase and use items. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice. Take your time for installation; do not use power tools and do not over-tighten or apply too much pressure on components.

Inspect your order upon receipt. Contact us if you have any questions. If everything is in order, simply install carefully to enjoy.
