Studio Technologies MODEL-5304 Advanced, 4-channel intercom user device for Dante audio-ove

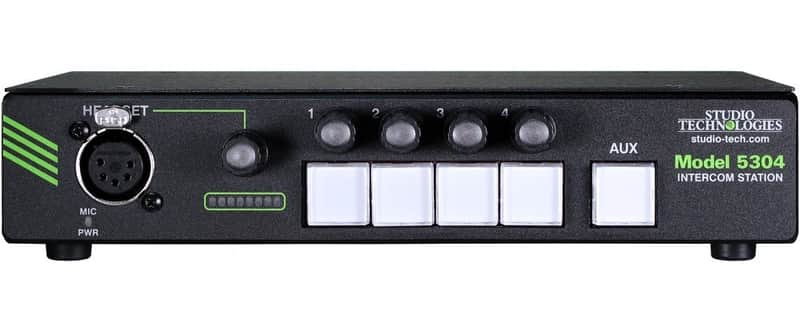

Simplify your on-site communications setup with the Studio Technologies Dante audio over Ethernet capable Model 5304 Intercom Station. The 5304 features four independent talk and listen channels and a host of configurable parameters allowing it to fit seamlessly into a wide range of applications.

From on-air broadcasting to corporate AV, the 5304 provides easy configuration and control via the STcontroller software app, and it's all handled over a standard Ethernet connection. The unit also draws power from that same connection, which means only a single cable run is required for bi-directional Dante audio, power, configuration, and control.

The unit can be configured as a call center for a virtual "party-line" intercom system with other compatible devices. Five rotary controls and push buttons on the front panel facilitate level control and signal/call routing respectively. The rotary controls can also display a multi-color level meter for the input signal and the channel status.

The Model-5304 boasts a high headroom, low noise input preamp that ensures a wide dynamic range, so you hear only what you want and nothing you don't. An integrated compressor circuit helps keep levels consistent to avoid signal overload.

Studio Technologies MODEL-5304 Applications:

• On-air broadcasting
• Live event communication
• Theater
• Industrial
• Aerospace
• House of worship
• Corporate AV

Studio Technologies MODEL-5304 Features:

• Dante audio-over-Ethernet technology
• Four independent talk and listen channels
• Supports dynamic and electret microphones
• 5-pin female XLR headset connector
• Uses STcontroller for configuration
• Two remote control inputs
• Call send and receive functions
• Excellent audio quality
• AES67 and Dante Domain Manager support
• Power-over-Ethernet (PoE) powered

Studio Technologies MODEL-5304 Specifications:

• Power Source: Power-over-Ethernet (PoE): class 2 (low power, ≤6.49 watts) per IEEE® 802.3af
• Network Audio Technology:
  • Type: Dante audio-over-Ethernet
  • AES67-2018 Support: yes, selectable on/off
  • Dante Domain Manager (DDM) Support: yes
• Bit Depth: up to 24
• Sample Rate: 48 kHz
• Pull-Up/Down Support: no
• Dante Transmitter (Output) Channels: 4
• Dante Receiver (Input) Channels: 4
• Dante Audio Flows: 4; 2 transmitter, 2 receiver
• Transmitter (Output) and Receiver (Input) Nominal Level: –20 dBFS
• Audio Channels: 4 talk, 4 listen
• Network Interface:
  • Type: 100BASE-TX, Fast Ethernet per IEEE 802.3u (10BASE-T and 1000BASE-T (GigE) not supported)
  • Power-over-Ethernet (PoE): Per IEEE 802.3af
  • Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s not supported)
• Microphone Input:
  • Compatibility: analog dynamic or electret microphones
  • Type: unbalanced
  • Electret Microphone Power: 3.3 volts DC via 2 k (2000) ohms series resistance, selectable on/off
  • Gain: 24, 30, 36, 42, or 48 dB, selectable
  • Frequency Response: 42 Hz to 18 kHz, –3 dB, nominal
  • Distortion (THD+N):
  • Noise Floor: –94 dBFS (A-weighted)
• Compressor:
  • Threshold: 1.5 dB above nominal level (–18.5 dBFS)
  • Slope: 2:1
• Headphone Output:
  • Type: 2-channel
  • Compatibility: intended for connection to stereo (dual-channel) or monaural (single-channel) headsets with nominal impedance of 50 ohms or greater
  • Maximum Output Voltage: 2.9 Vrms, 1 kHz, with 150 ohm load
  • Frequency Response: 7 Hz to 9.8 kHz, –3 dB
  • Distortion (THD+N):
  • Dynamic Range: >100 dB
• Call Send Function:
  • Signaling Method: 20 kHz, within selected Dante transmitter (output) audio channels
  • Send Level: –20 dBFS
• Call Receive Function:
  • Sources: Dante receiver (input) channels 1-4
  • Signaling Method: 20 kHz +/-800 Hz, nominal, within audio channels
  • Receive Level: –27 dBFS minimum
  • Detect Time: 10 milliseconds, minimum
• Remote Control Inputs: 2
• Function: configurable, can mimic the action of any of the five button functions
• Type: active low, 1 mA maximum, inputs pulled up to 3.3 volts DC via 3.4 k (3400) ohm resistors
• Connectors:
  • Headset: 5-pin female XLR
  • Ethernet: RJ45 jack
  • Remote Control Inputs: 3-conductor (TRS) 3.5 mm jack
  • USB: type A receptacle (used only for updating application firmware)
• Configuration: requires Studio Technologies' STcontroller software application
• Software Updating: USB flash drive used for updating application firmware; Dante Updater application for updating Dante interface firmware
• Environmental:
  • Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
  • Storage Temperature: –40 to 70 degrees C (–40 to 158 degrees F)
  • Humidity: 0 to 95%, non-condensing
  • Altitude: not characterized
• Dimensions (Overall):
  • 8.70 inches wide (22.1 cm)
  • 1.72 inches high (4.4 cm)
  • 4.45 inches deep (11.3 cm)
• Weight: 0.95 pounds (0.42 kg); rack-mounting installation kits add approximately 0.2 pounds (0.09 kg)
• Deployment: intended for tabletop applications. Four optional mounting kits are also available:
  • RMBK-10 allows one unit to be mounted in a panel cutout or on a flat surface
  • RMBK-11 allows one unit to be mounted in the left- or right-side of one space (1U) of a standard 19-inch rack
  • RMBK-12 allows two units to be mounted in one space (1U) of a standard 19-inch rack
  • RMBK-13 allows one unit to be mounted in the center of one space (1U) of a standard 19-inch rack
