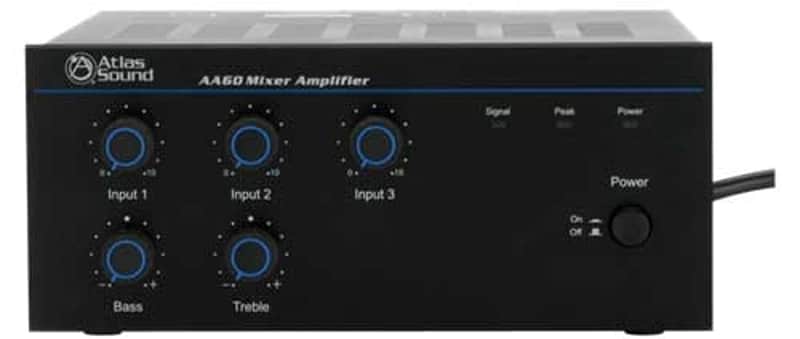

Atlas IED AA60 3 Channel 60W Mixer Amplifier

Designed for paging, BGM, privacy systems and MOH systems.

The AA35G three-input mixer/amplifier is designed for distributed business paging and background music systems (BGM), small to medium speech privacy systems, and in installations where music on hold (MOH) plus paging is required. Accommodates a variety of input sources courtesy of its one microphone and two stereo line inputs, including paging mics, digital music players, smartphones, and more. A dip switch-selectable matrix allows the creation of a Zone 2 mix from any or all of the input sources for music or messaging on-hold applications. 70.7V, 100V, and 8-ohm outputs are provided. The AA60’s impressive 60W will match nicely with Atlas Sound FAP, SM, SD, and GD Series loudspeakers—in fact, in an 11’ ceiling application, the AA60 will provide power for up to 200 SD72W loudspeakers tapped at .25W each, while providing 84dB in the direct sound field at ear height!

• 1 mic in with phantom power, 2 stereo line inputs
• Dual line outputs
• Pre out/Power in patch
• Remote and VOX-activated mute
• 60W of true output power

• 1 Mic in with phantom power
• 2 Stereo line inputs
• Dual line outputs
• Pre Out/Power in patch
• Remote and VOX activated mute
• Route any source combination or entire mix bus to Zone 2 (MOH out)
• Special low cut filter is 6dBu/octave at 400Hz and also bypasses front panel bass control to allow use with paging horns like APX40TN and AP-15T
• 60 Watts of true output power
• Dimensions (H x W x D): 3.66" x 8.27" x 10.87"
• Frequency Response: 50 Hz-20 kHz
• Connector Type: Phoenix and RCA
• Output Power: 60 Watts
• UL Listed/Standard: UL60065
