More about Bass VI Journeyman Relic®

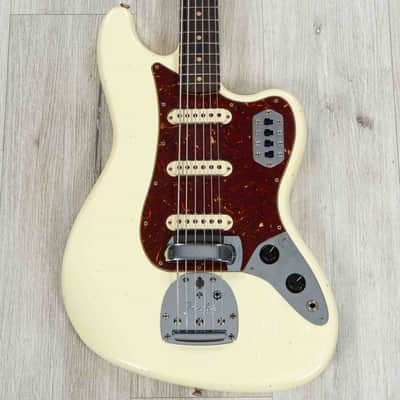

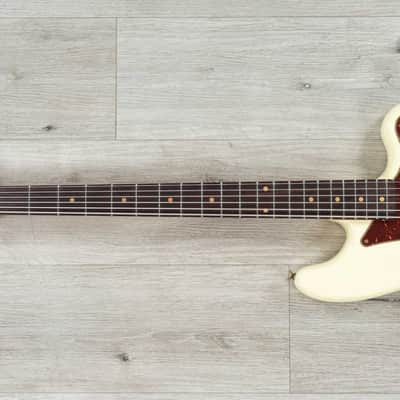

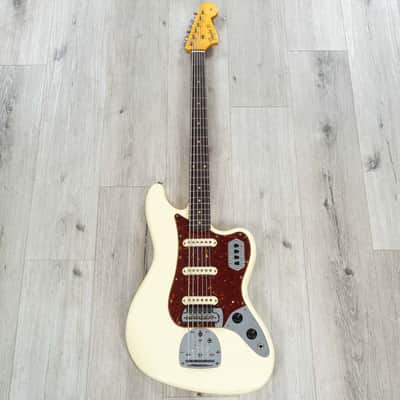

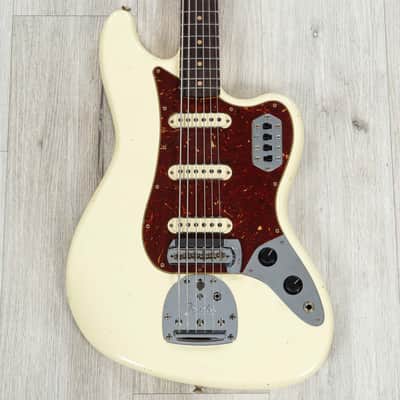

The Bass VI Journeyman Relic is a faithful recreation of the original Fender six-string bass. Resembling a larger-scale Jaguar, this sleek 30”-scale-length bass has some very distinct tonal and playing qualities, which is why it has long been a secret weapon in the studio for many. This version is much like the original, but with a couple modified upgrades. The two-piece select alder body has a Journeyman Relic lacquer finish, while the quartersawn maple neck has a ’60s-style “oval C” profile, 9.5”-radius flat-lam rosewood fingerboard, and 21 narrow tall (6105) frets.

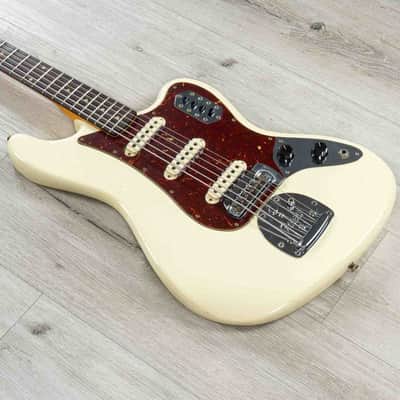

Custom Shop ’62 Jaguar pickups produce a rare articulate tone and are wired to four slide switches (on/off for each pickup and a series/parallel switch). Other features include a four-ply brown shell pickguard, vintage-style bridge and “floating” tremolo tailpiece, vintage-style tuning machines, and bone nut. Also includes deluxe hardshell case, strap and certificate of authenticity.

Fender®, Squier®, Stratocaster®, Telecaster®, Precision Bass®, Jazz Bass® and the distinctive headstock designs commonly found on the Strat®, Tele® & P Bass® guitars are registered trademarks of Fender Musical Instruments Corporation

Specifications General
  • Model Name: Bass VI Journeyman Relic®, Rosewood Fingerboard, Vintage White
  • Model Number: 9235001603
  • Series: Time Machine
  • Color: Vintage White

Body
  • Body Shape: Bass VI
  • Body Material: 2-Piece Select Alder
  • Body Finish: Lacquer

Neck
  • Neck Material: Quartersawn Maple
  • Neck Shape: 1960 Oval "C"
  • Scale Length: 30" (762 mm)
  • Fingerboard Radius: 9.5" (241 mm)
  • Number of Frets: 21
  • Fret Size: Narrow Tall (6105)
  • String Nut: Bone
  • Nut Width: 1.55"
  • Neck Finish: Nitrocellulose Lacquer
  • Fingerboard: Flat-Lam Rosewood
  • Position Inlays: Vintage Clay Dot

Electronics
  • Bridge Pickup: Custom Shop '62 Single-Coil Jaguar®
  • Middle Pickup: Custom Shop '62 Single-Coil Jaguar®
  • Neck Pickup: Custom Shop '62 Single-Coil Jaguar®
  • Controls: Volume, Tone
  • Pickup Switching: 4-On/Off Slide Switches (One for Each Pickup and One Series/Parallel)
  • Pickup Configuration: SSS

Hardware
  • Bridge: Adjusto-Matic™ Bridge with Vintage Style "Floating" Tremolo Tailpiece

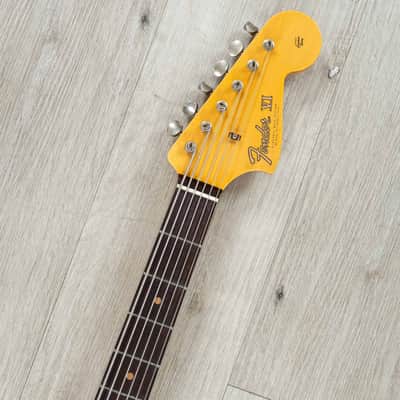

  • Tuning Machines: Vintage Style
  • Orientation: Right-Hand
  • Hardware Finish: Nickel/Chrome
  • Pickguard: 4-Ply Brown Shell
  • Control Knobs: Black Vintage-Style

Miscellaneous
  • Strings: Fender® Bass VI 5350/6 Stainless Steel .025-.095

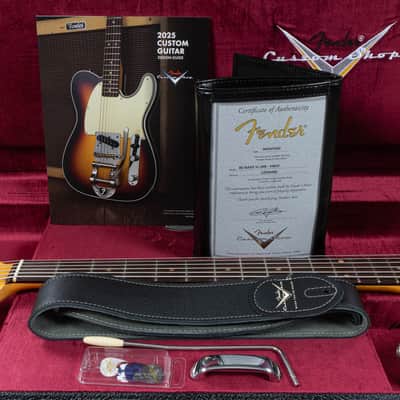

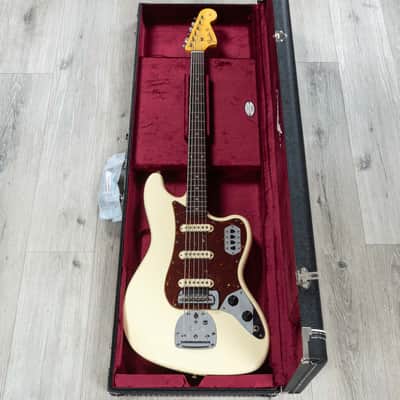

  • Included Accessories: Deluxe Hardshell Case, Strap and Certificate of Authenticity
  • Instrument Weight: 9.3 lbs.

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model
  • Custom Shop '60s Bass VI Journeyman Relic
Categories
Model Family
Right / Left Handed
  • Right Handed
Active / Passive Pickups
  • Passive Pickups
Number of Strings
  • 6-String
Active Preamp
  • No Preamp
Series
Finish Features
  • Relic
Offset Body
  • Offset Body
Body Shape
  • Double Cutaway
Pickup Configuration
  • SSS
Number of Frets
  • 19
