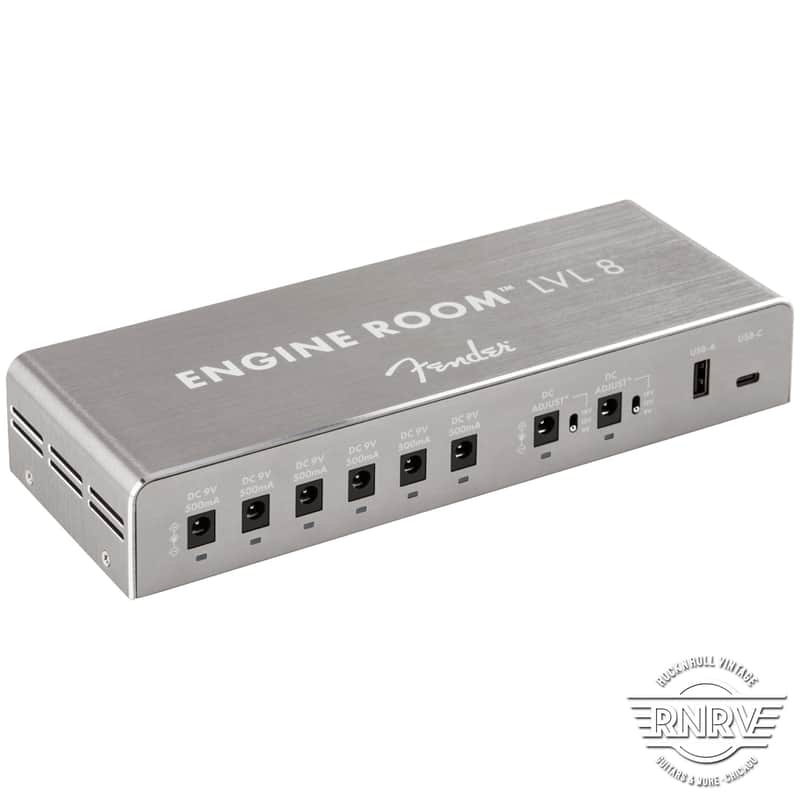

Pedals need clean isolated power and Fender’s Engine Room® LVL8 Power Supply is capable of the task. Featuring eight ground isolated power outlets, (6) are capable of delivering 9Vdc at 500mA while (2) additional outlets provide switchable voltage (9v/12v/18v) via 3-way toggle or slide switch. Perfect for performance or studio players and can be daisy-chained with our LVL12 for players looking for more tonal variety.

The Engine Room® Power Supply is designed by our in-house team of experts in Southern California. The chassis is crafted from lightweight, durable anodized aluminum, and its sleek, low-profile appearance is engineered to accommodate most pedalboards. Also features a 2-color LED indicator for each output, green indicating current consumption. Road-tested and ready for live or studio use, Fender’s Engine Room® Power Supply is built to power your performance.

Product Specs

General
Series - Engine Room®
Color - Gray
Material - Anodized Aluminum
Country Of Origin - CN

Electronics
Output - 8 - Ground Isolated Outputs; 6 (9V/500mA), 2 Switchable (9V/500mA, 12V/375mA, 18V/250mA)
Voltage - 120V

Miscellaneous
Power Cable - 6.6 ft (2 m) IEC

Accessories

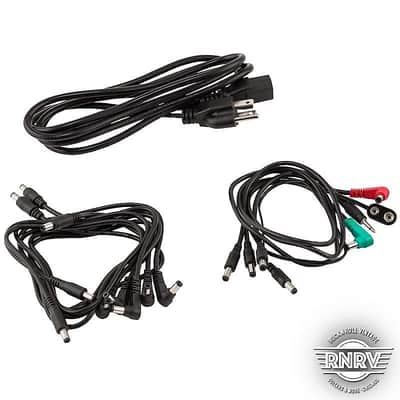

Included Accessories

• 4 x 2.1mm barrel connector 24” (60cm) length
• 2 x 2.1mm barrel connector 18” (45cm) length
• 2 x 2.1mm barrel connector 12” (30cm) length
• 1 x 2.5mm to 2.1mm barrel
• 1 x 2.5mm to 2.1mm barrel reverse polarity
• 1 x 3.5mm TS to 2.1mm barrel
• 1 x 9V Battery clip to 2.1mm barrel

Measurements
Dimensions - 2.00x8.50x11.75 IN
Shipping Weight - 3.40 LB
Product Depth - 3.59” (91.3mm)
Product Height - 1.65” (42mm)
Product Width - 9.6” (244mm)
Shipping Length - 11.75 IN
Shipping Height - 2.00 IN
Shipping Width - 8.50 IN
