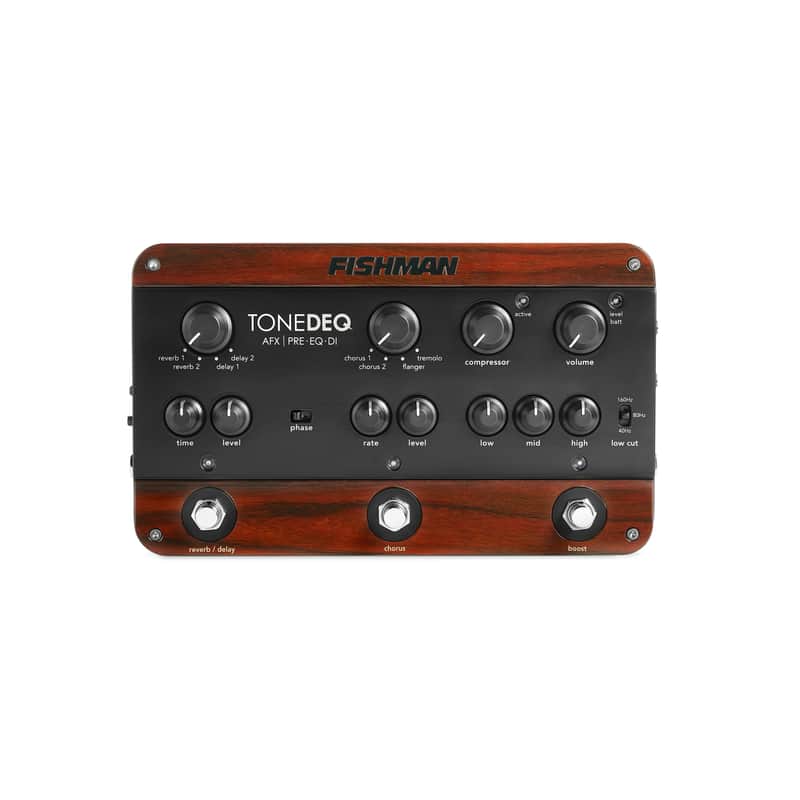

The new Fishman ToneDEQ Preamp, EQ, and Direct Box for Acoustic guitar (PRO-DEQ-AFX) gives the guitarist the perfect solution for plugging straight into the board for live performance or recording.

The complete performance solution for the acoustic musician

With a high-quality preamp, dual effects section, tone controls, a compressor, level booster and a balanced DI — it’s got everything you need in one box.

Pure Analog Circuitry
Its analog signal path goes from end to end – from preamp to output – to give acoustic musicians a richer tonal quality. Even the digital effects are mixed in parallel so they don’t affect the purity of the your acoustic instrument.

Fully Balanced Stage DI
Flexible outputs include a 1/4 inch amplifier output and XLR DI output for the lowest noise possible. Plus the DI features automatic ground-lifting and selectable pre/post EQ settings.

Discrete Class A Preamp
With Fishman, you get quality discrete Class A signal conditioning created by the leader in instrument preamp design. The high impedance input is a must for any passive instrument pickup.

Advanced 4-Band EQ
Legendary 4-band equalizer design provides superior tone control for any acoustic instrument. The variable low cut filter controls sub-bass effects produced by some passive pickups.

Input: 10mOhm, Discrete Class-A JFET design Audio: All-analog signal path with parallel digital effects Tone Control: 4-band EQ with Bass, Middle, Treble, and selectable Low Cut Dual Effects: Reverb (2) or Delay (2), Chorus (2), Flanger or Tremolo Dynamics: Soft-knee Compressor, Boost Footswitch (up to 9dB) Feedback Control: Selectable Phase Inver Audio I/O: 1/4” mono instrument input, 1/4” amplifier output, balanced XLR DI output with pre/post routing Powered by 9-Volt battery (not included), or Fishman 910-R AC adapter (optional) Dimensions: 5.36”L x 9.5”W x 2.2”H
