The WA76-D2 accurately reproduces 2 channels of one of the fastest and most loved studio compressors of all time, known for its generous headroom, ultra-fast dynamic control, and rich analog tone. Using premium and custom components like O-12 (input) and 5002 (output) transformers from CineMag, WA76-D2 achieves authentic 76 rev-D style compression, known for “low noise” preamp stage with unmistakably analog character. Added modern controls to achieve parallel compression, active & true-bypass, and variable sidechain filtering flexibility make WA76-D2 an ideal choice for modern recording workflows that require vintage tone shaping. WA76-D2 recreates the legendary tone & control of the vintage 76-style compression used in studios by artists like Missy Elliot, Timbaland, Van Halen, Rick Rubin, Daft Punk, and many more.

Features:

• Building off of the lauded fame of vintage Rev D-style compressors, the WA76-D/D2 includes all the controls of the original plus critical added features that deliver a complete and professional recording experience.
• Use the mix knob to easily achieve analog parallel compression by dialing the dry signal alongside the compressed (wet) tone. The SC HPF knob engages a variable sidechain high-pass filter with a range of 30-300Hz.
• Quickly switch between a traditional 600Ω impedance ideal for other analog gear to a 10kΩ impedance that better matches modern audio interface outputs.
• SINGLE CHANNEL ONLY: WA76-D has two stereo linking jacks to link up to 10 WA76-D compressors for surround/immersive compression. External sidechain inputs and outputs are added to insert key inputs to achieve “ducking” or add an EQ on the input and output for analog de-essing in real time.
• WA76-D2 is a dual-channel unit and has three distinct two-channel operating modes. Stereo mode allows for even compression in the sidechain, focusing on the fastest attack or slowest release. A>AB mode allows the left channel to control the attack/release of the right channel. Sidechains in A>AB mode are still linked as in stereo mode. In A|B mode, the WA76-D2 operates as a dual-mono compressor.

Technical Specifications

Product Description & External Specs (Per Channel)

• 100% Analog Discrete FET Compressor.
• Faithful Recreation of the Vintage “Rev D” FET Compressor With Added Recording Features.

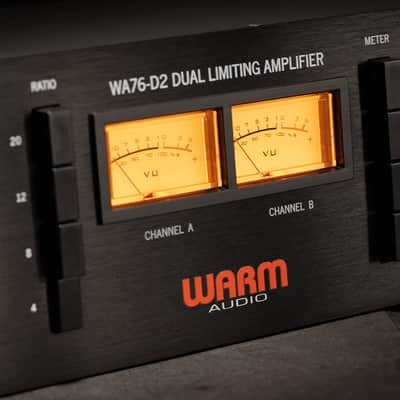

• VU Meter Options: Gain Reduction | +8 dB Output | +4 dB Output | “Off” Powers Off Unit.
• 100–230V IEC Inlet Universal Power Supply.
• Selectable 10 kΩ Input Impedance to Better Match Modern Audio Interface Specifications.
• 100% Dry-Wet Mix Control.
• Variable Sidechain High-Pass Filter: 30–300 Hz, 12 dB/Octave.
• ¼” Stereo Link & External Sidechain Access.
• Active Bypass For Running Unit As Line Amplifier & True Bypass Option For A/B Comparisons.

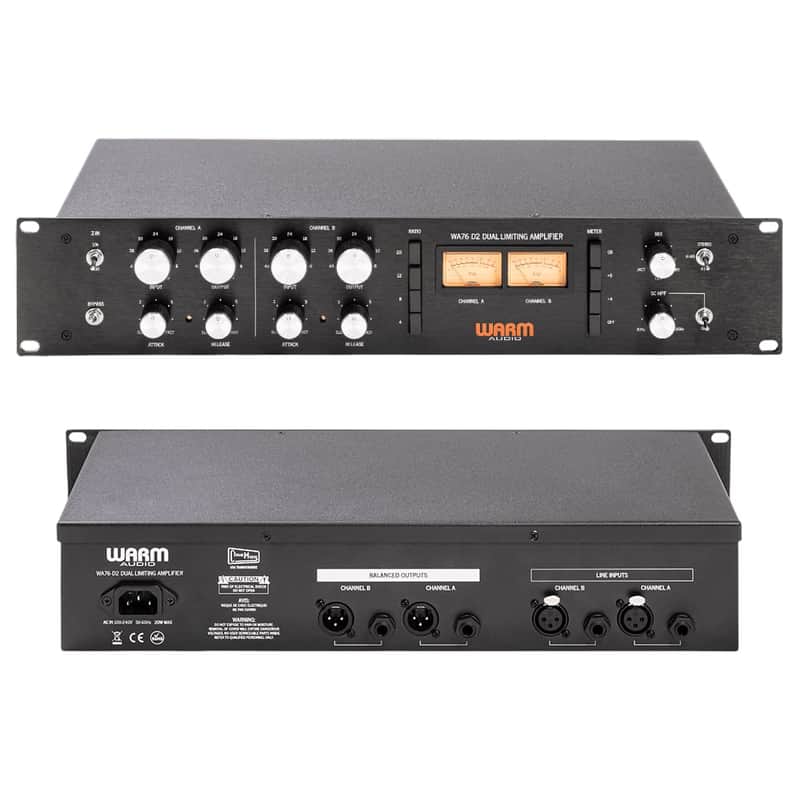

• 2U 19″ Rackmount Chassis.
• “All-Buttons-In” Setting For Experimental & Hard-Limiter Tones.
• Balanced XLR & TRS Inputs & Outputs.
• Single Chassis Depth: 6.5” | 16.25 cm.
• Dual Chassis Depth: 8.25” | 20.63 cm.

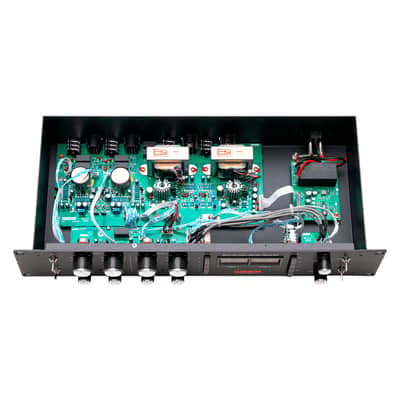

Components & Internal Specs (Per Channel)

• Class-A Line-Level Output Amplifier.
• 100% Discrete Audio Signal Path Using 600Ω Input Impedance Attenuator.

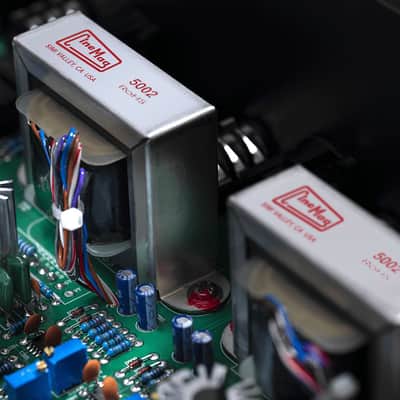

• Utilizes Premium O-12 Input & 5002 Output Transformers From CineMag USA.

Performance Specs (Per Channel)

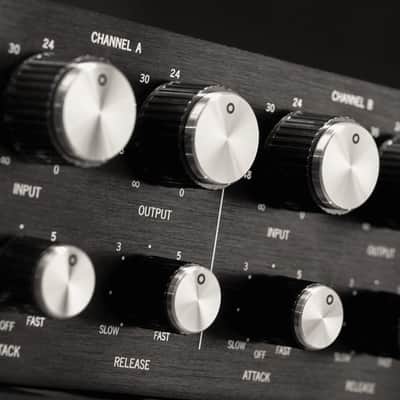

• Vintage-Spec Attack & Release: Attack = 20 µS – 800 µS | Release: 50 ms – 1.1 s.
• Frequency Response: ±1 dB 20 Hz – 20 kHz.
• Total Amplifier Gain: 53 dB.
• Signal-to-Noise Ratio (SNR): 92 dB (A-weighted).
• Total Harmonic Distortion Ratio (THD+N): -67 dB (at -6 dBu).

Additional 2-Channel Specs

(3) 2-Channel Operating Modes: Stereo Linked | Primary: Secondary | Dual-Mono.

Note on WA76-D2: No external sidechain access or stereo linking options.
