Like Father. Like Son.

The WA-47jr is a FET transformerless version of the highly renowned classic '47 microphone that has been used on countless hit records for the last 50+ years. The WA-47jr is fully discrete, has 3 polar patterns, and is designed for pro studio, home studio, live, and broadcast applications. The WA-47jr sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources.

The WA-47jr proudly utilizes a custom k47 style capsule reproduction, designed w/the same hole pattern and frequency response as the vintage design. Our version of this capsule (model# WA-47-B-80v) is carefully manufactured by an Australian capsule manufacturer with careful precision and repeat-ability that allows the most important sonic piece of the classic mic to be heard and influence the tone and signature of the WA-47jr. The WA47jr's low-noise and discrete signal path, when paired with this excellent true '47-style capsule, allows it to obtain a very similar tone to the classic '47 microphone, but at a much lower price tag. The WA-47jr utilizes the same k47-style capsule found in our flagship WA-47 tube condenser microphone. The WA-47jr circuit uses high-quality Toshiba FETs, Wima film capacitors, and Panasonic electrolytic capacitors. The circuit is modernized and more simple than the classic '47 tube microphone, but the components and circuitry are top-notch, and have a sound quality and tone that punches far above anything heard in this price range.

Warm is very excited to bring this '47-style FET condenser microphone and classic tone to the market at such an affordable price. We feel confident that you will enjoy a lifetime of beautiful recordings w/the WA-47jr!

Key Features:

• The WA-47 jr includes all the features that deliver a complete and professional recording experience at an unthinkable price.
• The WA-47 JR uses a true reproduction of the K47-style capsule in the original 47-tube mic. Perfect for adding an instant vintage vibe to any recording.
• Three polar patterns (cardioid, omni, and figure-8) give you a variety of options to choose how you want to capture stereo sounds and reject noise.
• A selectable -10dB pad allows the 47 jr to handle SPLs up to 157dBs making capturing loud sources easy.
• The switchable 70 Hz high pass filter makes it easy to remove unruly bass noise from sources before you even hit record.

Technical Specifications:

Product Description & External Specs

• Type: Large-Diaphragm FET Transformerless Condenser Microphone.
• Polar Patterns: Cardioid, Figure-8, & Omnidirectional.
• Features:
• • 10 dB Pad.
  • 70 Hz High-Pass Filter.
• Weight: 1.1 lbs.
• Dimensions:
• • Diameter: 52 mm.
  • Length: 210 mm.

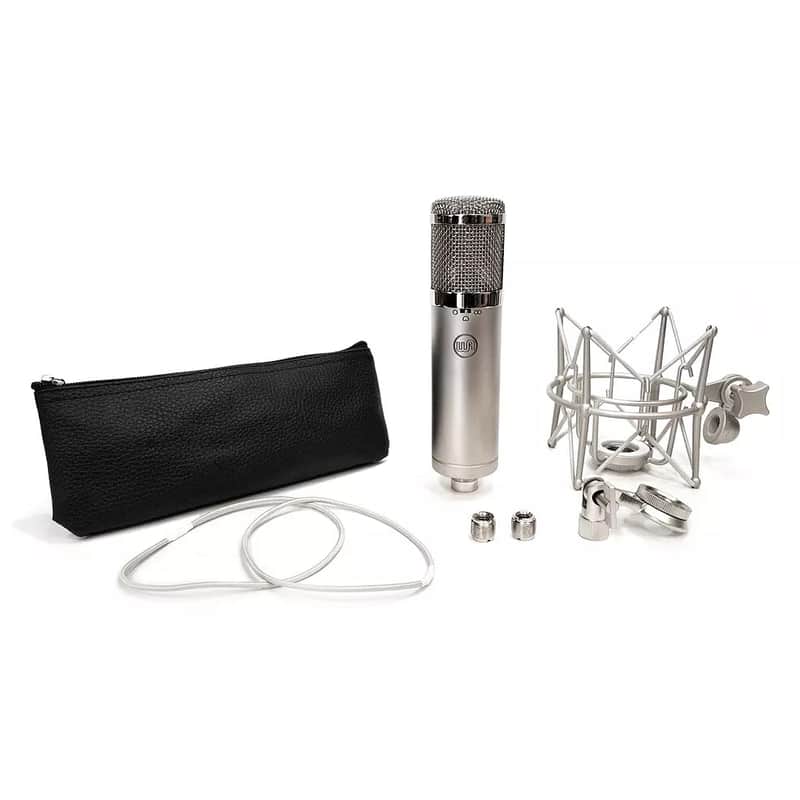

• Includes:
• • Shockmount.
  • Hard Mount.
  • Zipper Storage Pouch.

Components & Internal Specs

• Capsule: Gold-Sputtered, Large-Diaphragm, Single-Backplate, K47-Style Capsule.
• • Makeup: Dual Large Diaphragm, Single-Backplate, 6 Microns NOS Mylar (PET Film).
• Signal Path: Fully Discrete.
• • Components: Toshiba FETs, Wima Film Capacitors, Panasonic Electrolytic Capacitors.

Performance Specs

• Self-Noise: 9dBA.
• Dynamic Range: 138dBA.
• Maximum SPL: 147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB).
• Frequency Range: 20 Hz ~ 20 kHz.
• Sensitivity: 10mV/Pa or -40dB.
• Output Impedance: 100 ohms.
• Rated Load Impedance: ≥1k ohms.
• Equivalent Noise: 10dBA (IEC651).
