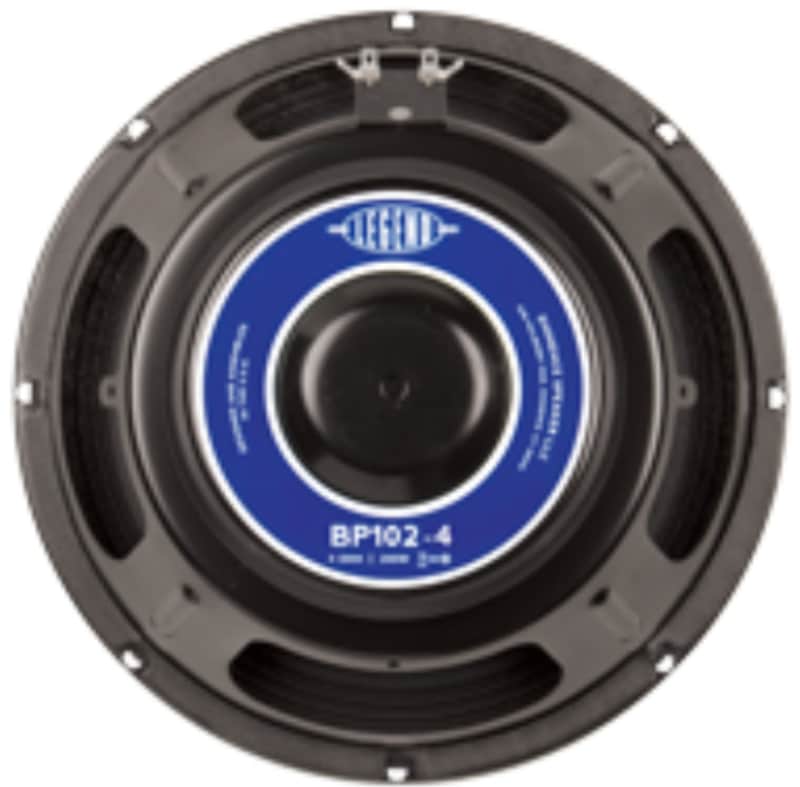

EMINENCE LEGEND BP102-4
Recommended for professional bass guitar applications in a sealed or vented enclosure. Works well in single or multi driver designs.
SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 4 Ω
Power Rating*
Program Power 400 W
Watts 200 W
Resonance 35 Hz
Usable Frequency Range 40 Hz - 2 kHz
Sensitivity* 91.8 dB
Magnet Weight 38 oz.
Gap Height 0.312", 7.9 mm
Voice Coil Diameter 2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 35 Hz
DC Resistance (Re) 5.59 Ω
Coil Inductance (Le) 0.83m H
Mechanical Q (Qms) 3.18
Electromagnetic Q (Qes) 0.47
Total Q (Qts) 0.43
Compliance Equivalent Volume (Vas) 91.2 liters / 3.22 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 207.4 cc
Mechanical Compliance of Suspension (Cms) 0.54 mm/N
BL Product (BL) 10 T-M
Diaphragm Mass Inc. Airload (MMs) 38 grams
Efficiency Bandwidth Product (EBP) 75
Maximum Linear Excursion (Xmax) 6.2 mm
Surface Area of Cone (Sd) 334.5 cm2
Maximum Mechanical Limit (Xlim) 10 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.041 cu.ft. / 1.17 liters
Overall Diameter 10.08", 256 mm
Baffle Hole Diameter 9.18", 233.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 9.66", 245.4mm
Depth 4.25", 108 mm
Net Weight 8.9 lbs, 4.04 kg
Shipping Weight 9.1 lbs, 4.13 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Non-vented core
Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Zurette dust cap
