A 10-inch powerhouse passive speaker designed to deliver an unprecedented combination of sound quality, portability and durability! Electro Voice designs the unpowered ELX series with all-new custom components, tested to levels far exceeding the industry norm, ensuring the speakers are capable of handling real-world abuse and professional applications.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.

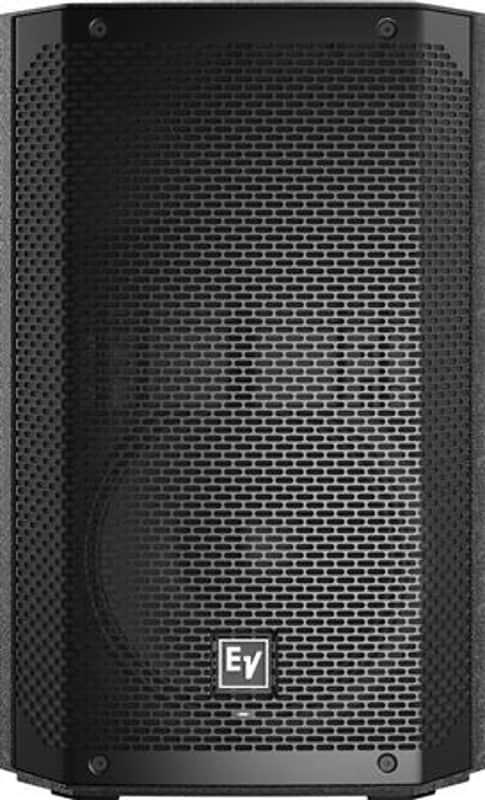

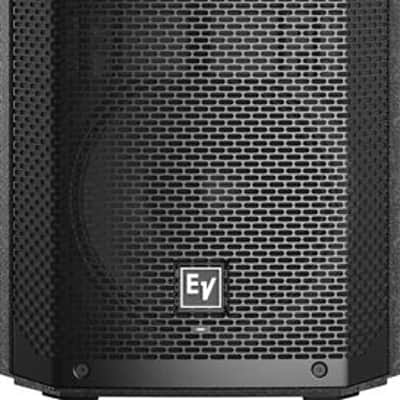

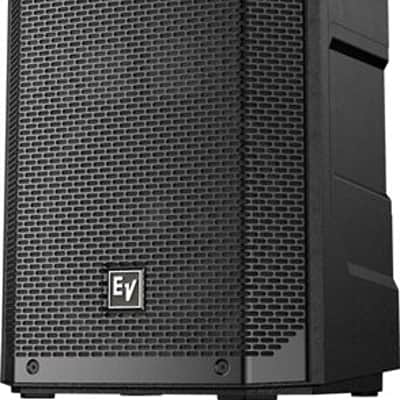

Electro Voice ELX200-10 10" 2-Way Full Range Passive Loudspeaker Features

• 1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
• 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
• High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
• Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.

CALIFORNIA PROPOSITION 65 WARNING
WARNING: Cancer and Reproductive Harm -

Electro Voice ELX200-10 10" 2-Way Full Range Passive Speaker Specifications

• Coverage (Nominal -6 dB) H: 90°
• Coverage (Nominal -6 dB) V: 60°
• Crossover Frequency: 2 kHz
• Depth: 319mm (12.56")
• Enclosure Material: Polypropylene Composite
• Family: ELX200
• Frequency Range (-10 dB): 49 Hz - 22 kHz
• Frequency Response (-3 dB): 65 Hz - 20 kHz
• Grille: 18 AWG steel with powdercoat
• Height: 531mm (20.91")
• HF Transducer: DH-1C 1-inch titanium compression driver
• LF Transducer: EVS-10M 254 mm (10 in)
• Max. SPL/1m (calc): 127dB
• Minimum Impedance: 7.2Ω
• Nominal Impedance: 8Ω
• Power Handling (Continuous / Peak): 300 W/1200W
• Power Rating: 1200W
• Recommended High-Pass Frequency: 55Hz
• Speaker Type: Full-Range
• Suspension: (3) M10 suspension points
• Weight Net: 13.4kg (29.54 lbs)
• Width: 330mm (12.99")
• Woofer Size: 10inch
