Overview

The Audiofuse Studio gives your studio sessions the clarity and character you deserve. Offering tons of digital I/O, four DiscretePRO preamps, eight analog inputs, dual monitor outputs, bluetooth and a 72db gain range, this interface punches well above its weight. It is built with convenience in mind, with a front panel giving you access to mute/dim/mono switches, talkback, cue mixing, and dual headphone outputs. Connect all of your gear with it’s thorough output array consisting of four additional line outputs, optical I/O, inserts for outboard gear, word clock, S/PIDF, MIDI breakouts, and a conveniently placed USB hub. All Audiofuse units also come with Arturia’s celebrated Creative Suite, packed full of software from the “You’ll Actually Use” series. Audiofuse Studio brings the professional experience given in interface units well above its price range, at a consumer-friendly package.

Features

• 18 inputs, 20 outputs channels
• 4 mic/instrument/line preamps with DiscretePRO® technology
• 4 additional line inputs, with inputs 5-6 commutable to Phono
• 4 analog inserts on channel 1-4
• Bluetooth audio receiver supporting aptX© and AAC©
• 2 pairs of speaker analog outputs on balanced TRS Jack
• 2 independent stereo headphones outputs, on both 6.35 and 3.5mm TRS.
• 2 independent analog line outputs with reamp capability (instrument level output)
• Complete monitoring section with individual level control for speakers and phones
• Direct monitoring ultra-low latency internal mixers
• 8 digital ADAT inputs/outputs up to 96kHz
• S/PDIF inputs/outputs or Word clock input, output/thru on Cinch RCA
• DiscretePRO® Individual audio performance certificate delivered with each unit.
• 24-bit latest generation AD/DA converters at up to 192kHz sampling rate.
• USB-C interface compatible with PC & Mac, fully USB 2.0 compatible
• Comes with AudioFuse Creative Suite
• Robust metal desktop chassis

Specifications

 Line Inputs
• Input impedance: 20kΩ (symmetric), 10kΩ (asymmetric)

• Maximum input level: +24dBu

• Gain range: 45 dB typical

• Pad mode: -20dB

• Frequency response 20Hz to 20kHz: < +/- 0,01 dB

• Dynamic range: 119dB (A-weighted)

• THD+N: -112dB (A-weighted)

 Instrument Input
• Input impedance: 1.1MΩ asymmetric

• Maximum input level: +18dBu

• Gain range: from 45 dB typical

• Pad mode: -20dB

• Frequency response 20Hz to 20kHz: < +/- 0,01 dB

• Dynamic range: 119dB (A-weighted)

• THD+N: -112dB (A-weighted)

 Line Aux
• Input impedance: 20kΩ (symmetric), 10kΩ (asymmetric)

• Maximum input level: +24dBu

• Pad mode: -20dB

• Frequency response 20Hz to 20kHz: < +/- 0,02 dB

• Dynamic range: 120dB (A-weighted)

• THD+N: -108dB (A-weighted)

 Microphone Preamps
• Input impedance: 3.4kΩ

• Maximum input level: +11dBu

• Gain range: 71 dB typical

• Boost mode : +10dB ; Pad mode : -20dB

• Frequency response 20Hz to 20kHz: < +/- 0,09 dB

• Equivalent Input Noise (EIN): -129dBu typical (un-weighted)

• Dynamic range: 118dB (A-weighted)

• THD+N: -107dB (A-weighted)

 Speakers / Aux Outputs
• Output impedance: 240Ω bal, 120Ω unbal

• Maximum output level: +24dBu

• Frequency response 20Hz to 20kHz: < +/- 0,07 dB

• Dynamic range: 121dB (A-weighted)

• THD+N: -108dB (A-weighted)

 Phones
• designed for phones impedance from 32 Ohms to 600 Ohms

• Maximum output level: +13dBu on 6.35mm TRS, +10dBu on 3.5mm TRS

• Dynamic range: 103dB (A-weighted)

• THD+N: -92dB (A-weighted)

What's in the box?

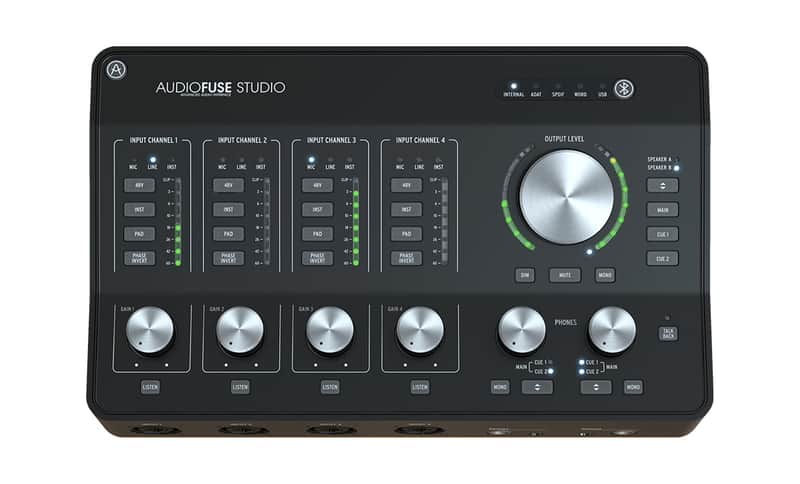

• AudioFuse Studio unit
• Power supply
• 2x MIDI jack adaptor
• USB-C to USB-A cable (1.5m)
• USB-C to USB-C cable (1.5m)
• DiscretePro® Achievement Certificate
