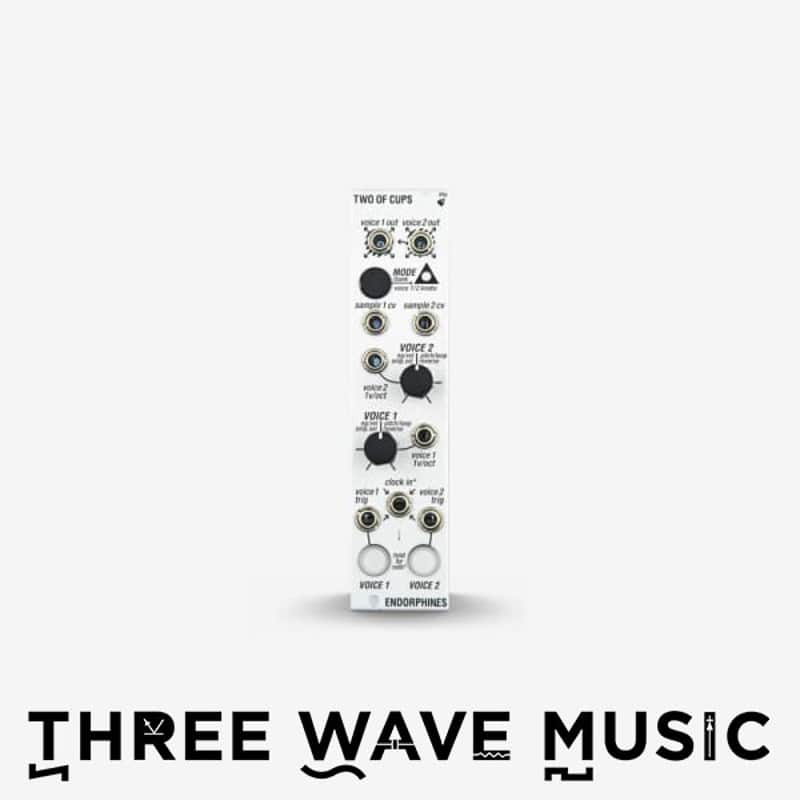

2 VOICE INTUITIVE SAMPLE PLAYER WITH 8 BANKS EACH CONTAINING 24 SAMPLES

TWO OF CUPS – include samples in your live set. Two of them at once with a wide variety of CV-able features. Simply load one of 8 (!) banks each containing up to 24 samples for each of the two voices and off you go (unlock this feature with firmware 1.1!). Needless to say you can change the samples under CV and if needed – you can set up the trigger delay for each voice because that boy plays its sample so instantly and sample accurate with the with lightning speed. Breathe life and fresh sounds into your setup with a small footprint (6 HP) you would normally need to carry around a gazillion of gear to reproduce the sonic capabilities. Alternatively, use it the boring way and simply play drum one-shots off it.

• 2 voice intuitive sample player each containing 24 samples and organized in 8 banks
• Zero-latency sample playback — directly from micro SD card
• Factory sound-bank by Julia Bondar
• On-board envelope generator decay control, pitch control with 1V/Oct input and sample selection control with meta cv input
• Arbitrary sample rate: 8, 16 and 24 bit samples with 12 bit output bitrate

  Power consumption:

• 125 mA +12V
• 20 mA -12V
• 0 mA 5VDimensions:

• 6 HP
• 30 mm deep

FAQ:

Which sample length / size module accepts? Module will play any WAV file bitrate: 8, 16 and 24 bits with each file size up to 4 gb.

Rainbow cable pinout. Side red/brown pair of pins always correspond to -12V similar as with typical gray ribbon cable.
