Manufacturer’s Warranty Does Not Apply

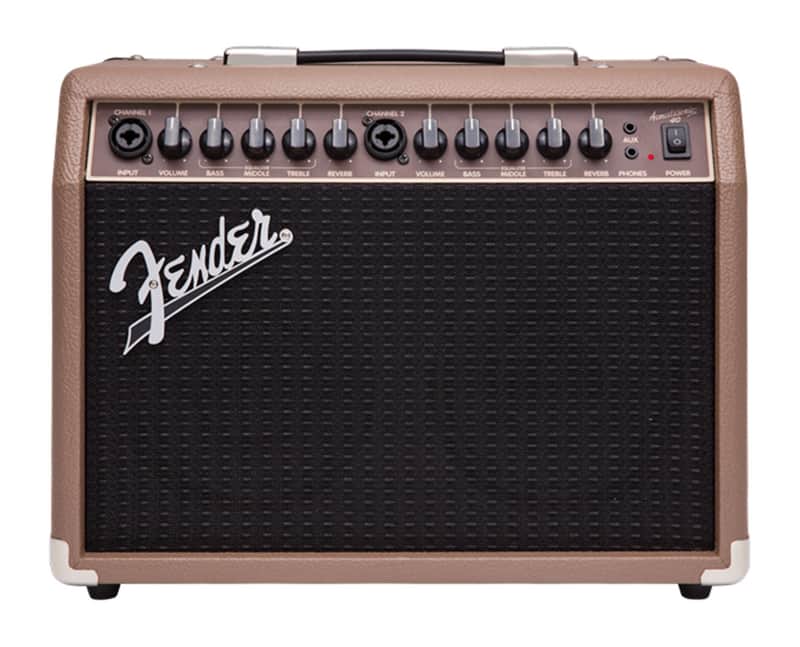

The Acoustasonic 40 amplifier offers portable amplification for acoustic-electric guitar and microphone. It's a simple, flexible "grab and go" solution for a variety of musical performance and basic public address applications, and it can also be used as an onstage monitor when combined with a PA system.

6” Speaker With “Whizzer” Cone

For more effective high-frequency response, the Acoustasonic 40 bears the unusual distinction of being the only Fender guitar amp to use a “whizzer” cone—a small supplementary speaker cone attached to the voice coil of the amps 6” speaker.

Built-In Reverb

For extra ambience, the Acoustasonic 40’s instrument channel features built-in reverb.

Xlr And ¼” Inputs

The Acoustasonic 40’s convenient dual front-panel inputs include a standard ¼” jack for an instrument and an XLR input for a microphone.

Features

Electronics

• Controls : Channel 1 : Volume, Bass, Mid, Treble, Reverb; Channel 2 : Volume, Bass, Mid, Treble, Reverb
• Channels : Two
• Inputs : Two - (XLR / 1/4" combined)
• Effects : Reverb
• Line Out : One - (XLR with Ground Lift)

Hardware

• Cabinet Material : 5-Ply 5/8" Lightweight Plywood
• Amplifier Jewel : Red LED
• Handle : Molded Plastic Strap with Nickel-Plated Caps

Speakers

• Speakers : Two - 6.5" Special Design Full-Range with Whizzer Cones
• Total Impedance : 8 ohms

Measurements

• Amp Height : 1" (27.9 cm)
• Amp Width : 15" (38 cm)
