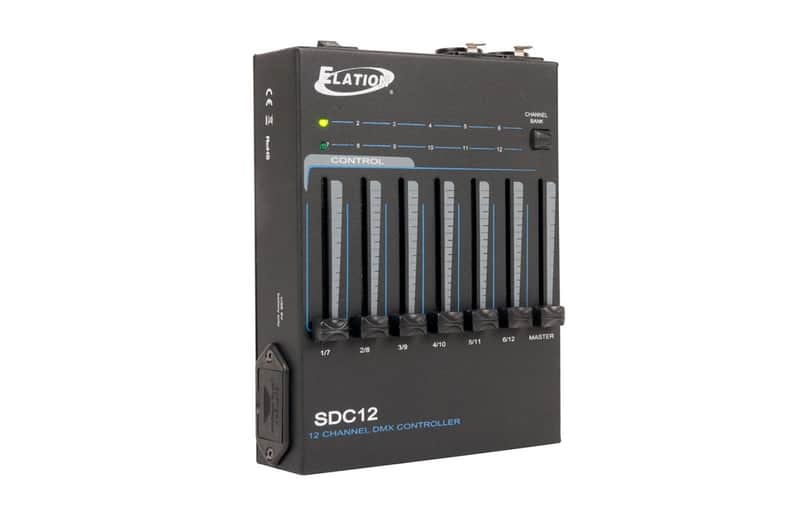

A basic 12-Channel portable DMX control surface, the SDC12™ from Elation Pro Lighting includes 6 faders that control DMX channels 1-6 or 7-12, both 3-Pin as well as 5-Pin XLR DMX outputs, DIP switches allowing a starting DMX channel to be set, a master dimmer fader, and a on/off switch. It operates via an external 12VDC power supply (included) or a 9VDC battery (not included). It's a great handheld device when used for product demos or manual control of LED or conventional fixtures. It can also be wall-mounted for permanent installation.

Elation SDC12 Includes:

• SDC12 unit
• 12V Power Supply

Elation SDC12 Features:

• 12-Channel DMX Controller
• Portable Handheld or Wall-Mountable
• DIP Switches to Set Starting DMX Channel
• Master Dimmer Fader
• On/Off Switch
• 3-pin and 5-Pin XLR Outputs
• Great for product demos or manual control of LED and conventional fixtures
• Operates with 9VDC battery or included power supply
• CE Approved
• RoHs Compliant

Elation SDC12 Specifications:

• Control/Connections:
  • DIP Switches to Set Starting DMX Channel
  • 3-pin and 5-pin DMX Outputs
  • On/Off Switch
  • LED Channel Bank Indicator
  • DC 12V Power Supply Input
• Physical:
  • Dimensions (L x W x H): 7.5” x 5.9” x 1.6” (191 x 149 x 41mm)
  • Weight: 2.0 lbs. (0.9kg)
• Electrical:
  • DC 12V 500mA min OR 9V Battery (sold separately)
• Approvals/Ratings:
  • CE Approved
  • RoHs Compliant
