Eliminate the frustration of pairing modules, choosing a case, and hoping everything sounds good together. Engineered as an affordable, easy-to-use analog instrument, this, is the Jake’s Custom Shop Modular Zero. Five switches, twenty LEDs, forty-two control knobs and seventy-seven patch points spread over eleven fully configurable modules. Each designed with music in mind; to do more than the ambient.


The Clock and Divider provides nine binary divisions for creating melodies of different velocity and duration, bass lines, musical changes and even drum patterns to your liking. Patch in two Voltage Controlled Oscillators (rated at MIDI standard 1 volt-per-octave), sequence with an 8-step Control Voltage Sequencer, modulate with a Dual Low Frequency Oscillator and affix the Control Voltage Filter. Weep, bleep, whoop and whub from two ADSR Envelope Generators and mix up to five signals before ever leaving the Jake’s Custom Shop Modular Zero. Stop dreaming and start patching.


Uncompromising Design:

- Easy-to-use: 13 modules designed with intuitive controls and interfaces.

- Expandable: 8 open power connections ready for additional modules.

- Affordable: Retail value of each module, the case, and patch cables is over $1300

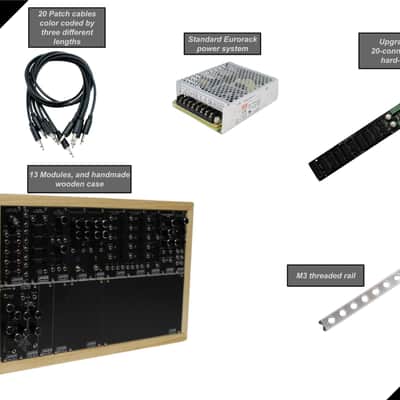

Ready to play system:

- Twenty Patch cables color coded by three different lengths.

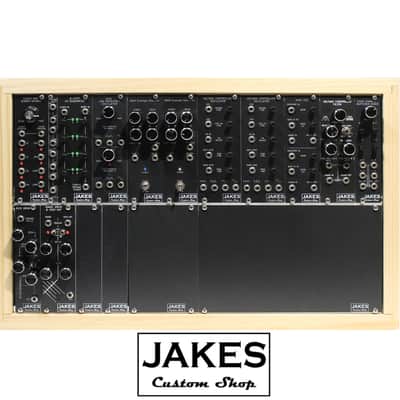

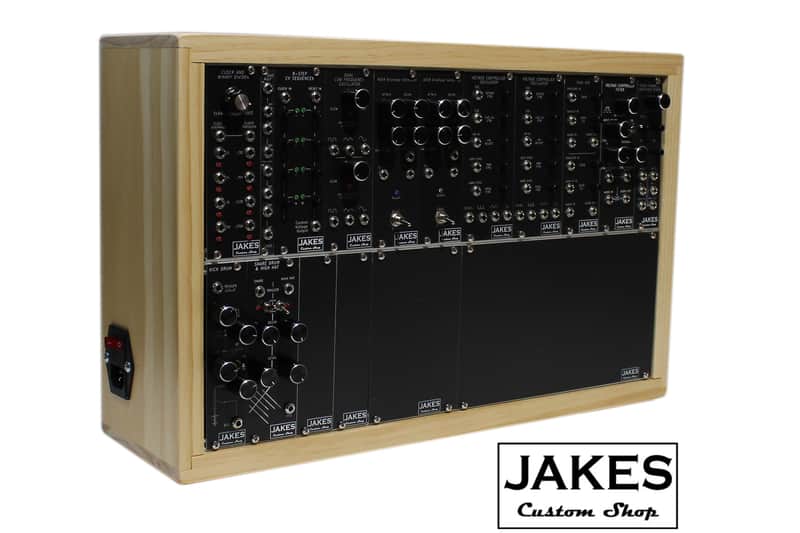

- Fully assembled as shown in the photos.

- Hand-made craftsman style Eurorack case from Grade-A White Pine.

- M3 threaded rail.

- Standard Eurorack power system.

- Customization available, ask about custom configurations and alternative case styles!

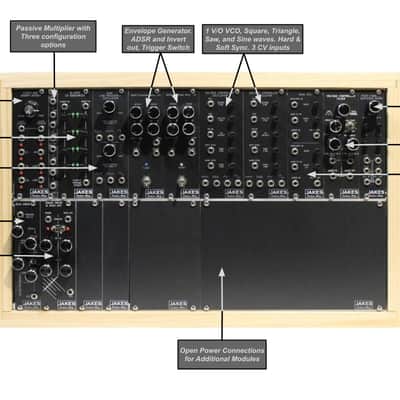

Modules:

- Clock and Divider: Square wave LFO and binary divider.

- Passive Multiplier: Three configuration options (Mult 3&3, Mult 3&3 or 6, and Mult 7).

- 8-Step Control Voltage Sequencer: Baby-8 style sequencing, 2-9 steps.

- Dual Low Frequency Oscillator: Square, Triangle and Sinewave outputs. 1/120 to 24 Hz.

- 2x Voltage Controlled Oscillator: 1 V/O, Square, Triangle, Saw, and Sine waves. Hard & Soft Sync. 3 CV inputs .

- 2x ADSR Envelope Generators: Slow & Fast modes, ADSR and Invert out, trigger switch.

- Dual Voltage Controlled Amplifier: Envelope and gain inputs.

- Voltage Controlled Filter: Low and High-pass modes, resonant filter, 2 CV inputs.

- Four-Channel Buffered Mixer: 4 buffered inputs with volume control + AUX input and master volume.

- Drum and Hi-Hat: An 808-inpired snare and hi-hat voice. Decay and level control w/ a gate invert switch.

- Kick Drum: An 808 style kick drum with Pitch, Decay, Tone, a Clipper Switch and Level control.

- Bottom row has 4 blank panels of various sizes for easy reconfiguration.

- Includes upgraded 20-connection hard-bus



YouTube user guide:

Further details, audio samples and datasheets can be found on our Website:


Modular Grid:



All Jake's Custom Shop items carry a 100% satisfaction guarantee. If for any reason you don't like it I will personally cover your return shipping and fully refund your order; never any questions asked!
