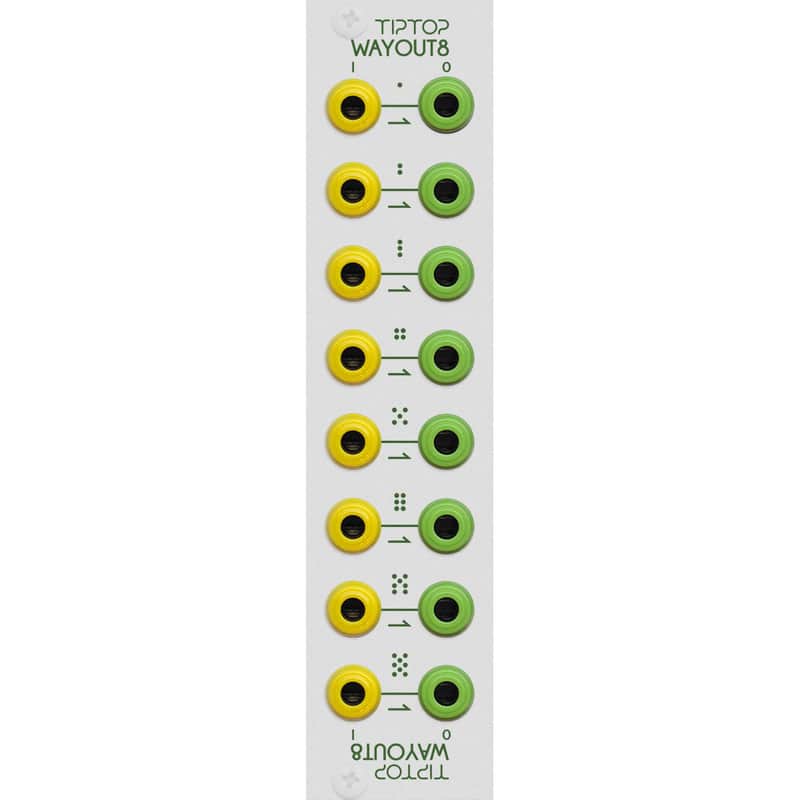

Tiptop Audio Wayout8 Patchbay Module

Tiptop Audio Wayout8 is a patchbay module for eurorack systems used to group your DAW inputs and outputs, or to manage signals going from one case to another.

Wayout8 is grounded, meaning that even if nothing is plugged into the inputs your outputs are still grounded and will not pick up noise. The module is made so it can rotated 180˚ and mounted either of two ways, with outputs on the left or right, whichever is the most ergonomic placement in your case. All eight channels are passive so they do not modify your signals and can be used for audio and CV/gate. No power is required

Patch points

• 8 × 1/8" inputs: audio or CV/gate input

• 8 × 1/8" outputs: audio or CV/gate grounded output


Physical specifications

• Size: 6hp

• Module depth: 10mm

• Power usage: no power required
