Direct Amp and IR Power for Performance, Recording, and Practice
Introducing the IR-200, the most advanced compact amp/IR solution available. This powerhouse stomp brings next-level performance to direct sound for guitar and bass, offering exceptional audio quality, premium amps, deep sound shaping, and instant sound recall with 128 memories. Over 150 hi-res cab impulse responses from BOSS and Celestion Digital are on board, plus 128 locations for loading your own mono or stereo IRs.

The IR-200 turns your pedalboard into a self-contained direct sound solution for live playing, studio recording, and practice. It delivers massive amp tones from a small footprint and smoothly integrates with all your favorite pedals, including stereo mod, delay, and reverb effects. And once you craft your tones, you can send them to a stage amp, house PA, computer recording system, or headphones—or all at once.

More

Guitar Cabinet IRs Created By BOSS
Each cabinet has six different mic types with two distance options.

• 1 x 12” BOSS Original (Open Back)
• 2 x 12” JC-120 Roland JC-120 (Open Back)
• 2 x 12” Jensen C-12K Fender Twin Reverb (Open Back)
• 2 x 12” Celestion G12M Greenback VOX AC-30 (Open Back)
• 4 x 10” Jensen P10R Fender Bassman (Open Back)
• 4 x 12” Celestion G12M Greenback Marshall 1960B (Closed Back)
• 4 x 12” Celestion G12T-75 Marshall 1960B (Closed Back)
• 4 x 12” Celestion G12M Greenback Bogner Ubercab (Closed Back)

Guitar Amp Types

• NATURAL BOSS original amp type with balanced clean-to-driven sound
• JC-120 Model of a Roland JC-120
• TWIN COMBO Model of a Fender Twin Reverb
• DIAMOND AMP Model of a VOX AC-30
• TWEED COMBO Model of a ’59 Fender Bassman
• X-HI GAIN BOSS Original amp type that uses MDP (Multi-Dimensional Processing) technology to produce a high-gain sound with wide range and clarity
• BRITISH STACK Model of a Marshall 1959 Super Lead
• BGR UB METAL Model of the high-gain channel of a Bogner Uberschall

Features

• Pedal-based amp simulator and impulse response loader with premium sound and features
• 32-bit AD/DA, 32-bit floating-point processing, and 96 kHz sampling rate
• 128 user IR slots with support for mono and stereo WAV files, up to 32-bit floating point/96 kHz resolution, and 200 or 500 ms length
• Large onboard preset cab IR library with 144 BOSS IRs and 10 Celestion Digital IRs
• Class-leading IR reproduction with two custom DSPs
• Eight guitar and three bass amp types to cover a wide range of styles
• Run up to two IRs at once in mono or stereo
• 128 memories for storing user setups
• Two EQs in each memory plus two global EQs, all with selectable parametric or graphic operation
• Room, Studio, and Hall ambience types
• Effects loop with mono send and mono/stereo return, with selectable pre-cab or post-EQ positioning
• Dedicated software for loading cab IRs and backing up memories
• Versatile USB audio interface for recording and playback with music software on Mac and Windows computers and iOS devices
• Deep external control support via footswitches, an expression pedal, and TRS MIDI

Specs

• Sampling frequency 96 kHz
• AD Conversion

• 32 bits + AF method
• * AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
• DA Conversion 32 bits

• Processing 32-bit floating point
• Memory 128
• IR cabinet data format Mono/stereo, Maximum 500 ms, 44.1/48/96 kHz, 16 bits linear/24 bits linear/32-bit floating point
• Preset IR cabinet 154
• User IR cabinet slot 128
• Normal input level

• INPUT, RETURN: -10 dBu
• AUX IN: -20 dBu
• Maximum input level

• INPUT, RETURN: +7dBu
• AUX IN: 0 dBu
• Input impedance

• INPUT, RETURN: 1 M ohm
• AUX IN: 27 k ohms
• Normal output level OUTPUT (A/MONO, B), SEND, PHONES: -10 dBu

• Maximum output level OUTPUT (A/MONO, B), SEND, PHONES: +7dBu
• Output impedance

• OUTPUT (A/MONO, B), SEND: 1k ohm
• PHONES: 44 ohms
• Recommended load impedance

• OUTPUT (A/MONO, B), SEND: 10 k ohms or greater
• PHONES: 44 ohms or greater
• Controls

• DOWN switch, UP switch
• MENU button, EXIT button
• MEMORY knob, AMP knob, CABINET knob, AMBIENCE knob
• GAIN knob, LEVEL knob, BASS knob, MIDDLE knob, TREBLE knob
• Display Graphic LCD (132 x 32 dots, backlit LCD)

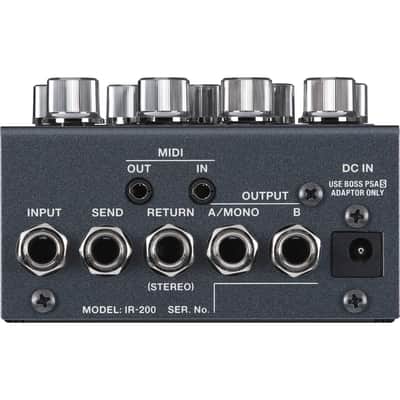

• Connectors

• INPUT, SEND, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
• RETURN jack: 1/4-inch TRS phone type
• AUX IN: Stereo miniature phone type
• CTL 1, 2/EXP jack: 1/4-inch TRS phone type
• MIDI (IN, OUT) connectors: Stereo miniature phone type
• USB COMPUTER port: USB Micro-B type
• DC IN jack
• Power supply AC adaptor

• Current draw 335 mA
• Accessories

• AC adaptor
• Owner's Manual
• Leaflet "USING THE UNIT SAFELY"
• Rubber foot x 4
• Options (sold separately)

• Footswitch: FS-5U
• Dual footswitch: : FS-6, FS-7
• Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
• TRS/MIDI cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
• SIZE AND WEIGHT

• Width 101 mm, 4 inches
• Depth 138 mm, 5-7/16 inches
• Height 63 mm, 2-1/2 inches
• Height(including rubber feet) 65 mm, 2-9/16 inches
• Weight (excluding AC adaptor) 660 g, 1 lb 8 oz
