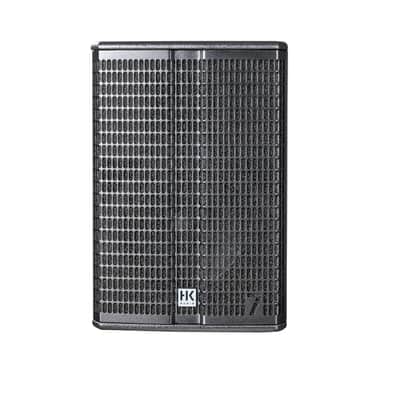

HK Audio L7-110XA | 2000W 10" 2-Way Powered Loudspeaker. New with Full Warranty!

HK AUDIO LINEAR 7 110 XA | 2000W 10" 2-way Active Loudspeaker
Brand New with Full Manufacturer's Warranty!

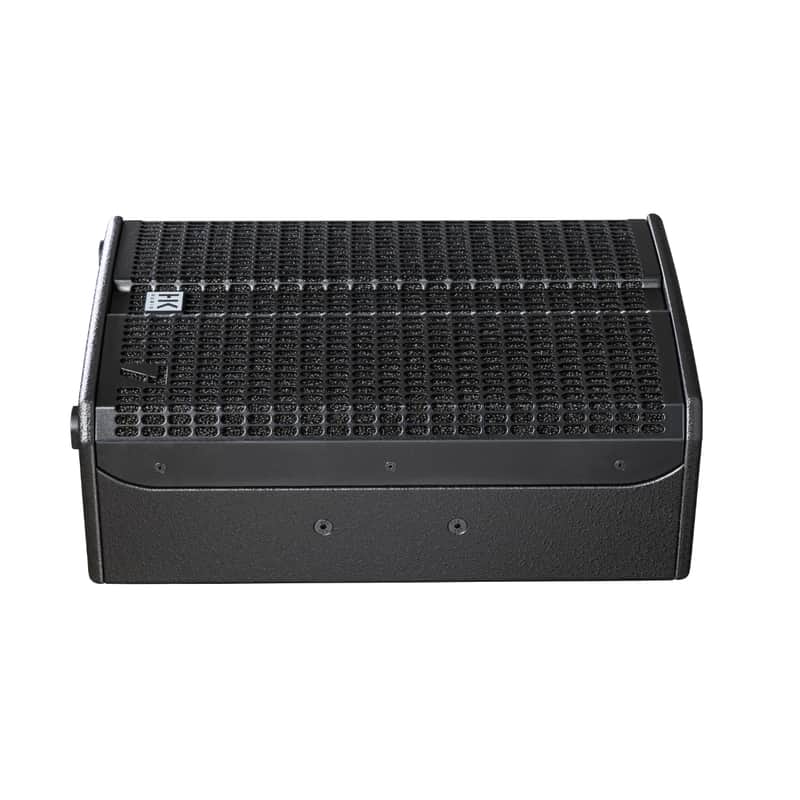

Thanks to its cabinet shape with integrated 30° slant, the LINEAR 7 110 XA network-compatible multifunctional speaker is also suitable for use as a transverse stage monitor. It offers a preset optimised for use as a monitor, which compensates for the overemphasis of the low frequencies caused by contact with the ground in transverse operation.

Description
LINEAR 7 110 XA ? Active multifunctional speaker
The LINEAR 7 110 XA is an active multifunctional speaker with modern DSP technology and FIR filtering. Thanks to powerful amplifiers and efficient speakers, this results in high-resolution reproduction with extremely low distortion. Even at high sound pressure levels, a balanced listening experience without signs of fatigue is guaranteed.

The heart of the LINEAR 7 110 XA is the integrated DSP, which can be controlled via the free HK Audio DSP CONTROL software. This gives you access to a 10-band EQ, limiter, mute, invert, volume, high-pass filter, low-pass filter and advanced group functions. Even without a computer, you can access the DSP functions ? by simply selecting one of the four presets directly on the speaker. You can choose between Flat, Monitor and Low Cut. A preset saved in advance can be stored in position 4, making it possible to call it up without a computer connection.

The LINEAR 7 110 XA 10? speaker is equipped with an 80° x 60° rotatable wide dispersion horn for homogeneous near-field dispersion. It can be rigged either via its rigging points (steel cables or chains in combination with the AP-8 attachment point) or with the TB-28N tilt bracket.

Features

• Active 10-inch loudspeaker
• Effective maximum sound pressure level thanks to high-performance loudspeakers, drivers and muscular 2000 watts Pascal Class-D amplifiers
• State-of-the-art DSP platform with integrated fully parametric 10-band EQ, delay and limiting for uncompromised individual configuration
• Latest networking technology to control Theo DSP of every LINEAR 7 cabinet from that one central FOH spot
• Additional DSP-Out with the full range of features of the powerful DSP that lets you operate a non-network-compatible active speaker
• Direct access to easily selectable presets on the speaker for use as a monitor or system speaker
• Ultra-precise coverage of frequency spectrum thanks to minimized distortion and optimized directivity
• High resolution 96 kHz AD/DA converters, FIR-filtering, low latency
• Multi-purpose housing for use as an FOH or monitor speaker
• User friendly rigging and mounting options
• Professional powerCON and etherCON connections

Techn. Data
L7 110 XA
Max. SPL @ 10% THD
126 dB half space (70 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD
129 dB half space
Frequency response +/-3 dB
70 Hz – 19 kHz
Frequency response -10 dB
65 Hz – 20 kHz
Power amp output (peak power)
2000 W
Amp type
Class D - biamped
Low-/mid speaker
1x 10", 2.5" voice coil
HF driver
1", 1.4" voice coil
Horn directivity
80° x 60° CD horn, rotatable
Active crossover frequency
2 kHz FIR X-over with 60 dB/oct.
Maximum input level
+20 dBu
Analog inputs
1x XLR combo balanced
Analog thru
1x XLR balanced
DSP Out
1x XLR
Network port
Ethercon RJ45, 1x In, 1x Thru
Filter presets
Flat, Monitor, Low Cut, Remote
Remote software
DSP CONTROL (Windows, Mac OS)
DSP functions
Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate
96 kHz
System latency
Less than 2.6 ms
Mains connector
1x Powercon NAC3 In, 100–240 V
Power consuption
1 A / 100–240 V nominal according to EN 62368-1
Angels up (Monitor angle)
30°
Pole mount
DuoTilt 3°/7°
Rigging points
5x M8 (AP-8)
Carrying handles
2x SingleGrip
Housing
Hybrid (birch multiplex/MDF)
Finish
Black acrylic enamel
Front grille
2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)
36 x 54 x 31 cm 14-11/64 x 21-1/4 x 12-13/64"
Weight
17 kg / 37.5 lbs
