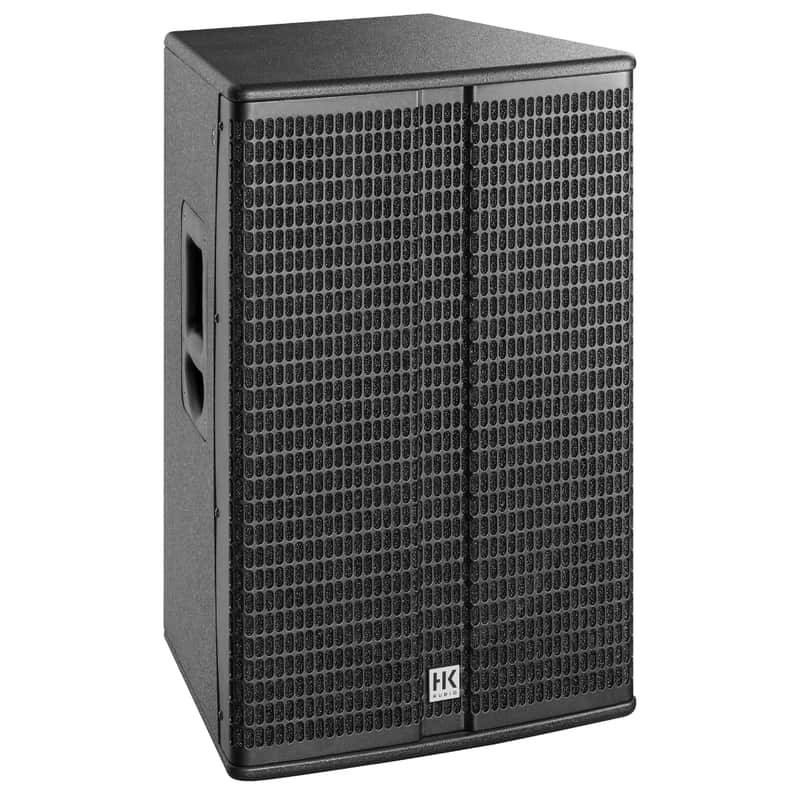

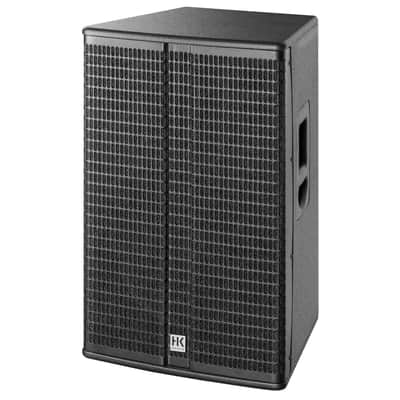

HK Audio L3-115FA | Series 3 15" 2-way 1200W Active Loudspeaker

HK AUDIO Linear 3 115FA 15" 2-way 1200W Active Loudspeaker
Brand New with Full Manufacturer's Warranty!

Compared to the 12″ version, the active 15″/1″ speaker offers even more depth with the same features. Especially in standalone use, the LINEAR 3 115 FA impresses with powerful bass and a balanced, crystal-clear sound across the entire frequency spectrum.

Description
LINEAR 3 115 FA – Active full-range speaker
The LINEAR 3 115 FA speaker ensures impressively simple acoustic control by the user as well as outstanding full-range characteristics with significantly enhanced depth compared to the LINEAR 3 112 FA. Thanks to its high-performance power amplifier with an output of 1,200 watts, high sound pressure levels can be achieved, even in larger venues.

Equipped with a 1″ tweeter and a 15″ woofer, the LINEAR 3 115 FA covers a wide frequency range. Thanks to integrated DSP technology, you as a user can deploy this active speaker for a whole host of different events with the help of the four different EQ presets – Bass Boost, Flat (LF), Flat (HMF) and Contour.

LINEAR 3 has been developed for bands, musicians and DJs who are regularly on the road with their own PA and no sound engineer and who are looking for a powerful sound without a large amount of additional effort. The LINEAR 3 115 FA meets precisely this challenge.

Features

• Active, powerful full-range top
• High amplifier output of 1,200 W class D bi-amped
• Balanced, high-resolution sound
• High sound pressure of 135 dB SPL for sound applications with up to 500 people
• Advanced DSP technology for high-end sound results, even without specialist PA knowledge
• “Intelligent Multiband Limiter” ensures consistent sound characteristics at every volume level
• FIR separation for transparent mid-frequencies
• Four different EQ presets for flexible applications
• No fatigue during listening thanks to low distortion factor
• Simple acoustic control of the system, even from the stage
• Accurate PA alignment, reducing reflections from walls or ceilings
• Perfect combination options with the LINEAR SUB L SUB 1500 A and L SUB 1800 A subwoofers

Techn. Data
L3 115 FA
Max. SPL @ 10% THD
126 dB half space (58 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD
135 dB half space
Frequency response +/-3 dB
58 Hz – 16 kHz
Frequency response -10 dB
49 Hz – 18 kHz
Power amp output (peak power)
1200 W
Preamp
DSP (Time Alignment)
Amp type
Class D - biamped
Active protective circuits
Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters
Low-/mid speaker
1x 15", 2.5" voice coil
HF driver
1", 1" voice coil
Horn directivity
90° x 55° CD horn
Active crossover frequency
2.3 kHz FIR X-over with 72 dB/oct.
Analog inputs
2x XLR combo balanced, 1x Stereo RCA
Analog outputs
2x XLR Thru balanced, 1x XLR Mix Out
Input sensitivity
+4 dBu @ Gain center-notched
Sensitivity switch
Line/Mic Input A
Filter presets
2 EQ switches: Bass Boost/Flat & Flat/Contour
Mains connector
1x IEC socket with V-Lock cord retainer
Power consumption
3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065

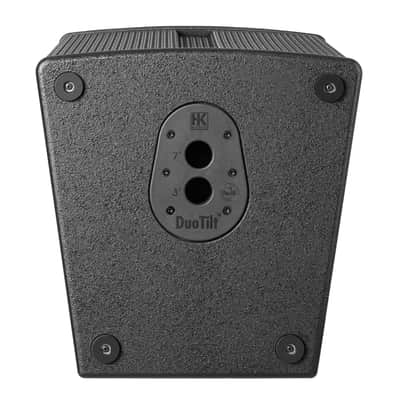

Pole mount
DuoTilt 3°/7°
Rigging points
4x M8 (AP-8)
Carrying handles
2x MultiGrip
Housing
16 mm MDF
Finish
Black acrylic enamel

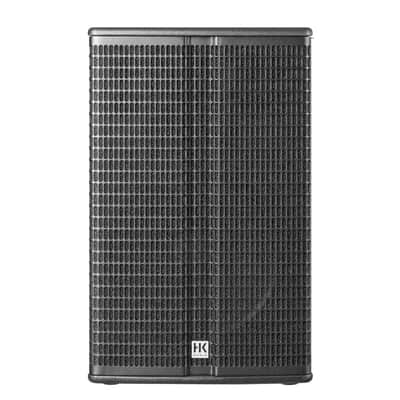

Front grille
2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)
44 x 69 x 44.5 cm 17-21/64 x 27-11/64 x 17-33/64"
Weight
27.9 kg / 61.5 lbs
