Rockville D12 5000w Peak/1400w RMS Power Amplifier 2 Channel Class D Pro/DJ Amp

Features:

• Rockville D12 5000w Peak/1400w RMS Class D 2 Channel Power Amplifier Pro/DJ Amp

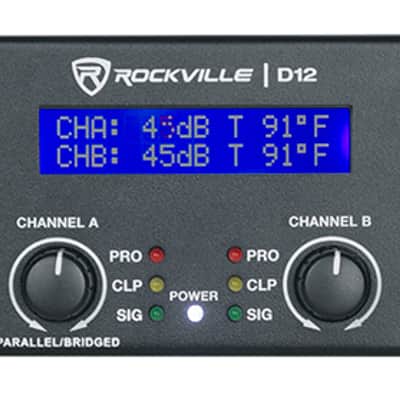

• LCD displays volume in dB per channel and operating temperature

• 1.5U rack space

• Built in limiter protects your speakers from distortion and clipping

• Bridged mode allows you to combine both channels power into one channel for use with a subwoofer

• Stereo mode is perfect for (2) speakers or (4) speakers in a left and right configuration

• Parallel mode gives you dual mono output signal which is perfect for monitor use when you want all sounds coming out of each speaker instead of a left/right configuration

• Built in crossover switch (bypass, 80 Hz, 160 Hz) allows amp to be used with full range PA speakers, or Subwoofer(s)

• Channel A & B Clipping Led Indicators

• Channel A & B Separate Level Controls

• Power, signal, clipping, and protection LED indicators on front of amp

• Heavy duty rack mount ears with handles

• Built-in variable high velocity quiet cooling fans

• Maximum headroom for 4-ohm and 8-ohm Speakers

• Level controls for precise setting and matching of sensitivity

• Computer controlled IC protection circuitry against speaker short circuit, thermal over load, DC over load

• User serviceable fuse (12A, 250V)

• Frequency Response (bandwidth @ 2Vrms out, @ -3.0dB) 10 Hz – 30 Khz

• THD + Noise @ 1Khz full power: <0.11%

• Input Impedance: 10K Ohm Balanced

• Input signal voltage: 638mV – 2.7V

• Input sensitivity: 0.7v

• Damping factor: ( 100Hz, 10w, 4 ohms): 43.6

• Damping factor: (1Khz @ 8 ohm): >400:1

• Effective damping factor (100Hz, 10w, 4 Ohms) 1.08

• Output impedance at speaker terminals: 0.0918 Ohms

• Frequency Response vs THD+N (worst case, across normal bandwidth 1W) 0.05%

• Signal to Noise Ratio: > 100dB

• SLEW RATE (input filter limited) : 40v/uS Power Requirements: 100V-240V / 50-60Hz

• Weight: 9.7 lbs

• Dimensions: 19.09 x 9 x 2.56 inch


Power Ratings:

RMS Power Output:

• Stereo 8 Ohm: 2 x 500W

• Stereo 4 Ohm: 2 x 700W

• Bridged 8 Ohm: 1 x 1400W


Peak Power Output:

• Stereo 4 Ohm: 2 x 2500W Max

• Bridged 8 Ohm: 1 x 5000W Max


​​Terminals:

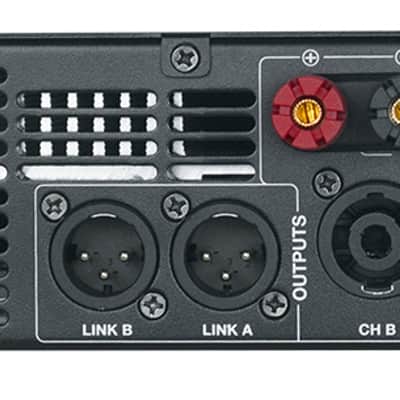

Input Terminals:

• Combo jack (XLR and ¼”) A & B inputs


Output Terminals:

• Banana binding post speaker output

• Speak on output
• XLR output to connect another amplifier or powered sub

​​
