Clear-Com RS702 2-Channel Analog Intercom Belt Pack

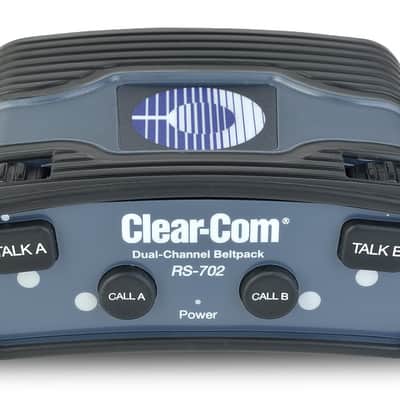

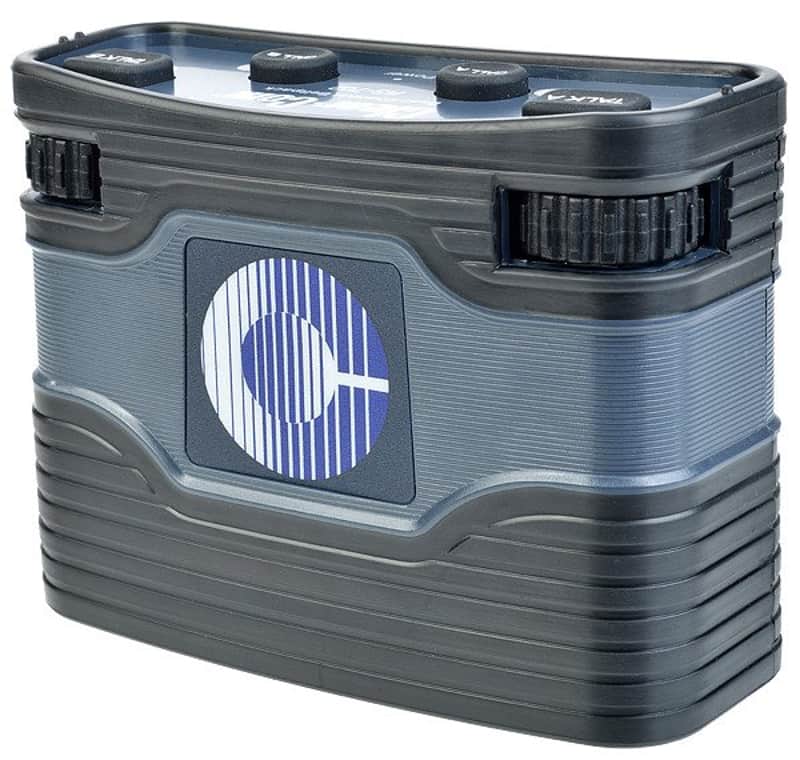

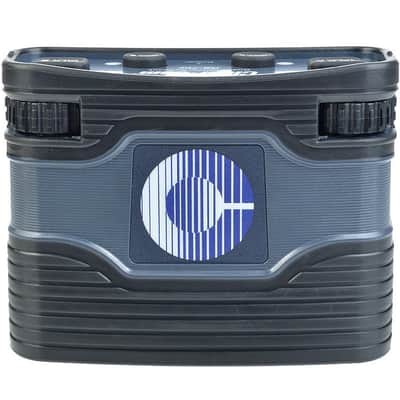

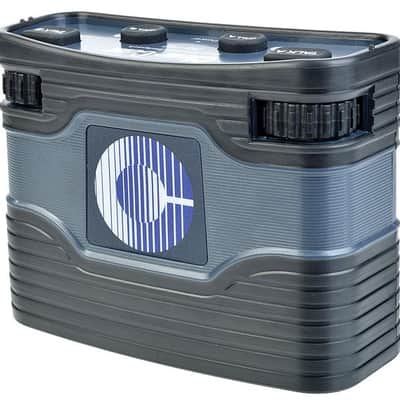

Rugged, light-weight and ergonomically designed Clear-Com's RS-702 is a two-channel analog beltpack that can carry power and audio through the XLR-6 line connector. Each beltpack combines high headroom, low-noise audio and shaped frequency contour (the “Clear-Com Sound”) to deliver clear audio.

WIth an improved design, the RS-702 comes in a reliable casing with a retro-design connection to the previous RS-500 Series beltpacks. A belt clip allows a variety of ways to use the beltpack; users can clip it to a belt or lanyard, or users can mount the belt clip to a wall, pole or desk for fixed installations.

Compatible with all Encore partyline products, as well as the PL-Pro line and other partyline systems via Encore interfaces, the RS-702 incorporates LEDs on the top of the beltpack for visual indication of incoming and outgoing call signaling. A mic preamp enables intelligible voice communication for every volume level. Recessed rotary volume control, Talk and Call keys guard against accidental activation. The RS-702 has low operating current to allow for more beltpacks in a daisy-chain. Additionally, a thumbwheel level adjustment is available for Program In.

• Visual LED indicators on top of keypad
• Tactile buttons for Call and Talk
• Recessed rotary controls for Volume with end stops
• Concealed, programmable DIP switches
• XLR-6 line connectors for 2-channel + program audio
• Fully compatible with current and previous Clear-Com analog partyline systems
• Low operating current for more beltpack daisy-chaining
• Rugged and strong construction
• “Clear-Com Sound” for intelligible audio

• NOTE: dBu is an absolute measurement. 0 dBu is referenced to 0.775 volts RMS
• Microphone Pre-Amplifier:
  • Mic to Line (without limiter acting)
  • Frequency Response: 280 – 15k Hz ± 3dB
  • Microphone output to line – Audio Level (-50dBm Electret input): -9dBm
  • Microphone output to line – Distortion:< 0.1%
  • Microphone output to line – Signal to Noise: >65dB
  • Clear-Com Sound: Yes
• Headphone Amplifier:
  • Frequency Response – Line to Headphone: 150 – 20k Hz ± 3dB
  • Headphone input from line – Audio Level (-9dBm Electret input): 7dBm
  • Headphone input from line – Distortion:< 0.5%
  • Headphone input from line – Signal to Noise: >50dB
  • Earphone to Mic – Crosstalk: >80dB
  • Sidetone – Adjustment Range (-80db mic input): >45dB
• Keypad Indicators:
  • Power: Green LED
  • Talk A and B: Green LED
  • Call A and B: Orange LED
• Connectors:
  • Intercom Line:
  • (2) 6-pin XLR–M–F
  • Ch. 1 2-Wire
• Intercom Channel:
  • Pin 1: Common
  • Pin 2: PL Power (+28VDC)
  • Pin 3: PL Ch-B
  • Pin 4: PL Ch-A
  • Pin 5: Program Audio
  • Pin 6: Program Audio
• Headset: 4-pin XLR–M
• Headset Connector:
  • Pin 1: Mic – (Mic Common)
  • Pin 2: Mic +
  • Pin 3: Spkr-
  • Pin 4: Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin 1)
  • Program Audio Input: XLR-6, Pin 5 and Pin 6
• Power:
  • Input Voltage Range: 12-30 VDC
  • Input Current (Idle):< =25mA
  • Input Current (Max):< =40mA
• Call Voltage: 16.5 VDC
• Minimum Voltage Needed: 3.3V
• Environmental: 32˚F – 158˚F (0˚C – 70˚C)
• Relative Humidity: 0 – 90%, non-condensing
• Dimensions (HxWxD): 3.4 x 4.5 x 1.7 in (86 x 114 x 43 mm)
• Weight: 10.5 oz (0.30 kg)
