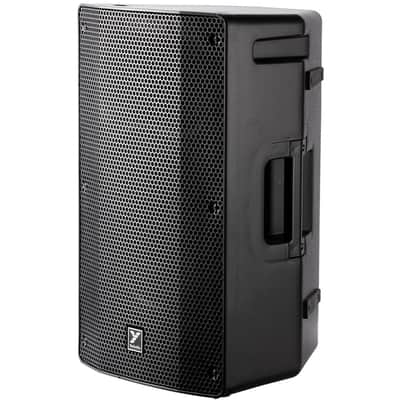

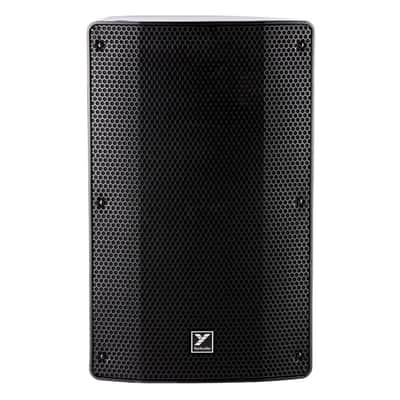

Yorkville YXL12P
12-inch / 1-inch - 1000 Watts

Introducing Yorkville Sound's new line of high quality & affordable powered cabinets. The YXL Series is poised to uphold Yorkville's reputation for great sound, reliability and durability

Features

• 1000 Watts (Peak) 500 Watts (Program)
• 12-inch woofer with 2-inch voice coil
• 3 Channels plus Master level
• 1-inch compression driver
• 90° x 60° HF dispersion
• Polypropelene cabinet construction
• Integrated 3 channel mixer with 2X 1/4", 2X XLR and 1/8" inputs
• Bluetooth streaming
• 3 performance modes (Concert, Club, Monitor)

The YXL cabinets use a single driver and 90 x 60 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.

Designed as an all-purpose speaker with the Musician & DJ in mind, each YXL cabinet features 3 channels. The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.

Specifications
System Type: Active Loudspeaker
Active or Passive: Active
Power Rating (Watts): 500 Watts Program (1000 Watts Peak)
Max SPL (dB): 126dB Peak
Frequency Response (Hz +/- 3dB): 47 - 16k (Hz +/-3dB)
Dispersion (°H x °V) 90 x 40
Crossover Frequency (Hz): 1.6kHz
HF Horn: Integrated into Baffle
LF Driver(s): 12-inch (2-inch voice coil)
LF Power Rating(Watts): 450 Watts Program (900 Watts Peak)
HF Power Amplifier (Watts): 50
HF Amplifier Type Class: A/B
LF Amplifier Type Class: D
Cooling Scheme: Speed controlled fan
Power Cable: Yes
Power Switch: Yes
Inputs: 2 x XLR, 2 x 1/4", 1/8", Bluetooth and Main in (XLR)
Level Contols: x3 Channels + Master:
EQ Controls Push button select, Concert, Club, Monitor
Limiter: Multiband excursion, RMS, rail
Other Controls / Features: 100 Hz HP with Sub, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming
Feet:   Rubber
Bar Handles: 1 x Side / 1 x Back
Flying Hardware : 2 (Top), 1 (Pullback)
Optional Flying Hardware: Yes
Enclosure Materials: Polypropelene, Metal grille
Baffle Material: Polypropylene
Grille: Powder Coated Steel with Grille Cloth
Other Details: Rubber feet on bottom and side with the monitor Wedge
Dimensions: (DWH xbackW, inches) 13.5 x 14 x 23
Dimensions: (DWH xbackW, cm) 34 x 35.5 x 58.5
Weight: (lbs/kg) 35 / 15.9

Specifications subject to change without notice
