PRECISE TONAL CONTROL

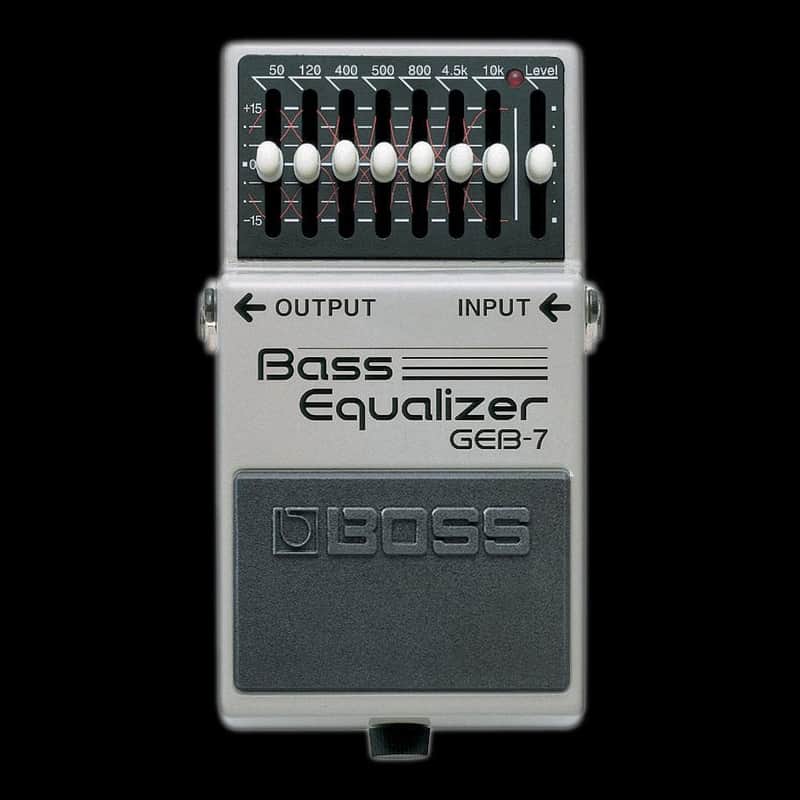

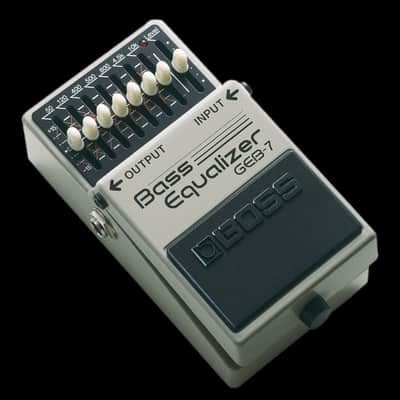

The GEB-7 is a seven-band equalizer created specifically for the frequency range of the electric bass. Since the frequency range extends down to 50Hz, the GEB-7 is also great for adjusting depth and bottom end of an upright bass with pickups.

• 50Hz to 10kHz frequency range specifically designed for bass
• Full range response, even for five- and six-string basses
• Can be used as a "boost" or "cut" pedal using the level control knob
• Great for electric-acoustic bass applications
• AC adaptor or 9V battery operation
• BOSS five-year warranty

SPECIFICATIONS

• Nominal Input Level-20 dBu
• Input Impedance1 M ohm
• Nominal Output Level-20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohm or greater
• Bypass: Buffered bypass
• Controls: Level Control knob, Equalizer Control knob, 50, 120, 400, 500, 800, 4.5 k, 10 kHz, Pedal switch
• Indicator: CHECK indicator (Serves also as battery check indicator)
• Connectors: INPUT jack: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, DC IN jack
• Power Supply: Carbon-zinc battery (9 V, 6F22), Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
• Current Draw: 30 mA
• Expected battery life under continuous use: Carbon: Approx. 8.5 hours, Alkaline: Approx. 18.5 hours, *These figures will vary depending on the actual conditions of use.
