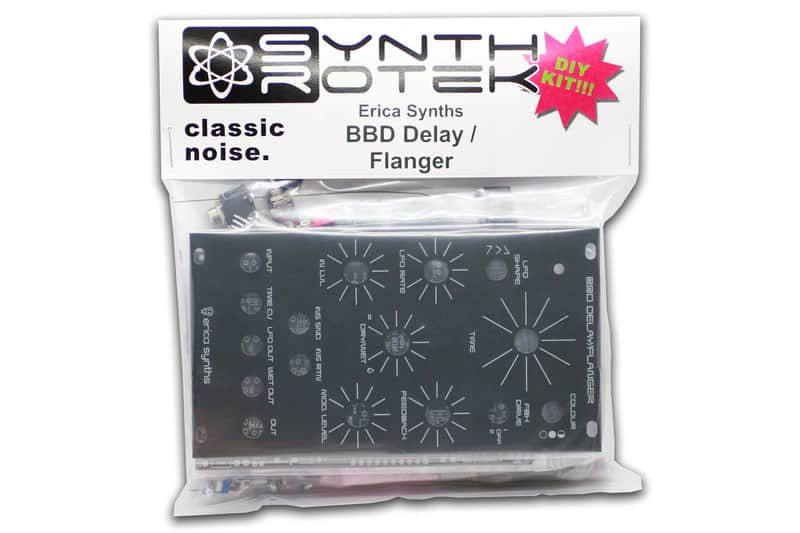

The Kit version of the BBD Delay/Flanger contains all the components needed for the module, including ICs, knobs, power cable, etc.
Erica Synths DIY BBD Delay/Flanger is one of the few BBD (bucket brigade delay) chip based DIY modules. The module is designed to provide variety of effects from flanger to delays with adjustable flavours and plenty of modulation possibilities.
Features:
- 4092 stage BBD
- Up to 300ms delay time
- Delay time CV input with an attenuator
- Feedback Send-Return circuit for external effects
- Built in LFO with dedicated output
- Two customizable feedback overdrive flavours
- LP filter on the output with selectable cutoff
- Dedicated Wet output
The module has built in LFO with selectable shape and dedicated LFO output, delay time CV input with an attenuator, selectable feedback overdrive and feedback Send-Return connectors, so you can apply external effects on feedback signal. Maximums feedback settings put the module in self oscillation, so it can be used as an experimental sound source, as well.
Max delay time: 300ms
Audio output amplitude: 10V ptp
CV amplitude (full span): -5 - +5V
Panel width: 14HP
Module depth: 45mm
Power consumption: 30mA @+12V 20mA @-12V
