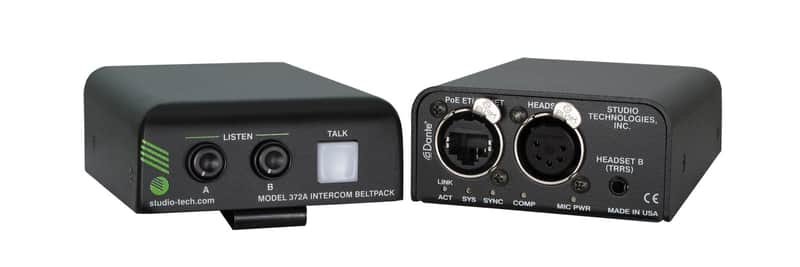

Studio Technologies MODEL-372A Intercom Beltpack with Dante

Combining a single channel of talk and two channels of listen capabilities, Studio Technologies' Model 372A Intercom Beltpack is a highly compact user-worn device that starts off with the features you'll find onboard traditional analog party-line (PL) intercom user devices, then adds a range of newer capabilities, as well as the advanced performance and versatility that Dante® audio-over-Ethernet brings. Over a standard IP network, multiple Model 372A units and other compatible Studio Technologies' beltpack devices can be used to create party-line intercom applications with assistance from an external Dante-enabled audio matrix such as the Studio Technologies' Model 5422 Dante Intercom Audio Engine (sold separately). Alternately and additionally, these can be used "point-to-point" or interfaced with Dante-compatible matrix intercom systems too.

Key Features

• Dante audio-over-Ethernet technology
• One talk and two listen channels
• Supports dynamic and electret microphones
• 5-pin female XLR headset connector
• 3.5mm 4-conductor TRRS headset connector
• Call receive and display function
• Excellent audio quality
• Uses STcontroller software app for configuration
• AES67 and Dante Domain Manager™ (DDM) support
• Power-over-Ethernet (PoE) powered

Specifications

• General:
  • Audio Channels: 1 talk, 2 listen
• Microphone Input:
  • Compatibility: dynamic or electret (low-voltage DC-powered) microphones
  • Type: unbalanced
  • Electret Microphone Power: 3.3 volts DC via 2.00 k resistor, selectable on/off
  • Impedance: 1 k ohms, nominal, microphone power off; 690 ohms, nominal, microphone power on
  • Gain: 24, 30, 36, 42, or 48 dB, selectable, ref. –60 dBu input to Dante output (–20 dBFS nominal)
  • Frequency Response: 40 Hz to 20 kHz, –3 dB
  • Distortion (THD+N):
  • Dynamic Range: 91 dB of dynamic range
• Connectors:
  • Headset A: 5-pin female XLR
  • Headset B: 4-conductor (TRRS) 3.5 mm jack, per Japanese standard JEITA/EIAJ RC-5325A
  • Ethernet: Neutrik NE8FBH etherCON RJ45 receptacle
  • USB: type A receptacle (located inside Model 372A's enclosure and used only for application firmware updates)
• Configuration: requires Studio Technologies' STcontroller software application, version 2.01.00 and later
• Power Source:
  • Power-over-Ethernet (PoE): class 1 (very low power, ≤ 3.84 watts) per IEEE® 802.3af
• Network Audio Technology:
  • Type: Dante audio-over-Ethernet
  • AES67-2013 Support: yes
  • Dante Domain Manager (DDM) Support: yes
  • Bit Depth: up to 24
  • Sample Rate: 48 kHz
  • Number of Transmitter (Output) Channels: 1
  • Number of Receiver (Input) Channels: 2
  • Dante Audio Flows: 4; 2 transmitter, 2 receiver
• Network Interface:
  • Type: 100BASE-TX, twisted-pair Ethernet, Power-over-Ethernet (PoE) supported
  • Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s "GigE" Ethernet not supported)
  • Compatibility – Headset A: single- or dual-ear broadcast-style with dynamic or electret (low-voltage DC-powered) microphone: pin 1 mic common; pin 2 mic; pin 3 phones common; pin 4 phones left; pin 5 phones right
  • Compatibility – Headset B: CTIA™/AHJ configuration (typically uses electret powered mic): tip phones left; ring 1 phones right; ring 2 common; sleeve mic
• Note: Specifications and further information can be found within the items located under the "Documentation" tab above.
