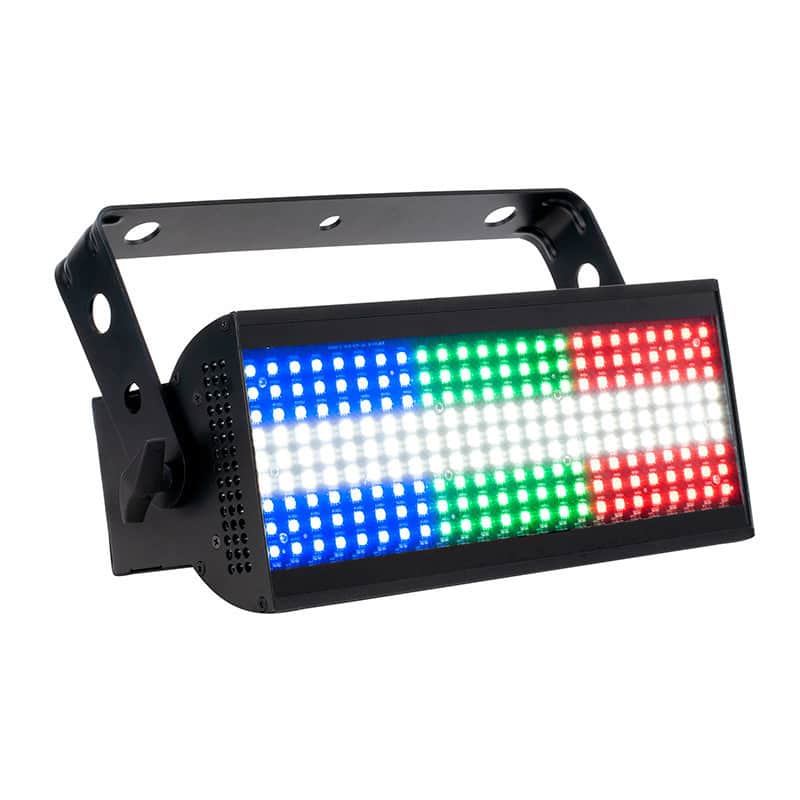

ADJ JOLT-300 144 x .5W CW/RGB Strobe Effect Light

The Jolt 300 from ADJ features a central strip of 144 x 0.5W white SMD LEDs surrounded on both sides by 144 x 0.5W RGB SMD LEDs providing lighting designers with the creative potential of generating both strikingly bright white strobe effects and vibrant color washes from the same compact fixture. This innovative multi-use strobe / eye candy fixture has massive light output specifically designed for large stages, nightclubs, live events and touring. Navigate the Jolt 300's built-in features, such as dimming modes, dimming speed, programs, color macros, LED refresh rate, gamma settings and DMX channel modes, from the LCD display with a 4-button menu system. The rear panel has conveniently located connections with 3-pin and 5-pin DMX input connections along with a twist locking power input to receive power and on the other side of the rear panel are the 3-pin and 5-pin DMX outs and the locking power out connections, allowing pass through power and data to another Jolt 300 fixture. There is also a USB input that allows a fast and convenient way to update firmware. Plus, a scissor yoke and an omega bracket come with the fixture, so the it can be attached to a clamp and hung on truss.

Applications

• Concert tours
• Event productions
• Nightclubs
• Permanent installation

Includes

• 1x Jolt 300
• 1x Omega Bracket
• 1x Scissor yoke
• 1x power locking power cable

Features

• 3 Section RGB control
• 64 built-in Color Macros
• 32 built-in programs
• 6 preset dim modes
• Compatible with ADJ’s UC IR wireless remote
• Strobe, shutter & pulse control

Specifications

• Light Source:
  • 144x 1.5W RGB SMD LEDs + 144x .5W Cool White SMD LEDs
  • Beam Angle: 120-degree
  • Color Temperature (White LED’s only): 6000k
  • Average LED Life: 50,000 Hours
• Control:
  • Control Protocol: DMX
  • 6 DMX Modes: 4, 8, 10, 10a, 12,15, 18 and 18a
  • Dim Modes:
    • Standard
    • Stage
    • TV
    • Architectural
    • Theatre
    • Stage 2
  • Dim Speed control: 0.1~10 Seconds
  • Dimming: 0-100%
  • Adjustable LED Refresh Rates: 900~25kHz
  • Adjustable Gamma Settings: 1.0-2.8
  • Wired Digital Communication Network
  • Display: LCD display with 4-button touch menu
• Connections:
  • Data: 3-pin & 5-pin DMX In/Out
  • Twist locking power In/Out to daisy chain power
  • USB port to update firmware
• Electrical:
  • 100-240V 50Hz/60Hz (Auto Sensing)
  • Max Power Consumption: 226W
• General:
  • Dimensions (LxWxH): 16” x 7” x 5.25” (405 x 175 x 130 mm)
  • Weight: 8.5 lbs (3.8 kg)
